ME-IO 37,6 B 10U TBUS 7035 - Mounting base housing 2202663 Phoenix Contact
Price:
variable
MOQ:
1
Delivery Time:
3-5DAYS
Brand:
Phoenix Contact
Product Description
ME-IO 37,6 B 10U TBUS 7035 - Mounting base housing
2202663

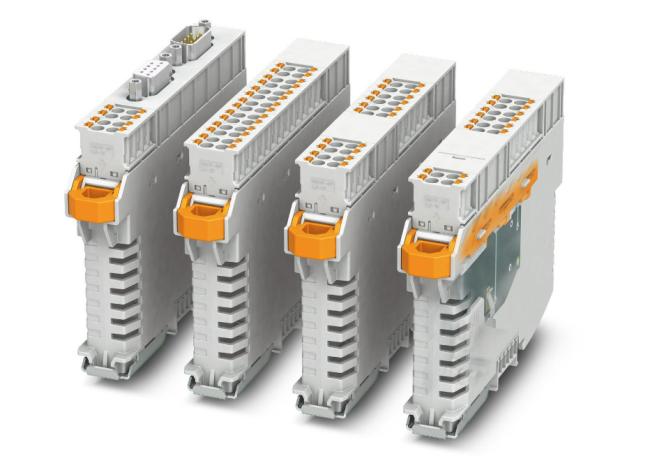

The housings of the ME-IO product family are suitable for applications with a limited amount of installation space and high function requirements. Thanks to the modular design, electronics modules such as controllers and I/O modules can be easily assembled. You can create devices with up to 54 positions per 18.8 mm overall width. The lower housing part offers space for the PCB assembly. The lower housing parts are available in four overall widths. The lower housing part can be combined with various housing covers and connectors. The lower housing part is subdivided into 9 or 10 units (1 unit = 11 mm). The connectors correspond to a unit and have a Push-in connection. As a counter-part to the connectors, there are headers in 2 or 3 unit versions that are soldered onto the PCB. The housing covers in 2 to 10 unit versions are especially suited for installing connection systems.
DIN rail housing, Lower housing part with metal foot catch, with vents, width: 37.89 mm, height: 120.6 mm, depth: 64.3 mm, color: light grey (7035), cross connection: DIN rail connector (optional), number of positions cross connector: 5 or 8
| Description and Part Type | Part number | ||||||
| Mounting base housing 37, 6mm 10 units ME-IO ME-IO 37,6B 10U TBUS | 2202663 | ||||||
| Housing cover 37,6mm 10U ME-IO ME-IO 37,6C 10U | 2202665 | ||||||
| Filler plug ME-IO ME-IO 18,8F-LR | 2202635 | ||||||
| DIN rail bus connector, number of positions - 8, ME-IO TBUS8-18,8-PPPPPPSS | 2202403 | ||||||
| Functional ground contact ME BUS FE CONTACT | 2278076 | ||||||
| Fiber optic HS LC-H-D2/R2XC1-2.54 | 2202316 | ||||||
| PCB heder HSCH 2,5-2U/8 | 2201789 | ||||||
| Mounting base housing 18, 8mm 10 units ME-IO ME-IO 18, 8B 10U TBUS | 2202506 | ||||||
| Locking HSC LR 3U KIT | 2201797 | ||||||
| Coding profile CP-DMC 1, 5 NAT | 1790647 | ||||||
| Printed-circuit board connector HSCP-SP 2,5-1U4 | 2201780 | ||||||
| Housing cover ME-IO 18, 8 C 8U | 2202634 | ||||||
| PCB heder HSCH 1,5-2U/12 | 2202233 | ||||||
| Printed-circuit board connector HSCP-SP 1,5-1U6 | 2202234 | ||||||
| Housing cover ME-IO 18, 8 C 2U MC18 | 2202581 | ||||||
| Marking lid ME-IO 18,8 MC 8U TRANS | 2202627 | ||||||
| Locking HSC LR 9U KIT | 2201794 | ||||||
| Fiber optic HS LC-H-D2/R4XC4-2.54 | 2202532 | ||||||
| Housing cover ME-IO 18,8 C 4U | 2201802 | ||||||
| Housing cover ME-IO 18,8 C 10U | 2202630 | ||||||
| Product type | Enclosure bottom part |
| Max. number of positions | 96 (pitch: 3.45 mm) |
| 64 (pitch: 5 mm) | |
| Type | Lower housing part with metal foot catch |
| Housing type | DIN rail housing |
| Ventilation openings present | yes |
| Housing series | ME-IO |
