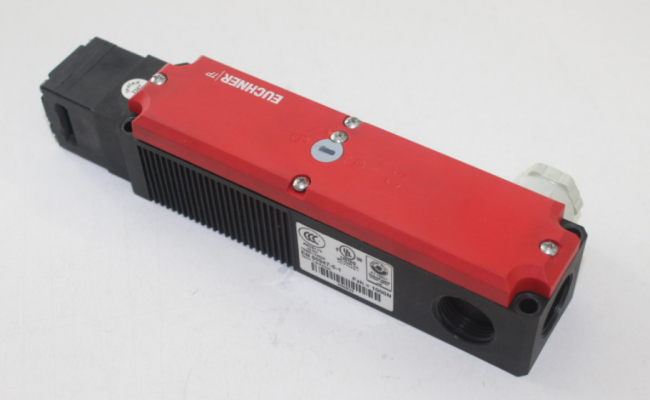

Euchner TP4-2131A024M Safety Switch TP With Door Monitoring Contact 084145
Euchner TP4-2131A024M Safety Switch TP With Door Monitoring Contact 084145
Features
• Auxiliary release on the front
• With door monitoring contact
• Increased horizontal overtravel
Solenoid operating voltage
AC/DC 24 V +10%, -15%
Guard locking type
TP4 Open-circuit current principle, guard locking by applying voltage to the guard locking solenoid. Release by spring force.
Switching element
2131 Slow-action switching contact 2 NC + 1 NO + 1 NC (door monitoring contact)
Auxiliary release
Is used for releasing the guard locking with the aid of a tool. To protect against tampering, the auxiliary release is sealed with sealing lacquer.
Mechanical figures and environment
| Housing material | Reinforced thermoplastic |
| Ground | |
| Net | 0,5 kg |
| Ambient temperature | -20 ... 55 °C |
| Degree of protection | IP67 |
| Mechanical life | 1 x 106 |
| Contact material | Silver alloy, gold flashed |
| Switching principle | Slow-action switching contact |
| Installation position | Any |
| Number of door position positively driven contacts | 2 |
| Number of NC contacts | 1 |
| Number of NO contacts | 1 |
| Connection | |
| 3 x | M20 x 1.5 |
| Approach speed | |
| max. | 20 m/min |
| Actuation frequency | 1200 1/h |
| Guard locking principle | Open-circuit current principle |
| Locking force F | 1300 N |
| Locking force F | 1000 N |
| Retention force | 10 N |
| Extraction force | 20 N |
| Actuating force | 10 N |
