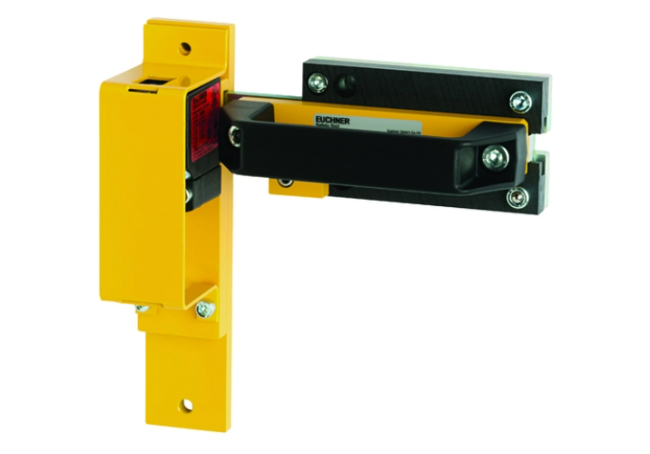

Euchner ITEM 109358 RIEGEL CES-AC-AR-C01-AH-SA-C2296​

Features

• Steel bolt
• Safety switch already pre-assembled
• Connection via M12 plug connector
• For left or right hinged doors
• Ball detent mechanism in closed position
• Can be locked in open position with padlocks
• Switch and actuator included
• Protective plate for safety switch

Advantages

• Robust construction
• Easily fitted to standard aluminum profiles and machine covers by screw connection
• Distinctive yellow color for easy recognition
• Symmetrical design for doors hinged on the right or left
• No additional door handle necessary

Notes

• CES actuator integrated in the bolt tongue
• Safety switch CES-AR-C01-AH-SA-098941 included. For further information see product page for the safety switch.

Special features

Uniquely coded actuator (one-off)- maximum protection against tampering
Bolt with detent mechanism - Ball detent mechanism in closed bolt position - Protection against vibration
