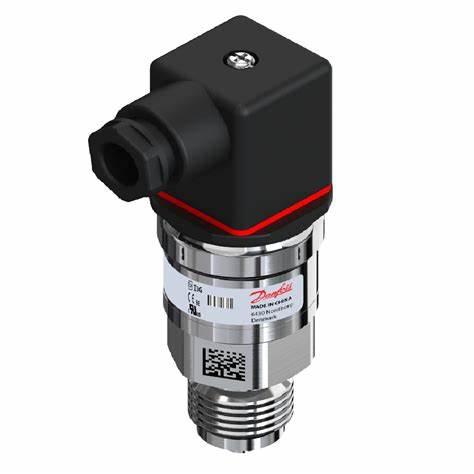

Danfoss Pressure transmitter , AKS 33 060G2101, -1.00 bar - 12.00 bar, -14.50 psi - 174.00 psi
Price:
$1--$1000
MOQ:
1set
Delivery Time:
1-10 working days
Brand:
Danfoss
Product Description
Danfoss Pressure transmitter , AKS 33 060G2101, -1.00 bar - 12.00 bar, -14.50 psi - 174.00 psi
Specification
Pressure connection type: NPT,
Pressure connection size: 1/4-18,
Specification key: AKS 33-DH31-A1EC04-0
| Gross weight | 0.184 Kilogram |
| Net weight | 0.157 Kilogram |
| Volume | 0.416 Liter |
| EAN | 5.70242E+12 |
| + supply | Pin 1 |
| - common | Pin 2 |
| Accuracy, max. +/- FS [%] | 0.80% |
| Accuracy, typical +/- FS [%] | 0.30% |
| Adj. zero point and span | No |
| Ambient temperature range [°C] [max] | 85 °C |
| Ambient temperature range [°C] [min] | -40 °C |
| Ambient temperature range [°F] [Max] | 185 °F |
| Ambient temperature range [°F] [Min] | -40 °F |
| Approval | ATEX |
| GOST POCC | |
| cUR | |
| Approval comments | ATEX Ex ec IIA T4 Gc |
| Approval standard | 6967179 |
| E227388 | |
| E31024 | |
| China RoHS compliance | Out of scope |
| Compensated temp. range [°C] [Max] | 40 °C |
| Compensated temp. range [°C] [Min] | -30 °C |
| Compensated temp. range [°F] [Max] | 104 °F |
| Compensated temp. range [°F] [Min] | -22 °F |
| EEE category | 5 small equipment (any external dimension 50 cm) |
| Electrical conn. Male/Female | Male and Female |
| Electrical connection | Angular connector |
| Electrical connection size | Pg 9 |
| Electrical connection standard | EN 175301-803-A |
| Enclosure rating IP | IP65 |
| EU RoHS compliance | Out of scope |
| Flush diaphragm | No |
| High Clipping Level | 22.4 |
| In scope of WEEE | Yes |
| In scope of WEEE and contain batteries | No |
| International Article Number | 5702422065906 |
| Intrinsically safe | No |
| Low Clipping Level | 3.6 |
| Medium temperature range [°C] [Max] | 85 °C |
| Medium temperature range [°C] [Min] | -40 °C |
| Medium temperature range [°F] [Max] | 185 °F |
| Medium temperature range [°F] [Min] | -40 °F |
| Non-linearity BFSL ±FS [%] | 0.20% |
| Other RoHS documentation | Saudi Arabia RoHS |
| Output signal | Current |
| Output signal [mA] [Max] | 20 mA |
| Output signal [mA] [Min] | 4 mA |
| Overload pressure max. [bar] | 33 bar |
| Overload pressure max. [psi] | 479 psi |
| Packing format | Multi pack |
| Pressure connection size | 4/18 |
| Pressure connection standard | ANSI/ASME B1.20.1 |
| Pressure connection type | NPT |
| Pressure Male/Female | Male |
| Pressure range [bar] [Max] | 12 bar |
| Pressure range [bar] [Min] | -1 bar |
| Pressure range [psi] [Max] | 174 psi |
| Pressure range [psi] [Min] | -14.5 psi |
| Pressure unit reference | Sealed gauge |
| Product group | Sensors |
| Product Name Description | Pressure transmitter |
| Pulse-snubber | No |
| Quantity per packing format | 14 pc |
| REACH Candidate List substances | Lead (CAS no. 7439-92-1) |
| Response time max. [ms] | 4 ms |
| SCIP dossier no. | 5d3ddba9-4ab7-49e8-8c1e-73e8e21d0b89 |
| SCIP dossier product name | Sensor AKS 33 |
| Specification key | AKS 33-DH31-A1EC04-0 |
| Supply voltage [V] DC [max] | 32 V |
| Supply voltage [V] DC [max] | 32 V |
| Supply voltage [V] DC [min] | 9 V |
| Supply voltage [V] DC [min] | 9 V |
| Type | AKS 33 |
| UK RoHS compliance | Out of scope |
Ordering Information
| Visuals | Document Category | Title |
|---|---|---|
 |
Product photo | AKS 33 and 32 PG 9 G1-4-18 NPT |
