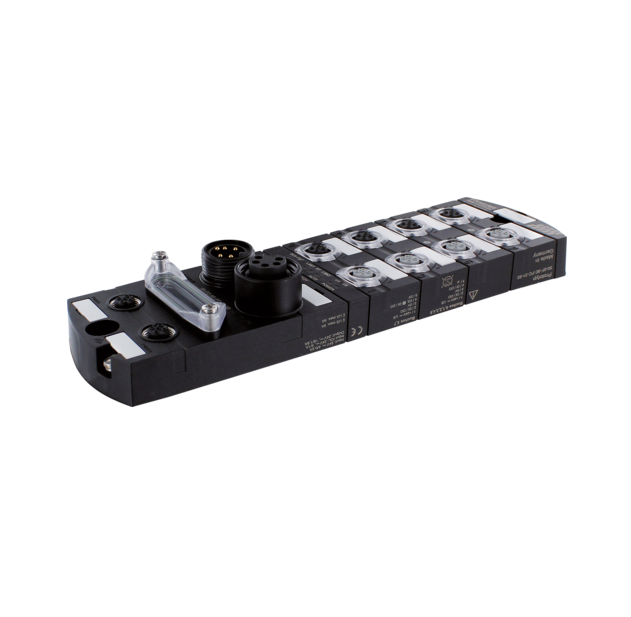

55132 MURR ELEKTRONIK Impact 67 PN DIO12 IOL4 IRT 7/8" 5pin
55132 MURR ELEKTRONIK Impact67 PN DIO12 IOL4 IRT 7/8" 5pin
Product Description:
|
Art.No.: |
55132 |
|
Weight: |
0.435 kg |
|
Country of origin: |
DE |
Digital inputs/outputs
DIO12 IOL4 (IRT)
Ethernet 10/100 Mbit/s; M12, D-coded
7/8", 5-pole, 2× max. 9 A
M12, 5-pole, A-coded
IO-Link Master V1.1.2
Connection cables are in the online shop under "Connection Technology".
Housing fully potted.
mounting compatible with I/O modules of the MVK series
Features:
Electrical data | Supply
|
Norm operating voltage |
EN 61131-2 |
|---|---|
|
Operating voltage US DC |
24 V |
|
Operating voltage UA DC |
24 V |
|
Total current UA max. |
9 A |
|
Total current US max. |
9 A |
Electrical data | Input
|
Overload resistant |
yes |
|---|---|
|
Short-circuit protected |
yes |
|
Type input |
PNP, for 3-wire sensors or mechanical switches, IO-Link Devices |
|
Sensor current US per input max. |
0,2 A |
|
Sensor current US per IO-Link port max. |
1 A |
Electrical data | Output
|
Overload resistant |
yes |
|---|---|
|
Short-circuit protected |
yes |
|
Output current per pin max. |
1,6 A |
|
Lamp load |
10 W |
Industrial communication
|
Supported protocol |
PROFINET |
|---|
Industrial communication | Profinet
|
Number of active connections (IO controller) max. |
2 |
|---|---|
|
FSU (Fast-Start-Up) |
yes |
|
Fast start up time max. |
0,5 s |
|
IRT (network communication) |
yes |
|
PROFINET Netload Class |
III |
|
PROFINET addressing |
DCP |
|
PROFINET conformance class |
C |
|
PROFINET specification |
V2.3 |
|
Shared device/input |
yes |
Industrial communication | IO-Link
|
IO-Link type |
4× Master |
|---|---|
|
Port Class |
B |
|
IO-Link transmission rate |
COM1, COM2, COM3 |
|
IO-Link process data length input |
32 Bytes |
|
IO-Link process data length output |
32 Bytes |
|
Automatic baudrate detection |
yes |
Diagnostics
|
Actuator warning |
per channel via LED and BUS |
|---|---|
|
Diagnostic via BUS |
per module and channel |
|
Diagnostic via LED |
per module and channel |
|
IO-Link events |
No voltage, Undervoltage supply |
|
LED display |
Ethernet connection/data traffic |
|
Cable break |
per port |
Device protection | Electrical
|
Degree of protection (EN IEC 60529) |
IP67 |
|---|

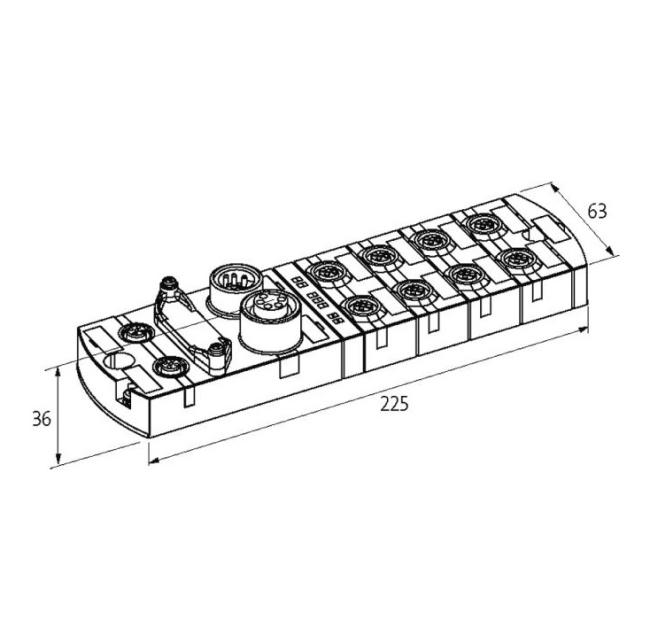

Mechanical data | Mounting data
|
Suitable for mounting type |
2-hole screw mounting |
|---|---|
|
Height |
39 mm |
|
Width |
63 mm |
|
Depth |
225 mm |
Environmental characteristics | Climatic
|
Operating temperature min. |
-25 °C |
|---|---|
|
Operating temperature max. |
55 °C |
|
Storage temperature min. |
-25 °C |
|
Storage temperature max. |
70 °C |
