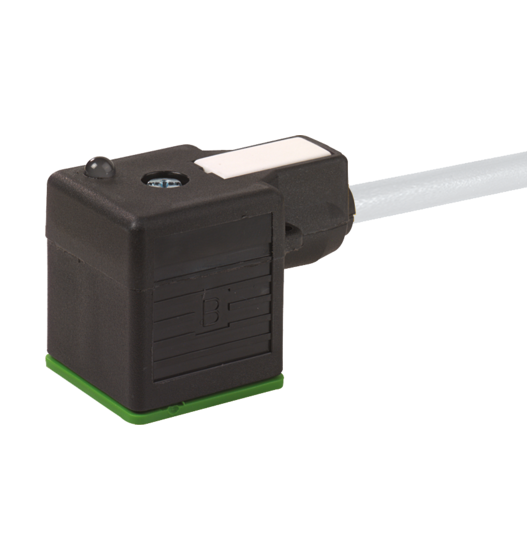

7000-18001-2260300 MURR ELEKTRONIK MSUD Valve Plug A-18mm With Cable
7000-18001-2260300 MURR ELEKTRONIK MSUD valve plug A-18mm with cable
Product Description:
PUR 3x0.75 gy UL/CSA 3m
|
Art.No.: |
7000-18021-2260300 |
|
Weight: |
0.207 kg |
|
Country of origin: |
CZ |
MSUD

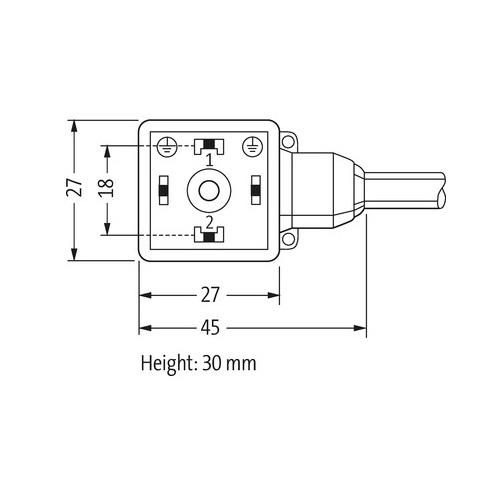

Form A (18 mm)
24 V AC ±20% / DC ±25%

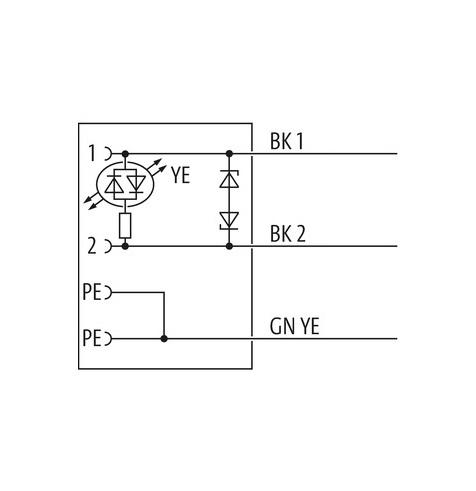

LED and suppression
Bridged PE
Further cable lengths on request.
Plastic housings with good resistance against chemicals and oils.
The resistance to aggressive media should be individually tested for your application. Further details on request.
Features:
|

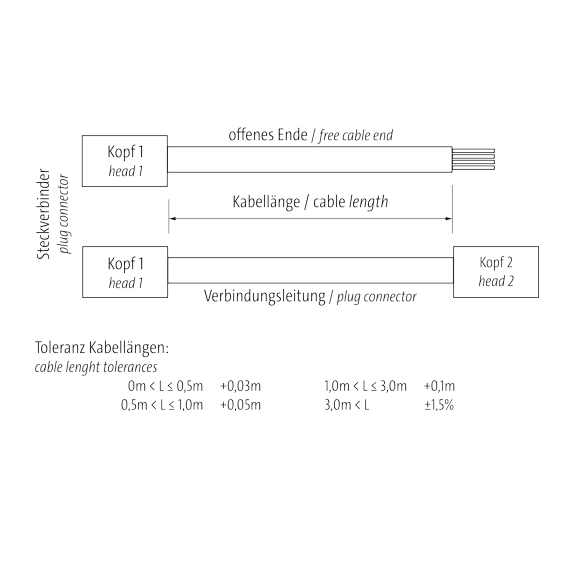

Cable length |
3 m |
|---|
Side 1
|
Tightening torque |
0,4 Nm |
|---|---|
|
Mounting method |
inserted, screwed |
|
Family construction form |
MSUD A |
|
Thread |
M3 |
|
Material |
PBT |
|
Degree of protection (EN IEC 60529) |
IP67 |
Electrical data
|
Drop-out delay time max. |
20 ms |
|---|
Electrical data | Supply
|
Operating voltage AC |
24 V |
|---|---|
|
Operating voltage AC min. |
19,2 V |
|
Operating voltage AC max. |
28,8 V |
|
Operating voltage DC |
24 V |
|
Operating voltage DC min. |
18 V |
|
Operating voltage DC max. |
30 V |
|
Cut-off peak voltage max. |
55 V |
|
Current operating per contact max. |
4 A |
|
Current consumption max. |
15 mA |
Diagnostics
|
Status indication LED |
yellow |
|---|
Installation | Connection
|
Mounting set |
M3 |
|---|
Device protection | Electrical
|
Additional condition protection degree |
inserted, screwed |
|---|---|
|
Pollution Degree |
3 |
|
Rated surge voltage |
0,8 kV |
|
Material group (IEC 60664-1) |
I |
|
Additional suppressor |
Diode, Z-Diode |
Mechanical data | Material data
|
Coating locking |
galvanized |
|---|---|
|
Coating of fitting |
galvanized |
|
Color housing |
black |
|
Material gasket |
PUR |
|
Locking material |
Steel |
|
Material screw connection |
Steel |
Mechanical data | Mounting data
|
Mounting method |
inserted, screwed |
|---|
Environmental characteristics | Climatic
|
Operating temperature min. |
-25 °C |
|---|---|
|
Operating temperature max. |
85 °C |
|
Additional condition temperature range |
depending on cable quality |
Important installation notes
|
Note on strain relief |
Protect the connectors by suitable measures from mechanical loads, e.g. by the usage of cable ties. |
|---|---|
|
Note on bending radius |
Attention: Observe the permissible bending radii when laying cables, as the IP protection class can be endangered by excessive bending forces. |
