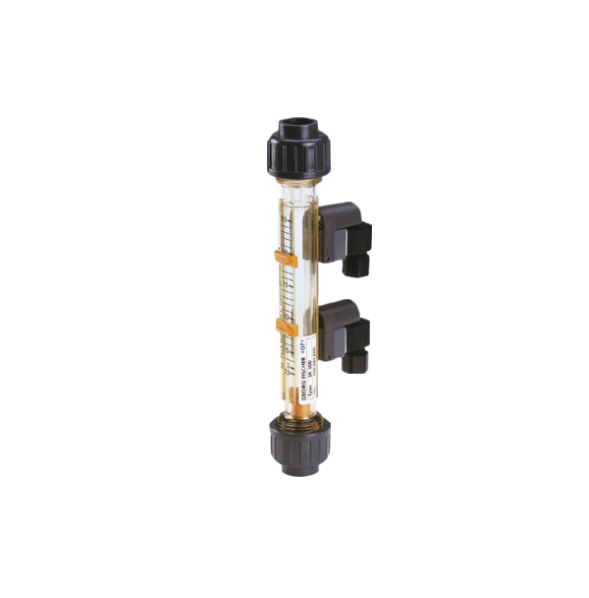

Type 335/350 /123 Georg Fischer Limit Contacts GK 10/GK11 VAFM Type 335/350 /123 Variable Area Flow Meter
Type 335/350 /123 Georg Fischer Limit contacts GK 10/GK11 VAFM type 335/350 /123 Variable area flow meter
Product Description:
Type 225/350 and 123 Variable area flow meters are radially installed, dismountable meters for measuring the flow rate in industrial piping system constructions. The measuring principle is advanced and efficient. The measurement ranges, which are tailored to our customers‘ needs, and the range of materials available for the tubes and screwed fittings, allow the flow meters to be used for a wide range of applications and a great variety of media.
Applications:
Applications
Water treatment
Chemical process industry
Microelectronics
Food industry
Ship building
Building services engineering
Benefits/features
Easy and cost effective measurement principle
No additional energy required for operation
Easy reading of the measured value
Available scale range from 50 l/h up to 60'000 l/h
Printed double scale for water in percent and l/h
Special scales for liquid and gaseous media can be attached
Wide range of materials • Break-proof and corrosion resistant
Large dimensions with guiding rod (PVDF-coated)
