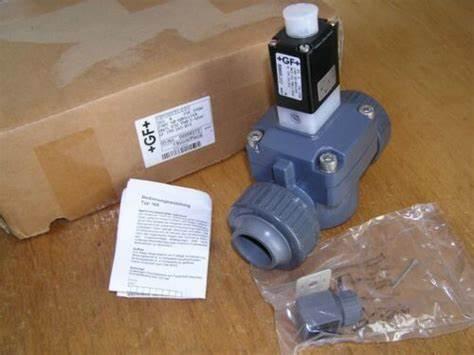

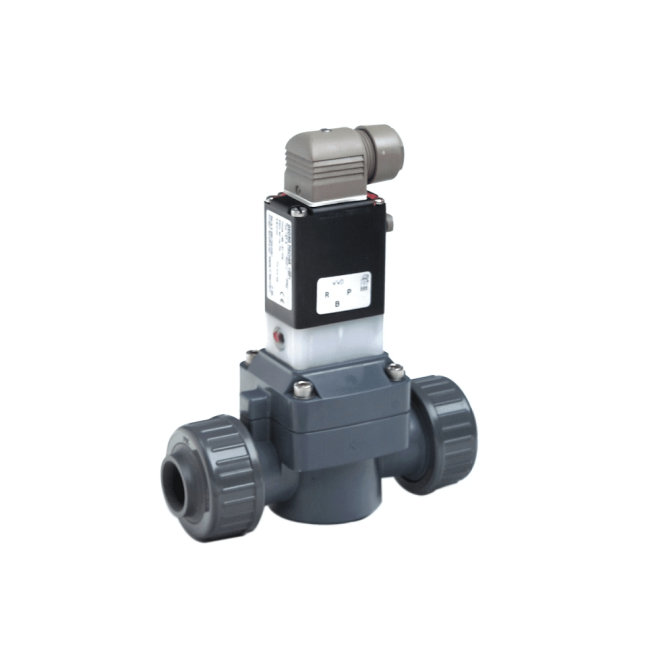

Type 165 Georg Fischer Solenoid valve type 165

Product Description:

The pilot-controlled gate Valve Type 165 with servo diaphragm is closed when there is no current. A minimum differential pressure of 0.5 bar is required to fully open and close the valve. Actuator and media chamber are separated by a diaphragm. The solenoid coils are encapsulated with a highly chemically resistant epoxy. Servo assisted solenoid valves have less power consumption than direct acting solenoid valves in the same dimension

Features:

Applications

• Water treatment
• Process/chemical engineering
• Plant/mechanical engineering
• Semiconductor industry
• Environmental engineering
• Medical engineering
• Apparatus engineering
• Analytical technology

Benefits/features

• Function: A
• PN 0.5 – 6 bar
• Pilot-controlled valve with servo diaphragm
• Separate from media
• No metal internal parts
• Pivoted armature pilot control with lockable emergency manual override
• Simple installation and removal
• Plastic valve for aggressive and contaminated media
• Service-friendly manual operation
