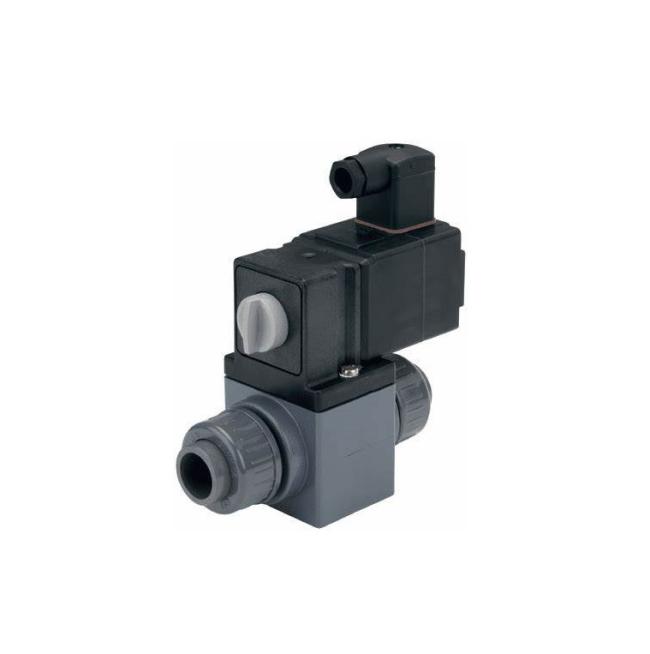

Type 160/161 Georg Fischer Solenoid Valve Type 160/161

Product Description:

Type 160/161 works according to the leverage principle and can therefore switch large nominal diameters directly. It is available in both the 2/2-way and the 3/2-way valve designs. It can be used for a wide range of functions, such as opening, locking, dosing, mixing and dispensing. The anchor operates horizontally on a permanently coupled rocker. The sealing cylinder on the lower lever is pressed to the valves seats through the horizontal movement. The plastic-coated metal lever forms one unit with the gas-tight diaphragm bushing. Through this construction, the actuator media is kept separate from the fluid housing.

Features:

Applications

• Water treatment
• Process/chemical engineering
• Plant/mechanical engineering
• Semiconductor industry
• Environmental engineering
• Medical engineering
• Apparatus engineering
• Analytical technology

Benefits/features

• With solvent cement socket, metric
• Circuit functions: A and B (Type 160), E and F (Type 161)
• PN 0 – 3bar • Handle with ratchet setting
• Electrical connection with cable plug
• Protection rating IP65
• Directly-acting valve up to nominal diameter DN20, separated from media
• Vibration-resistant, block-connected coil system
• Energy-efficient decrease in power in all DC models
• Increased safety through electrical position feedback
• Robust, service-friendly manual override
