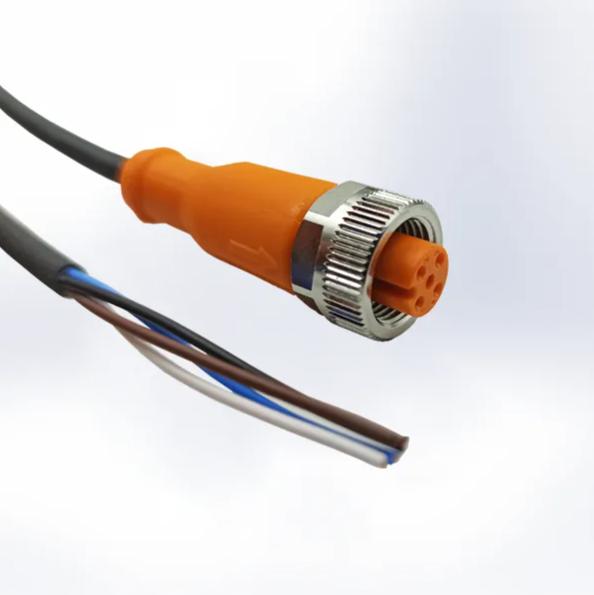

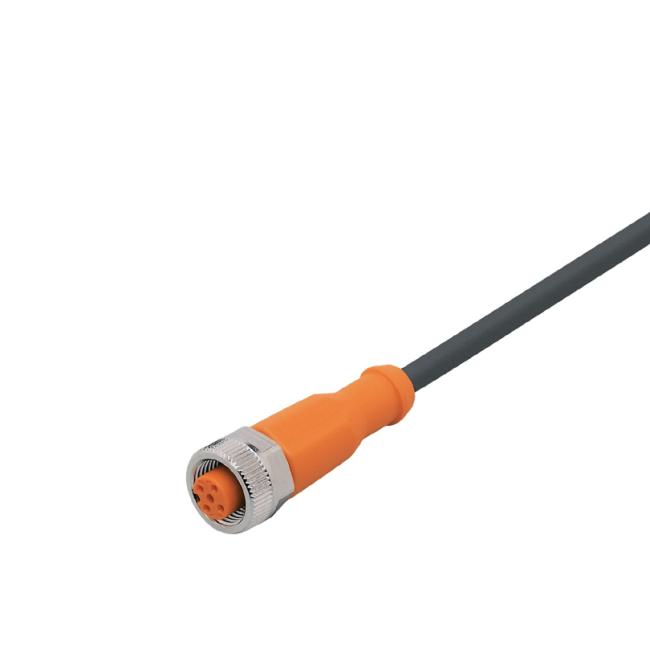

IFM Female cordset EVC003 ADOGH040MSS0010H04 | :part no : EVC003 Free from silicone; Halogen-free; gold-plated contacts; Drag chain suitability
Price:
$23
MOQ:
1
Delivery Time:
3 day
Brand:
IFM
Product Description
| EVC003 | |||||||||
| Connecting cable with socket | |||||||||
| ADOGH040MSS0010H04 | |||||||||
| Please see the technical note under "Downloads" | |||||||||
 |
|||||||||
| Application | |||||||||
| Special feature | Free from silicone; Halogen-free; Gold-plated contacts; Drag chain suitability | ||||||||
| Free from silicone | yes | ||||||||
| Electrical data | |||||||||
| Operating voltage [V] | < 250 AC / < 300 DC | ||||||||
| Protection class II Max. current load total [A] 4 |
|||||||||
| Operating conditions | |||||||||
| Ambient temperature | [°C] | -25...90 | |||||||
| Note on ambient temperature | cULus: ...75 °C | ||||||||
| Ambient temperature (moving) |
[°C] | -25...90 | |||||||
| Note on ambient temperature (moving) |
cULus: ...75 °C | ||||||||
| -25...55 | |||||||||
| Storage temperature | [°C] | ||||||||
| Storage humidity | [%] | 10...100 | |||||||
| Other climatic conditions for storage according to stated class |
1K22/ DIN 60721-3-1 | ||||||||
| IP 65; IP 67; IP 68; IP 69K | |||||||||
| Protection | |||||||||
 ifm electronic gmbh • Friedrichstraße 1 • 45128 Essen — We reserve the right to make technical alterations without prior notice. — EN-GB — EVC003-01 — 10.01.2020 — |
|||||||||
| EVC003 | |||||||||
| Connecting cable with socket | |||||||||
| ADOGH040MSS0010H04 | |||||||||
| Mechanical data | |||||||||
| Weight | [g] | 294.7 | |||||||
| Dimensions [mm] | 15.5 x 15.5 x 45 | ||||||||
| Materials | housing: TPU orange; Sealing: FKM | ||||||||
| Material nut | brass, nickel-plated | ||||||||
| Drag chain suitability | yes | ||||||||
| Drag chain suitability | bending radius for flexible use | min. 10 x cable diameter | |||||||
| travel speed | max. 3.3 m/s for a horizontal travel length of 5 m and max. acceleration of 5 m/s² |
||||||||
| bending cycles | > 5 Mio. | ||||||||
| torsional strain | ± 180 °/m | ||||||||
| Remarks | |||||||||
| Notes Please see the technical note under "Downloads" Pack quantity 1 pcs. |
|||||||||
| Electrical connection | |||||||||
| Cable: 10 m, PUR, Halogen-free, black, Ø 4.3 mm; 4 x 0.34 mm² (42 x Ø 0.1 mm ) | |||||||||
| Electrical connection - socket | |||||||||
 Connector: 1 x M12, straight; Locking: brass, nickel-plated; Contacts: gold-plated; Tightening torque: 0.6...1.5 Nm |
|||||||||
 ifm electronic gmbh • Friedrichstraße 1 • 45128 Essen — We reserve the right to make technical alterations without prior notice. — EN-GB — EVC003-01 — 10.01.2020 — |
|||||||||
| EVC003 | |||||||||
| Connecting cable with socket | |||||||||
| ADOGH040MSS0010H04 | |||||||||
| Connection | |||||||||
 |
|||||||||
| Core colours : | |||||||||
| BK = black | |||||||||
| BN = brown | |||||||||
| BU = blue | |||||||||
| WH = white | |||||||||
| Diagrams and graphs | |||||||||
| characteristic line for derating |  Derating Imax * 0.8 (DIN EN 60512-5-2)X Ambient temperature [°C] Y Current [A] |
||||||||
