IFM Female cordset EVC004 ADOAH040MSS0002H04 | part no : EVC004

Name: IFM Female cordset EVC004 ADOAH040MSS0002H04 | part no : EVC004
Brand: Xiamen ZhiCheng Automation Technology Co., Ltd

Price Negotiable

Price: $11.5

MOQ: 1

Delivery Time: 3 day

Brand: IFM

Product Description

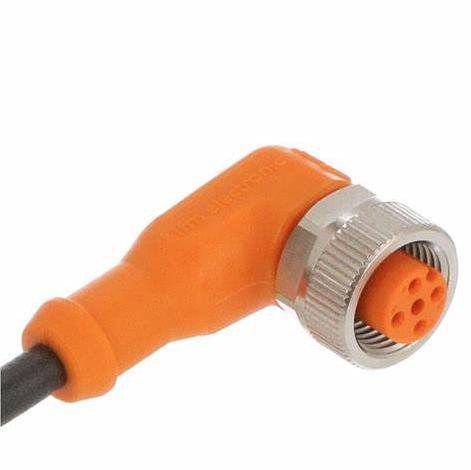

Female cordset
ADOAH040MSS0002H04


Application
System				Free from silicone; Halogen-free; gold-plated contacts; Drag chain suitability
Free from silicone				yes
Electrical data
Operating voltage [V]				< 250 AC / < 300 DC
Protection class II Max. current load total [A] 4
Operating conditions
Ambient temperature		[°C]		-25...90
Note on ambient temperature				cULus: ...75 °C
Ambient temperature (moving)		[°C]		-25...90
Note on ambient temperature (moving)				cULus: ...75 °C
				-25...55
Storage temperature		[°C]
Storage humidity		[%]		10...100
Other climatic conditions for storage according to stated class				1K22/ DIN 60721-3-1
				IP 65; IP 67; IP 68; IP 69K
Protection
ifmefector, inc. • 1100 Atwater Drive • Malvern • PA 19355 — We reserve the right to make technical alterations without prior notice. — EN-US — EVC004-01 — 10.01.2020 —

EVC004
Female cordset
ADOAH040MSS0002H04
Mechanical data
Weight		[g]		76.1
Dimensions [mm]				26.5 x 15.5 x 36.5
Material				housing: TPU (urethane) orange; sealing: FKM
Material nut				brass, nickel-plated
Drag chain suitability				yes
Drag chain suitability				Bending radius for flexible applications	min. 10 x cable diameter
				Travel speed	max. 3.3 m/s for a horizontal travel length of 5 m and max. acceleration of 5 m/s²
				Bending cycles	> 5 Mio.
				Torsional strain	± 180 °/m
Remarks
Notes Please see the technical note under "Downloads" Pack quantity 1 pcs.
Electrical connection
Cable: 2 m, PUR, Halogen-free, black, Ø 4.3 mm; 4 x 0.34 mm² (42 x Ø 0.1 mm )
Electrical connection - Socket
Connector: 1 x M12, angled; Locking: brass, nickel-plated; Contacts: gold-plated; Tightening torque: 0.6...1.5 Nm
ifmefector, inc. • 1100 Atwater Drive • Malvern • PA 19355 — We reserve the right to make technical alterations without prior notice. — EN-US — EVC004-01 — 10.01.2020 —

EVC004
Female cordset
ADOAH040MSS0002H04
Connection

	Core colors :
BK = black
BN = brown
BU = blue
WH = white
Diagrams and graphs
Characteristic curve for derating			Derating Imax * 0.8 (DIN EN 60512-5-2) X Ambient temperature [°C] Y Current [A]
