Round Outdoor RGB LED Spotlights 12W IP65 With Anti-glare Hood High CRI Support DMX512
Price:
Negotiable
MOQ:
20 pieces
Delivery Time:
15
Brand:
Joyful Partner
Product Description

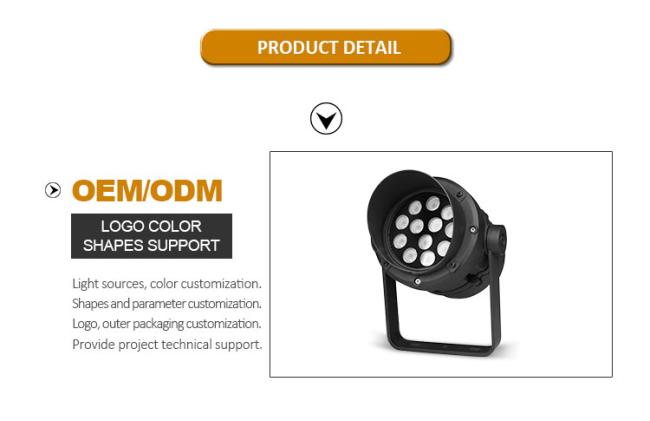

Round Outdoor RGB LED Spotlights 12W IP65 With Anti-glare Hood High CRI Support DMX512
|
Item No.
|
Light source
|
Lens beam angle(°)
|
Consumption
|
Input Voltage
|
Ik rate
|
|
B832121
|
12*1W
|
8°/15°/20°/30°/45°/60°
|
13
|
DC24V/AC100-240V
|
7
|
|
B832122
|
12*3W
|
8°/15°/20°/30°/45°/60°
|
36
|
DC24V/AC100-240V
|
7
|
|
B832123
|
12*1W RGB
|
8°/15°/20°/30°/45°/60°
|
12
|
DC24V
|
7
|
|
B832124
|
12*3W RGB
|
8°/15°/20°/30°/45°/60°
|
30
|
DC24V
|
7
|
|
B832126
|
12*3W RGB3in1
|
30°/45°/60°
|
36
|
DC24V
|
7
|
|

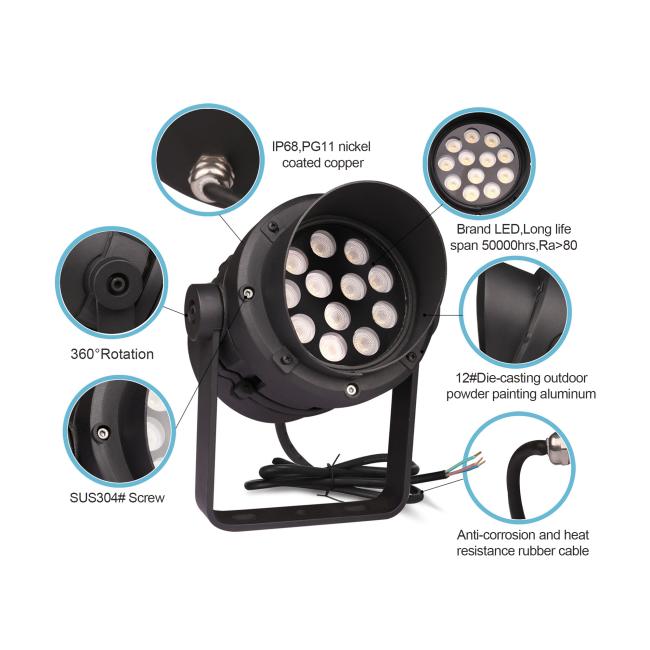

Material specifications
|
|
|
|
Housing
|
12#Die-casting outdoor powder painting aluminum.T=60-80μm
Adhesion of ISO Glass 1/ASTM Glass 4B |
|
|
Glass
|
Tempered glass.T=6mm
|
|
|
Lens
|
Optical lens,effciency≥85%
|
|
|
Cable gland
|
IP68,PG11 nickel coated copper
|
|
|
Gasket
|
Molding shaped silicone double seal
|
|
|
LED
|
Epistar or CREE,Ra>80
|
|
|
PCB
|
Excellent heat conductivity aluminum,
coeffcient of heat conductivity≥2.0w/mk |
|
|
Driver
|
Constant current output
single color LED=1-circuit output RGB 3in1 LED=3-circuit output |
|
|
Operating temperature
|
(-20℃~40℃)
|
|
|
Power cable
|
H05RN-F2*0.75mm²L=1m(low voltage)
H05RN-F3*0.75mm²L=1m(high voltage) H05RN-F4*0.75mm²L=1m(for RGB) |
|
|
Optional accessory
|
Honeycomb
|
|
1. Brand LED high lumen, energy saving, soft light,2. Anti-oxidation aluminum housing,
3. Outdoor IP65 Waterproof,
4. Support DMX512/PWM/DALI control,
5. Installed easily by mounting base or spike,
6. Housing color customizable,![]()
3. Outdoor IP65 Waterproof,
4. Support DMX512/PWM/DALI control,
5. Installed easily by mounting base or spike,
6. Housing color customizable,
7. Ideal for uplighting, shadowing, wall washing, silhouetting, and architectural accents,
8. Available in: 2700K, 3000K, 4000K, 6000K, Blue, Green, Red, Yellow.

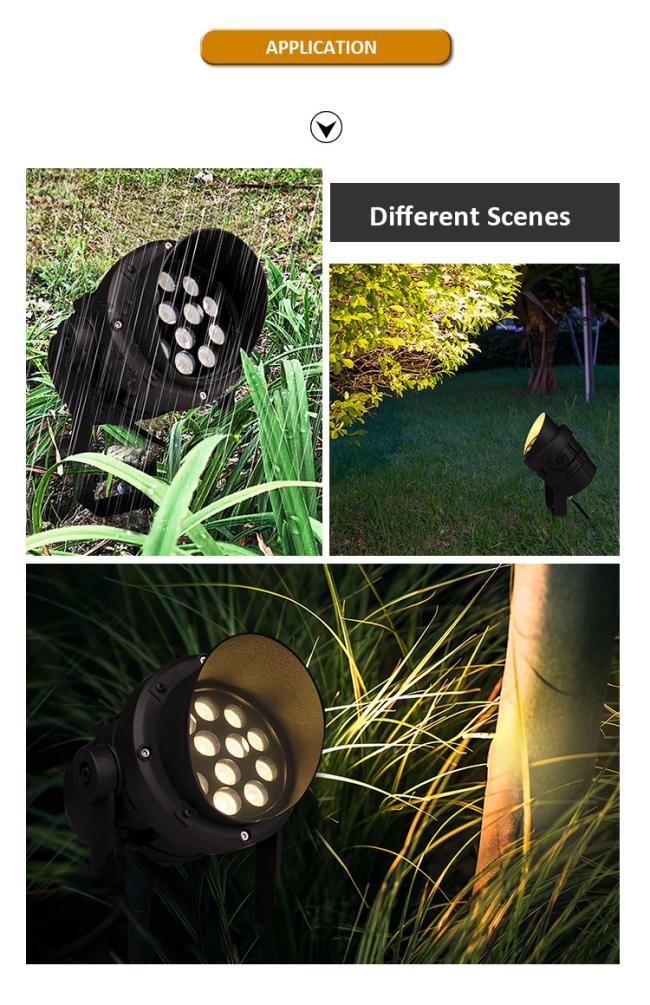

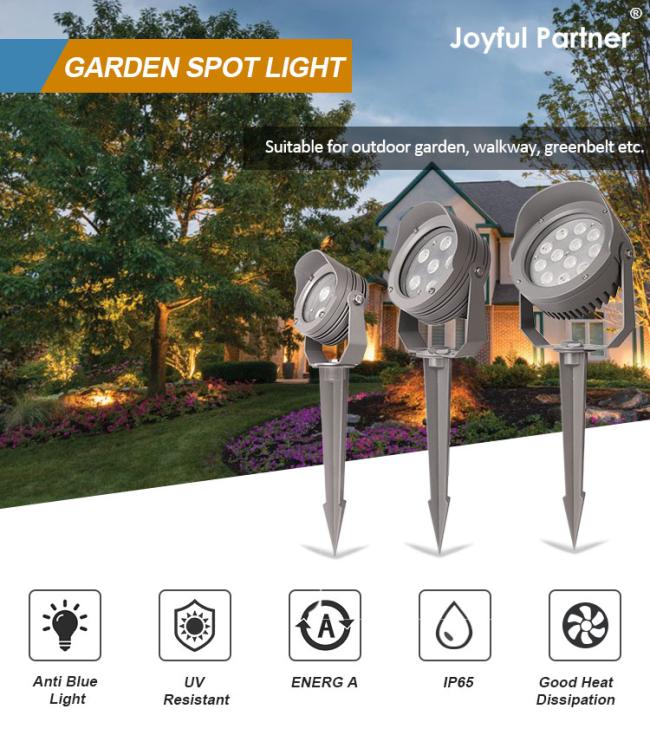

It’s perfect for all outdoor lighting applications including uplighting, trellises, pavilions, fences, shadowing, silhouettes, structures or architectural accent lighting.
