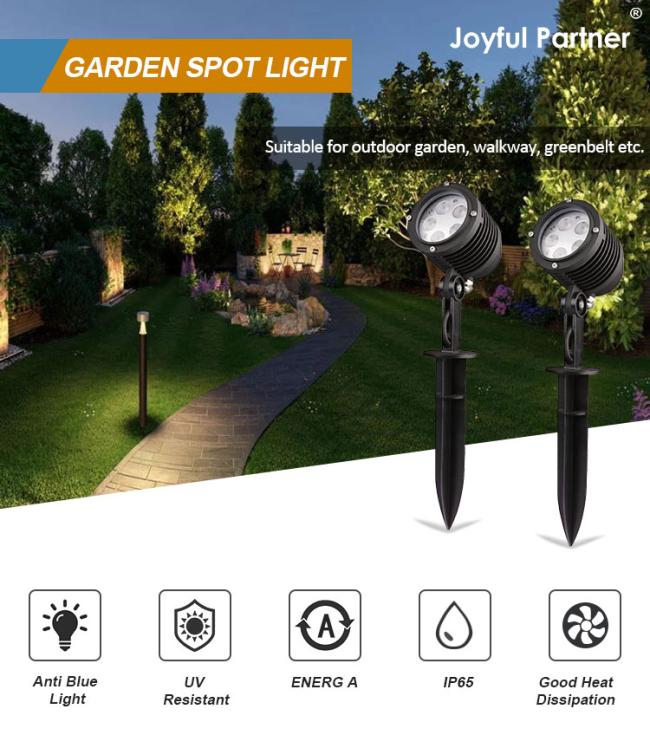

Outdoor LED Garden Spot Light 5W 10W 15W COB LED Ra≥ 90 AC100~240V With Tempered Glass
Price:
Negotiable
MOQ:
20 pieces
Delivery Time:
15
Brand:
Joyful Partner
Product Description
Outdoor LED Garden Spot Light 5W 10W 15W COB LED Ra≥ 90 AC100~240V With Tempered Glass
|
Item No.
|
Light Source
|
Lens Beam Angle(°)
|
Consumption
(watt)
|
Input Voltage(V)
|
IK Rate
|
|
83551 83551B
|
5*1W
|
8°/15°/20°/30°/45°/60°
|
5
|
DC24V
|
5
|
|
83551H 83551BH
|
5*1W
|
8°/15°/20°/30°/45°/60°
|
6.1
|
AC100-240V
|
5
|
|
83552 83552B
|
5*3W
|
8°/15°/20°/30°/45°/60°
|
15
|
DC24V
|
5
|
|
83552H 83552BH
|
5*3W
|
8°/15°/20°/30°/45°/60°
|
15.5
|
AC100-240V
|
5
|
|
83556 83556B
|
5*3W RGB3in1
|
30°/45°/60°
|
15.1
|
DC24V
|
5
|
|
Material specifications
|
|
|
|
Housing
|
12#Die-casting outdoor powder painting aluminum.T=60-80μm Adhesion of ISO Glass 1/ASTM Glass 4B
|
|
|
Glass
|
Tempered glass.T=4mm
|
|
|
Lens
|
Optical lens,effciency≥85%
|
|
|
Cable gland
|
IP68,PG9 nickel coated copper
|
|
|
Gasket
|
Molding shaped silicone double seal
|
|
|
LED
|
Epistar or CREE,Ra>80
|
|
|
PCB
|
Excellent heat conductivity aluminum, coeffcient of heat conductivity≥2.0w/mk
|
|
|
Driver
|
Constant current output
single color LED=1-circuit output
RGB 3in1 LED=3-circuit output
|
|
|
Operating temperature
|
(-20℃~40℃)
|
|
|
Spike
|
PVC
|
|
|
Mounting base
|
Powder coated die-casting aluninum
|
|
|
Power cable
|
H05RN-F2*0.75mm²L=1m(low voltage)
H05RN-F3*0.75mm²L=1m(high voltage)
H05RN-F4*0.75mm²L=1m(for RGB)
|
|
|
Optional accessory
|
Honeycomb
|
|
|
Antiglare hood
|
||
1. Brand LED high lumen, energy saving, soft light,
![]()
2. Anti-oxidation aluminum housing,
3. Upgrade IP65 Waterproof,
4. Support DMX512 control,
5. Installed easily by mounting base or spike,
6. Housing color customizable.
3. Upgrade IP65 Waterproof,
4. Support DMX512 control,
5. Installed easily by mounting base or spike,
6. Housing color customizable.
