Steam iron scheme solution
Description
Golden Triangle Group has launched a cost-effective electric iron product solution. The solution has a built-in LCD display drive circuit, a built-in high-precision AD temperature measurement module, and a built-in reference voltage source, which effectively simplifies the design of peripheral circuits, and provides various developments such as template programs and modular codes. Ways to ensure that customers quickly develop and introduce mass production.
Steam iron program performance characteristics:
> The overall integration of the solution is high, the external circuit is simple, the cost is high, and it is convenient for production, testing and maintenance
> Built-in multi-channel high-precision 12-bit ADC, industrial-grade high-precision, high reliability
> Built-in LCD driver module, which can be directly connected to the display screen with external components
| Attribute | Attribute Value |
| Integration | High overall integration |
| External circuit | Simple external circuit |
| Cost | High cost |
| Production convenience | Convenient for production |
| Testing convenience | Convenient for testing |
| Maintenance convenience | Convenient for maintenance |
| Built-in ADC | Multi-channel high-precision 12-bit ADC |
| ADC quality | Industrial-grade high-precision, high reliability |
| LCD driver module | Built-in LCD driver module |
| Display screen connection | Direct connection to display screen with external components |

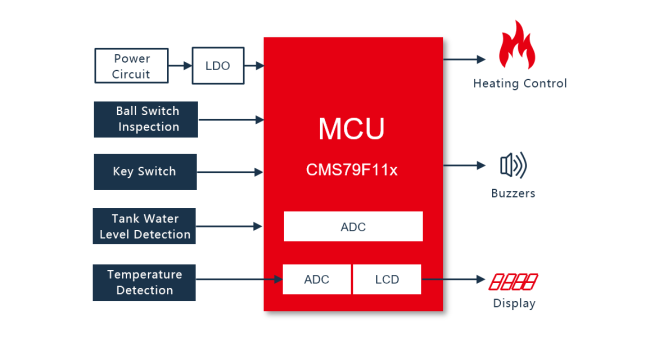

System diagram
