TFT color screen sphygmomanometer solution
Description
An electronic sphygmomanometer is a medical device that uses modern electronic technology and the principle of indirect blood pressure measurement to measure blood pressure. Golden Triangle Group has developed an extremely cost-effective complete solution based on the high-performance and low-power CMS32H3201 series of MCUs.
Sphygmomanometer program performance characteristics:
> The main control chip CMS32H3201 uses Cortex M0+ ultra-low power core (0.7uA for deep sleep), clocked at up to 64MHz, built-in 24-bit high-precision ADC, with I/O matrix, QSPI, USB, LCDB 32KB SRAM and 256KB large capacity Flash etc.
> Software: UCOSII&QP
> Voice broadcast function
> Display mode: 2.8 inch color LCD monitor
> Measurement method: Oscillation method working mode
> Pulse range: 40-240bpm
> Pressure range: 0-290mmHg
> Pressure resolution: 1mmHg
> Power supply: four AA alkaline batteries or 6V power adapter
| Attribute | Attribute Value |
| Main control chip | CMS32H3201 with Cortex M0+ ultra-low power core |
| Power consumption (deep sleep) | 0.7uA |
| Main frequency | Up to 64MHz |
| Built-in features | 24-bit high-precision ADC, I/O matrix, QSPI, USB, LCDB, 32KB SRAM, 256KB Flash |
| Software | UCOSII&QP |
| Voice broadcast | Voice broadcast function |
| Display | 2.8 inch color LCD monitor |
| Measurement method | Oscillation method working mode |
| Pulse range | 40-240bpm |
| Pressure range | 0-290mmHg |
| Pressure resolution | 1mmHg |
| Power supply | Four AA alkaline batteries or 6V power adapter |

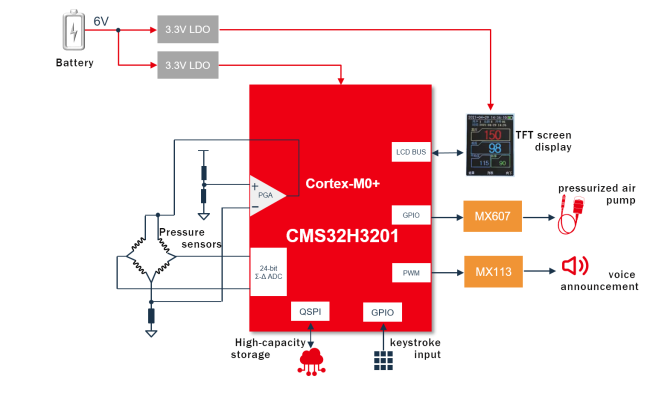

System diagram
