1500mm Width 316/316L Stainless Steel Plate 3.0-25mm Thick
1500mm width 316/316L stainless steel plate 3.0-25mm thick
316 (S31600) is also called SUS316 or ASTM A240/A240M 316 austenitic stainless steel, which has good corrosion resistance and can resist corrosion from many chemical media, including acids, alkalis, chlorides, etc. It is often used in chemical equipment, marine equipment and other environments
316 stainless steel has high heat resistance and can maintain stable performance in high temperature environments, suitable for high temperature equipment and high temperature processes
316 stainless steel has good strength and durability, as well as good plasticity and toughness, and is suitable for applications requiring high mechanical properties
316 stainless steel is widely used in chemical, marine engineering, food processing, medical equipment, architectural decoration and other fields, such as pipelines, containers, storage tanks, pressure vessels, medical equipment, etc.
Advantages of 316/316L stainless steel plate
316 stainless steel plate can be processed into required parts through cutting process, and can be made into required shapes or parts through shearing, flame cutting, plasma cutting and laser cutting, etc. The processing range is: thickness 3-25mm, width less than or equal to 2000mm.
Choose the right stainless steel plate to cut into the required products
316 stainless steel plate has good plasticity and is suitable for cold processing, such as cold drawing, cold heading, cold rolling and other processes, which can improve the strength and hardness of the material
316 stainless steel plate can also be hot processed, such as forging, hot rolling, heat treatment and other processes, suitable for making parts and components of complex shapes
316 stainless steel plate has good welding performance, we provide cutting, welding, bending and other processing services
316 stainless steel plate can be surface treated, such as polishing, sandblasting, pickling, wire drawing and other processing to improve appearance quality and corrosion resistance
For complex parts and components, EDEST STEEL can process them through CNC machining processes, such as milling, turning, drilling, wire cutting and other processing services
316L stock size table
|
Type |
Thickness(mm) |
Width(mm) |
|||
|
1219 |
1500 |
1800 |
2000 |
||
|
Plate/Sheet |
5.0 |
|
√ |
√ |
√ |
|
6.0 |
|
√ |
√ |
√ |
|
|
8.0 |
|
√ |
√ |
√ |
|
|
10.0 |
|
√ |
√ |
√ |
|
|
12.0 |
|
√ |
√ |
√ |
|
|
16.0 |
|
√ |
√ |
√ |
|
|
20.0 |
|
√ |
√ |
√ |
|
|
25.0 |
|
√ |
√ |
√ |
|
|
Or according to the size requested by the customer |
|||||
316/316L Chemical Composition Table
|
Chemical composition reference table |
|||||||||
|
Grade |
C |
Cr |
Ni |
Mn |
P |
S |
Mo |
Si |
Cu |
|
316 |
≤0.08 |
16.00-18.50 |
10.00-14.00 |
≤2.00 |
≤0.035 |
≤0.030 |
2.00-3.00 |
≤1.00 |
- |
|
316L |
≤0.030 |
16.00-18.00 |
12.00-15.00 |
≤2.00 |
≤0.035 |
≤0.030 |
2.00-3.00 |
≤1.00 |
- |
Surface of 316 stainless steel sheet
|
Finish
|
Thickness
|
Characteristics | Applications |
| No. 1 | 3.0mm~150.0mm | Finished by hot-rolling, annealing and pickling, characterized by white pickled surface | Chemical industry equipment,Industrial tanks |
| 2B | 0.2mm~6.0mm | Finished by heat treatment, pickling after cold rolling, followed by skin pass line to be more brighter and smooth surface | General Application Medical Instruments,Tableware |
| BA | 0.5mm~30.0mm | Bright heat treatment after cold rolling | Kitchen utensil, kitchen ware,architectural purpose |
| No.4(Bright Annealed) | 0.4mm~3.0mm | Polishing with No. 150 to No.180 mesh abrasives The most popular finishes | Milk & Food processing acilities, Hospital Equipment, Bath-tub |
| HL(Hair Line) | 0.4mm~3.0mm | Finished by continuous linear polishing | Architectural purposes, escalators, kitchen ware vehicles |
| 8k | 0.5mm~30.0mm | Shinning like a mirror | Building construction |

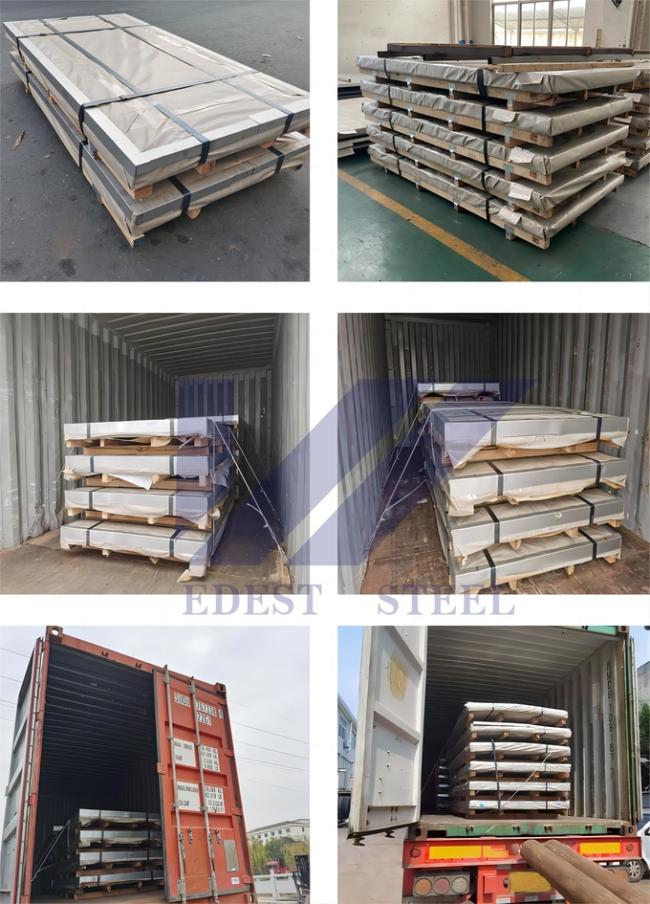

Packaging Details & Shipping
Standard seaworthy export packing:
3 layers of packing, inside is kraft paper, water plastic film is in the middle and outside GI steel sheet to be covered by steel strips with lock.
1. Export seaworthy packing: a water proof paper + an inhibitor film + a steel sheet cover with steel edge protectors and sufficient steel straps
2. Packaging detail:as customer's requirements.
Manufacturing capacity
We have more than ten years stainless steel products exporting experience, with full range of product lines, including stainless steel bars, profiles, pipes and tubes, stainless steel strips and sheets etc. We have rofessional sales and service teams with our own processing center, enough inventory to make sure fast delivery, products can also be customized. We're aiming to provide customer a One-stop service.
Our commitment
Our price may not be the lowest, but we adhere to the "quality first, service first" Our price is reasonable, we will be your most satisfied supplier in China
If you have any questions, please feel free to contact us! We are committed to providing you with the best products at the most reasonable prices, always providing our best service.
