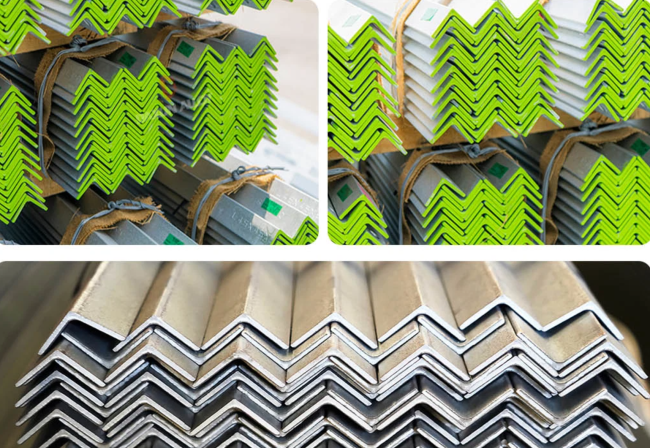

50x50x5 304 Angle Steel For Structural Brackets
structural frame 304 angle punching cutting welding stainless steel angle
Material characteristics:
Stainless steel gives angle steel good corrosion resistance, and it can be used for a long time in a humid and chemically corrosive environment without rusting
In the fields of chemical industry, marine engineering, etc., 50x50x5 stainless steel angle steel can be used to build structural frames, support equipment, etc.
It has high strength and hardness and can withstand large pressure, tension and impact. This makes it an important load-bearing component in the fields of building structure, machinery manufacturing, etc.
It is easy to perform processing operations such as cutting, welding, drilling, stamping, bending, etc., and is convenient for customization and installation according to actual needs
The surface is smooth and bright, with good decorative properties, and can be used in some places with high requirements for appearance, such as building decoration, interior decoration, etc.
It is generally produced by hot rolling process, that is, after the low-carbon square steel billet is heated to a high temperature state, it is rolled through a rolling mill to form it into the shape of an equilateral angle steel. The finished product is usually delivered in hot-rolled, normalized or hot-rolled state
Uses:
Widely used in building structures, such as beams, bridges, transmission towers, lifting and transportation machinery, ships, industrial furnaces, reaction towers, container racks, warehouse shelves, etc.
In some large-scale construction projects, it can be used as a support for the frame structure to ensure the stability and safety of the building
Used to manufacture parts of various mechanical equipment, such as workbenches, brackets, guide rails, etc. Its high strength and good processing performance can meet the requirements of mechanical manufacturing
Can be used for indoor and outdoor decoration, such as stair handrails, railings, screens, etc., to play a decorative and protective role
304 stainless steel angle stock size table
|
Drawing Equal angle(Axt) |
|||||
| Size(mm) | Theoretical weight (kg/m) |
Size(mm) | Theoretical weight (kg/m) |
Size(mm) | Theoretical weight (kg/m) |
| 25x3 | 1.124 | 75x7 | 7.976 | 110x14 | 22.809 |
| 25x4 | 1.459 | 75x8 | 9.03 | 125x8 | 15.504 |
| 30x3 | 1.373 | 75x10 | 11.089 | 125x10 | 19.133 |
| 30x4 | 1.786 | 80x6 | 7.376 | 125x12 | 22.696 |
| 40x3 | 1.852 | 80x7 | 8.525 | 125x14 | 26.193 |
| 40x4 | 2.422 | 80x8 | 9.658 | 140x10 | 21.488 |
| 40x5 | 2.976 | 80x10 | 11.874 | 140x12 | 25.522 |
| 50x4 | 3.059 | 90x6 | 8.35 | 140x14 | 29.49 |
| 50x5 | 3.77 | 90x7 | 9.656 | 140x16 | 35.393 |
| 50x6 | 4.465 | 90x8 | 10.946 | 160x10 | 24.729 |
| 60x5 | 4.52 | 90x10 | 13.476 | 160x12 | 29.391 |
| 60x6 | 5.42 | 90x12 | 15.94 | 160x14 | 33.987 |
| 63x5 | 4.822 | 100x6 | 9.366 | 160x16 | 38.518 |
| 63x6 | 5.721 | 100x7 | 10.83 | 180x12 | 33.159 |
| 63x8 | 7.469 | 100x8 | 12.276 | 180x14 | 38.383 |
| 63x10 | 9.151 | 100x10 | 15.12 | 180x16 | 43.542 |
| 70x5 | 5.397 | 100x12 | 20.611 | 180x185 | 48.634 |
| 70x6 | 6.406 | 100x16 | 23.257 | 200x14 | 42.894 |
| 70x7 | 7.398 | 110x7 | 11.928 | 200x16 | 48.68 |
| 70x8 | 8.373 | 110x8 | 13.532 | 200x18 | 54.401 |
| 75x5 | 5.818 | 110x10 | 16.69 | 200x20 | 60.056 |
Chemical composition table of stainless steel angle
| Grade | Chemical Composition (%) | |||||||
| C | Si | Mn | P | S | Ni | Cr | Mo | |
| 201 | ≤0.15 | ≤1.00 | 5.5~7.5 | ≤0.060 | ≤0.030 | 3.50~5.50 | 16.00~18.00 | |
| 301 | ≤0.15 | ≤1.00 | ≤2.00 | ≤0.045 | ≤0.030 | 6.00~8.00 | 16.00~18.00 | |
| 302 | ≤0.15 | ≤1.00 | ≤2.00 | ≤0.045 | ≤0.030 | 8.00~10.00 | 17.00~19.00 | |
| 304 | ≤0.08 | ≤1.00 | ≤2.00 | ≤0.045 | ≤0.030 | 8.00~10.50 | 18.00~20.00 | - |
| 304L | ≤0.030 | ≤1.00 | ≤2.00 | ≤0.045 | ≤0.030 | 9.00~13.50 | 18.00~20.00 | - |
| 316 | ≤0.045 | ≤1.00 | ≤2.00 | ≤0.045 | ≤0.030 | 10.00~14.00 | 10.00~18.00 | 2.00~3.00 |
| 316L | ≤0.030 | ≤1.00 | ≤2.00 | ≤0.045 | ≤0.030 | 12.00~15.00 | 16.00~18.00 | 2.00~3.00 |
