201 202 304 316 430 Hot Rolled Stainless Steel Plate TISCO SUS304
201 202 304 316 430 Stainless Steel Plate TISCO SUS304 Stainless Steel Plate
Product Description
Product Name: 201 202 304 316 430 Stainless Steel Plate TISCO SUS304 Stainless Steel Plate
Brand: TISCO
Thickness: Cold Rolled 0.3-6.0mm; Hot Rolled 2.0-50.0mm
Width: 1000mm - 2000mm
Length: 2000mm-6000mm
Grade: SUS201, SUS304, SUS316, SUS430
Standard: JIS, ASTM, DIN, EN, AISI, GB
Surface: 2B, BA, HL, No.1-No.4, 1D, 2D, Mirror
Size: 1000*2000MM, 1219*2438MM, 1219*3000MM, 1500*3000MM
Remarks: Special size can be customized
Certificate: MTC
MOQ: 1ton
Stainless steel series
There are four main series, which are mainly classified according to their crystal structure:
Austenitic stainless steel
200 series: 201, 202
300 series: 304, 304L, 309S, 310S, 316, 316L, 316Ti, 317L, 321, 347
Ferritic stainless steel
409L, 430, 436, 439, 441, 444, 446
Martensitic stainless steel
410, 410S, 416, 420J1, 420J2, 431, 440, 17-4PH
Duplex stainless steel and special stainless steel: S31803, S32205, S32750, 630, 904L
Stainless steel specifications
2B cold-rolled sheet/coil
Thickness 0.4-6mm; No. 1 hot-rolled coil thickness 3.0-16mm;
No. 1 hot-rolled sheet thickness 3.0-100mm;
Width:
Cold-rolled 1000/1219/1500mm; Hot-rolled 1500/1800/2000mm;
Length
: Standard length: 2000/2438/3000/6000mm or as required;
Strip: Width less than 600mm, commonly 2B cold-rolled thickness;
Surface Treatment
|
Surface |
Characteristic |
Processing Technology |
|
N0.1 |
Original |
Pickled after hot rolling |
|
2D |
Blunt |
Hot rolling + annealing shot peening pickling + cold rolling + annealing pickling |
|
2B |
Blurred |
Hot rolling + annealing shot peening pickling + cold rolling + annealing pickling |
|
N0.3 |
Matte |
Polishing and tempering rolling with 100-120 mesh abrasive materials |
|
N0.4 |
Matte |
Polishing and tempering rolling with 150-180 mesh abrasive material |
|
NO.240 |
Matte |
Polishing and tempering rolling with 240 mesh abrasive materials |
|
NO.320 |
Matte |
Polishing and tempering rolling with 320 mesh abrasive materials |
|
NO.400 |
Matte |
Polishing and tempering rolling with 400 mesh abrasive materials |
|
HL |
Brushed |
Grind the surface of the steel belt with an appropriate grinding grain size to make it show a certain longitudinal texture |
|
BA |
Bright |
The surface is annealed and shows high reflectivity |
|
6K |
Mirror |
Rough grinding and polishing |
|
8K |
Mirror |
Fine grinding and polishing |
Technical Parameters
|
Product Name |
Stainless Steel Sheet/Plate |
|
Length |
As required |
|
Width |
3mm-2000mm or as required |
|
Thickness |
0.1mm-300mm or as required |
|
Standard |
AISI,ASTM,DIN,JIS,GB,JIS,SUS,EN,etc |
|
Technique |
Hot rolled / cold rolled |
|
Surface Treatment |
2B or according to customer requirement |
|
Thickness Tolerance |
±0.01mm |
|
Material |
201, 202, 301, 302, 303, 304, 304L, 304H, 310S, 316, 316L, 317L, 321,310S 309S, 410, 410S,420, 430, 431, 440A,904L |
|
Application |
It is widely used in high temperature applications, medical devices, building materials, chemistry, food industry, agriculture,ship components. |
|
MOQ |
1 ton , We can accept sample order. |
|
Shipment Time |
Within 7-15 workdays after receiving deposit or L/C |
|
Export Packing |
Waterproof paper, and steel strip packed. |

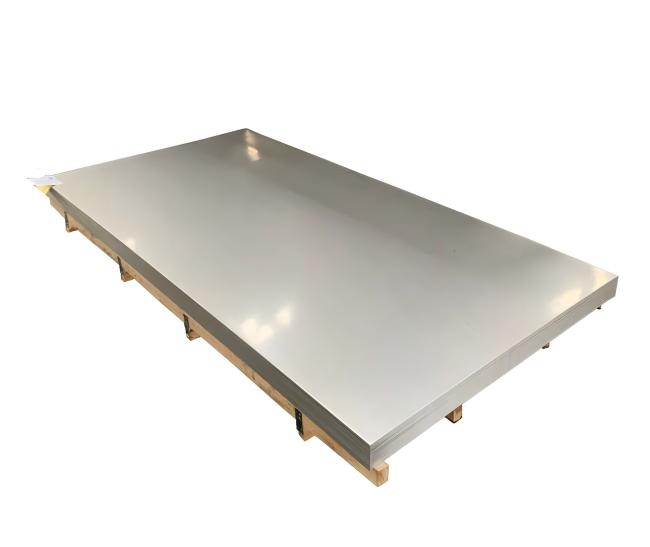

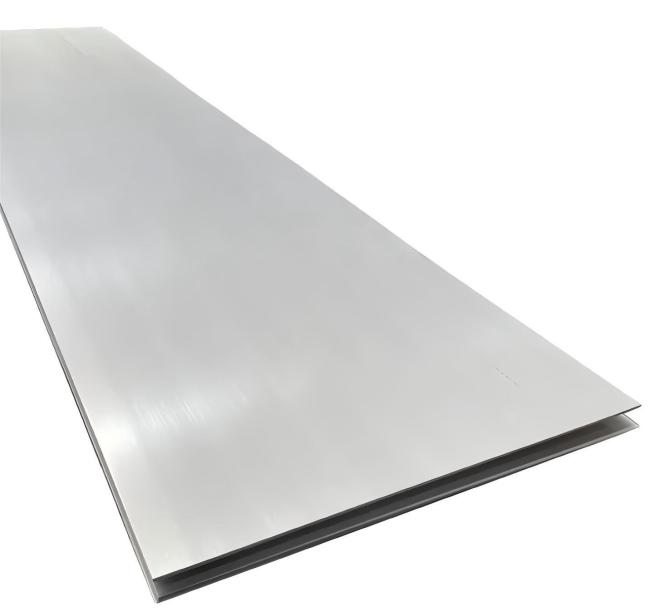

Product Display
Standard Size:
1219 x 2438 mm (4 ft x 8 ft)
1219 x 3048 mm (4 ft x 10 ft)
1000 x 2000 mm
1250X2500mm
1500X3000mm
Base Metals:
Stainless steel 304, 304L, 316, 316L, 310S, 430, 201, etc.
Support customization, material complete, 2b surface above can be customized, free samples can be provided.
Packaging & Shipping:
|
Packing |
1.Generally package:Anti-water paper+strapped with min three strapping strips. |
|
2.Standard exporting package: Anti-water paper and plastic+covered by iron sheet+ strapped withmin three strapping strips. |
|
|
3.Excellent package:Anti-water paper and plastic film+ covered by iron sheet+ strapped with minthree strapping strips+fixed on the iron or wooden pallets by strapping strips. |
|
|
Shipping |
1.Shipping by containers |
|
2.Shipping by bulk ship. |
EDEST STEEL-Diverse product range, strict implementation of various international standards
EDEST provides a variety of high-quality steel to meet your diverse industrial needs.
Our product line includes stainless steel, carbon steel, alloy steel, nickel, copper, aluminum and titanium alloy materials, tubes, plates, bars, profiles are complete, can meet a variety of complex and demanding application environments.
Manufacturing capabilities
Hot rolled stainless steel plate
* Thickness: 3.0mm - 300mm
* Width: 1000mm, (4′)1220mm, 1500mm, 1800mm, 2000mm-3000mm
* Length: produced according to customer requirements
* Standard size: 1000*2000mm, 1219*2438mm, 1220*2440mm, 1250*2500mm, 1500*3000mm, 1500*6000mm, 1800*6000mm, 2000*6000mm, 4'*8'
* Edge: rolled edge/seam edge
* Technology: hot rolled
* Surface: No.1/1D/pickling
* Standard: ASTM A240/A480M, ASTM B 668, ASTM B168/SB168, ASTM B443/SB443, JIS G4303, G4305, BS 1449, DIN 17441, etc.
* Grades: 201, 301, 304, 304L, 316, 316L, 316Ti, 321, 317L, 310S, 347H, 410, 420, 409L, 430, 440C, 444, 441, S32760, 2205, 904L, 630, 631, 253Ma, 254SMo, Incoloy 926, Inconel 625, Monel 400, etc.
* Processing services: bending, welding, uncoiling, punching, cutting, ETC.
Cold rolled stainless steel plate
* Thickness: 0.3mm - 16.0mm
* Width: 1000mm, (4′)1220mm, 1500mm, 1800mm, 2000mm
* Length: Cut according to customer requirements
* Standard size: 1000*2000mm, 1219*2438mm, 1220*2440mm, 1250*2500mm,
1500*3000mm, 1500*6000mm, 1800*6000mm, 2000*6000mm, 4'*8' *
Edge: Milling edge/Seam edge
* Technology: Cold rolled
* Surface: 2B/BA/HL/8K Mirror/BA/2D/Titanium coating with thin film
* Standard: ASTM A240/A480M, ASTM B 668, ASTM B168/SB168, ASTM B443/SB443, JIS G4303, G4305, BS 1449, DIN 17441, etc.
* Grades: 201, 301, 304, 304L, 316, 316L, 316Ti, 321, 317L, 310S, 347H, 410, 420, 409L, 430, 440C, 444, 441, S32760, 2205, 904L, 630, 631, 253Ma, 254SMo, Incoloy 926, Inconel 625, Monel 400, etc.
* Processing services: bending, welding, uncoiling, punching, cutting, etc.

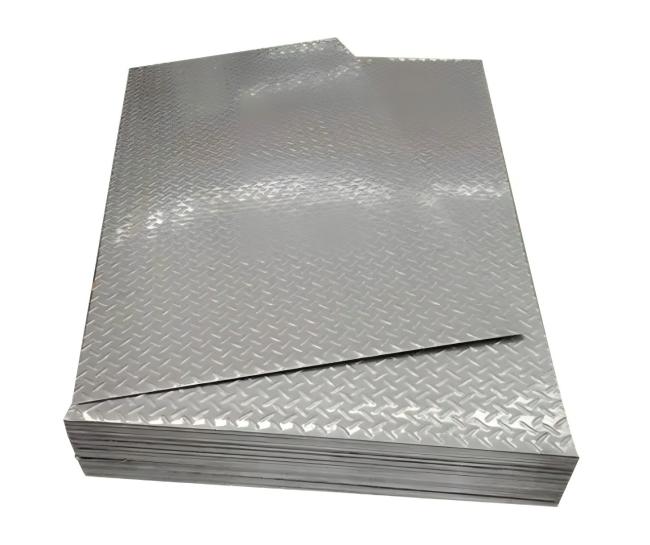

Hot rolled stainless steel pattern plate
*Thickness: 1.0mm - 10mm
*Width: 600mm - 1800mm
*Length: 2000mm - 6000mm
*Edge: rolled edge/seam edge
*Technology: hot rolled
*Surface: No.1/1D/pickling
*Standard: ASTM A240/A480
*Grade: 304, 316L, 430
*Pattern: checkered pattern, diamond pattern, lentil pattern, leaf pattern, etc.
