KBZE 155-0822 155-0823 CAT WHEEL EXCAVATOR 155-0839 FIRST CARRIER ASSY FITS M312 M313 M315 M316 M317
Price:
DIRECTLY FACTORY PRICE
MOQ:
Acceptable Trial Order
Delivery Time:
3-5DAYS AFTER RECEIVED PAYMENT(WORKING DAYS)
Brand:
KBZE
Product Description
Product Description
KBZE 155-0822 155-0823 CAT WHEEL EXCAVATOR 155-0839 FIRST CARRIER ASSY FITS M312 M313 M315 M316 M317
Product Details
Model NO.
155-0822 155-0823 155-0839
Type
GEAR
Application
CAT EXCAVATOR
Certification
CE, ISO9001: 2000
Condition
New
MOQ
1 Piece
Quality
High-Quality
Part Name
SWING DEVICE GEAR
Part Number
155-0822 155-0823 155-0839
Transport Package
Standard
Specification
STANDARD
Origin
CHINA

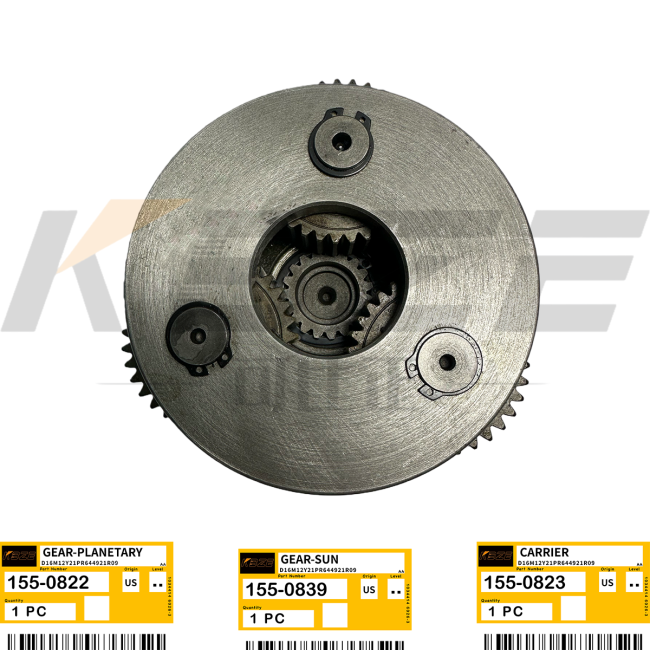

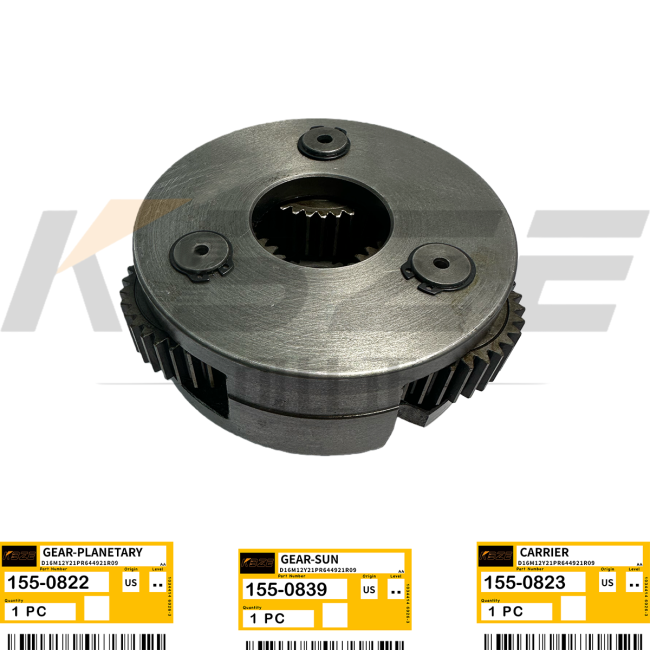

PRODUCT SHOWS:
PRODUCT SKETCH:
| Pos. | Part No | Qty | Parts name | Comments |
| 1 | 155-0821 | [1] | SHAFT | |
| 2 | 155-0822 | [3] | GEAR-PLANETARY | |
| 3 | 155-0823 | [1] | CARRIER | |
| 4 | 155-0824 | [3] | PIN | |
| 5 | 082-3084 | [6] | WASHER | |
| 6 | 082-3085 | [6] | WASHER | |
| 7 | 132-4292 | [63] | BEARING AS-NEEDLE | |
| 8 | 096-0919 | [3] | RING-RETAINING | |
| 9 | 155-0827 | [1] | HOUSING AS-SWING | |
| 10 | 155-0828 | [1] | SEAL-LIP TYPE | |
| 11 | 155-0829 | [1] | SEAL | |
| 12 | 155-0830 | [1] | PINION | |
| 13 | 155-0831 | [1] | WASHER-SPECIAL | |
| 14 | 155-0832 | [1] | BEARING AS-ROLLER | |
| 15 | 155-0833 | [1] | BEARING AS-ROLLER | |
| 16 | 155-0835 | [2] | NUT-SLOTTED | |
| 17 | 155-0834 | [1] | RING | |
| 19 | 155-0836 | [1] | CARRIER-PLANETARY | |
| 20 | 155-0837 | [4] | GEAR-PLANETARY | |
| 21 | 155-0838 | [4] | BEARING AS-ROLLER | |
| 22 | 1H-8647 | [4] | RING-SNAP | |
| 23 | 098-2981 | [3] | SHIM (2-MM THK) | |
| 24 | 110-4737 | [1] | RING-RETAINING | |
| 25 | 121-8088 | [2] | BALL BEARING | |
| 26 | 155-0839 | [1] | GEAR-SUN | |
| 27 | 179-3153 | [2] | SHIM (2.5-MM THK) | |
| 28 | 6V-5201 | [2] | RING-RETAINING | |
| 29 | 155-0848 | [1] | HOUSING-BRAKE | |
| 30 | 155-0849 | [1] | ORIFICE | |
| 31 | 8T-4139 | [4] | BOLT (M12X1.75X30-MM) | |
| 32 | 201-7396 | [1] | SEAL-O-RING | |
| 33 | 155-0850 | [1] | PISTON | |
| 34 | 155-0851 | [1] | SEAL-LIP TYPE | |
| 35 | 155-0852 | [1] | SEAL-LIP TYPE | |
| 36 | 179-3151 | [1] | SPRING | |
| 37 | 179-3154 | [1] | SHIM (3.5-MM THK) | |
| 38 | 132-4268 | [4] | DISC-CLUTCH (1.7-MM THK) | |
| 39 | 132-4262 | [5] | DISC-CLUTCH (1.4-MM THK) | |
| 40 | 132-4263 | [1] | DISC-CLUTCH (1.2-MM THK) | |
| 41 | 132-4265 | [1] | DISC-CLUTCH (1.6-MM THK) | |
| 42 | 132-4266 | [1] | DISC-CLUTCH (1.8-MM THK) | |
| 43 | 9X-6574 | [1] | RING-RETAINING | |
| 44 | 155-0855 | [1] | SLEEVE | |
| 45 | 8T-0707 | [1] | RING-RETAINING (INTERNAL) | |
| 46 | 179-3560 | [1] | SEAL-O-RING | |
| B | USE AS REQUIRED | |||
| M | METRIC PART | |||
