KBZE 2N-2839 CAT 104-3170 128-6238 SPARK PLUG REPLACE FOR G3304 G3306 G3406 G3408 G3412 ENGINE
Price:
DIRECTLY FACTORY PRICE
MOQ:
Acceptable Trial Order
Delivery Time:
3-5DAYS AFTER RECEIVED PAYMENT(WORKING DAYS)
Brand:
KBZE
Product Description
Product Description

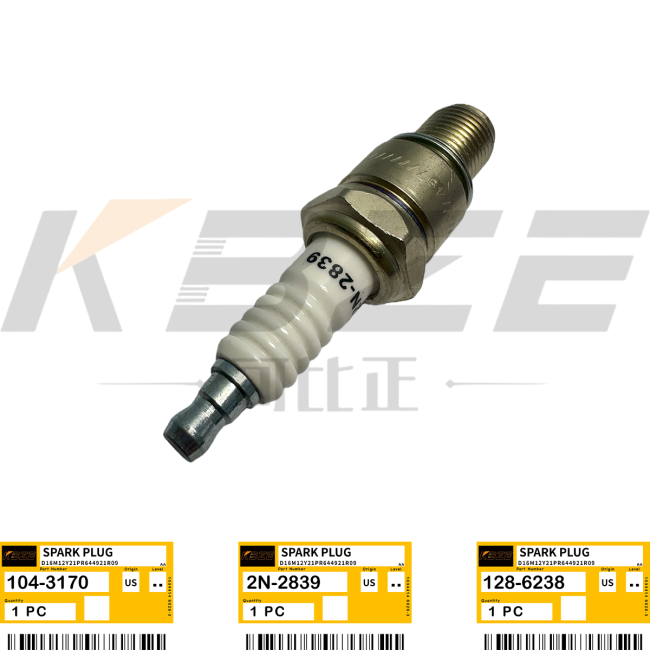

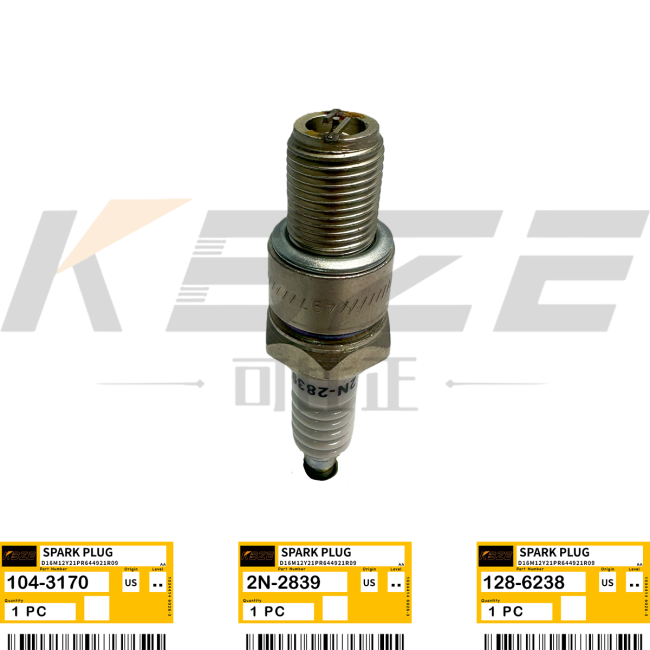

KBZE 2N-2839 CAT 104-3170 128-6238 SPARK PLUG REPLACE FOR G3304 G3306 G3406 G3408 G3412 ENGINE
Product Details
Model NO.
2N-2839 104-3170
128-6238
128-6238
Type
SPARK PLUG
Application
CAT EXCAVATOR
Certification
CE, ISO9001: 2000
Condition
New
MOQ
1 Piece
Quality
High-Quality
Part Name
SPARK PLUG
Part Number
2N-2839 104-3170
128-6238
128-6238
Transport Package
Standard
Specification
STANDARD
Origin
CHINA
PRODUCT SHOWS:

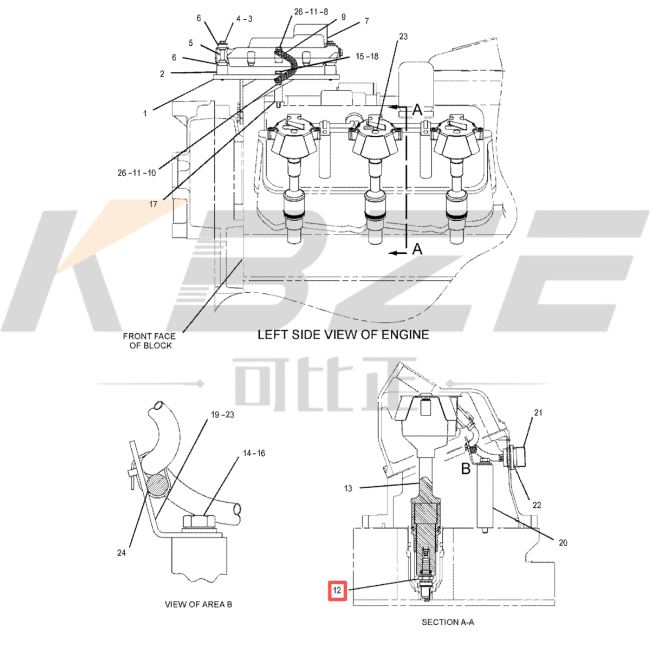

PRODUCT SKETCH:
| Pos. | Part No | Qty | Parts name | Comments |
| 1 | 100-6900 | [1] | BRACKET AS-CONTROL | |
| 2 | 4P-7481 | [4] | SPACER (6.6X25X21-MM THK) | |
| 3 | 9X-6165 | [4] | WASHER (6.5X22X2.5-MM THK) | |
| 4 | 8F-8178 | [4] | BOLT (1/4-20X3.25-IN) | |
| 5 | 9X-9838 | [4] | SPACER (6.6X9.5X46.9-MM THK) | |
| 6 | 9X-9896 | [8] | MOUNT (ISOLATION) | |
| 7 | 128-2500 | [1] | CONTROL GP-ENGINE ELECTRONIC | |
| 8 | 032-0243 | [1] | SCREW (1/4-20X0.625-IN) | |
| 9 | 7X-6035 | [1] | STRAP-GROUNDING | |
| 10 | 0S-1614 | [1] | BOLT (1/4-20X0.5-IN) | |
| 11 | 1H-3338 | [2] | LOCKWASHER | |
| 12 | 104-3170 | [12] | PLUG AS-SPARK | |
| (EACH INCLUDES) | ||||
| [1] | GASKET-PLUG | |||
| 13 | 437-4127 | [12] | TRANSFORMER GP-IGNITION | |
| 14 | 3H-5932 | [8] | BOLT (5/16-18X4.5-IN) | |
| 15 | 9M-1974 | [1] | WASHER-HARD (8.8X16X2-MM THK) | |
| 16 | 3E-4352 | [8] | WASHER-HARD (8.8X20.5X2.5-MM THK) | |
| 17 | 2M-6835 | [1] | PIPE | |
| 18 | 1D-4540 | [1] | BOLT (5/16-18X2.75-IN) | |
| 19 | 101-3625 | [8] | CLIP (LADDER) | |
| 20 | 4J-4710 | [8] | SPACER (0.492X0.675X4-IN THK) | |
| 21 | 110-3888 | [4] | HARNESS AS-WIRING (IGNITION) | |
| (EACH INCLUDES) | ||||
| 155-2270 | [3] | KIT-CONNECTING PLUG (2-PIN) | ||
| (EACH INCLUDES PLUG AS, WEDGE & INTERFACE SEAL) | ||||
| 8T-8730 | [6] | SOCKET-CONNECTOR (16-GA TO 18-GA) | ||
| 9X-0481 | [1] | RECEPTACLE AS-CONNECTOR (6-PIN) | ||
| 22 | 9X-2543 | [16] | SCREW-MACHINE (3-48X12.7-MM) | |
| 23 | 108-9656 | [12] | STRAP-CABLE | |
| 24 | 117-3204 | [4] | ROD-SUPPORT | |
| 26 | 5P-0537 | [2] | WASHER-HARD (7.2X14.5X2-MM THK) | |
| C | CHANGE FROM PREVIOUS TYPE | |||
| Y | SEPARATE ILLUSTRATION | |||
