Hastelloy Small Plate Heat Exchanger Lightweight AN45L4 AN40L3 Grade
Product Description
Hastelloy Heat Exchanger Plates AN45L4 AN40L3 Grade Model Nichel Heater Exchange Plates

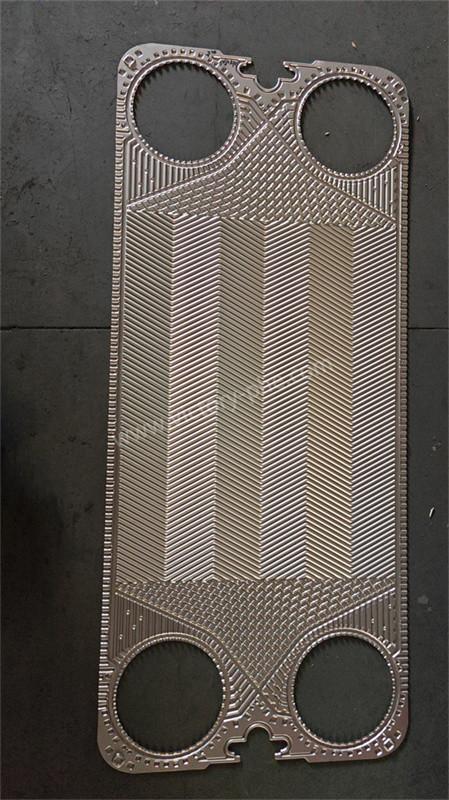

Heat Exchanger Plates
- Plate heat exchanger is a high-efficiency heat exchanger composed of a series of stacked metal sheets with a certain corrugated shape. Thin rectangular channels are formed between various plates, and heat is exchanged through the plates. Plate heat exchanger is an ideal equipment for liquid-liquid and liquid-vapor heat exchange.
- It has the characteristics of high heat exchange efficiency, small heat loss, compact and lightweight structure, small footprint, wide application and long service life. Under the same pressure loss, its heat transfer coefficient is 3-5 times higher than that of tubular heat exchangers, its floor space is one-third that of tubular heat exchangers, and its heat recovery rate can be as high as more than 90%.
- The thickness of the plates of the plate heat exchanger is only 0.4~0.8mm, while the thickness of the heat exchange tubes of the shell and tube heat exchanger is 2.0~2.5mm. The shell of the shell and tube type is much heavier than the frame of the plate heat exchanger. , Plate heat exchangers are generally only about 1/5 of the weight of shell and tube heat exchangers.
| Brand | Model |
|
ACCESSEN |
AU3,AU5,AS6,AU8,AU10L1,AU10L2,AU15L1,AU15L2,AU15M,AU20,AU20M AN5,AN10L1,AN10L2,AN10M,AN15L1,AN15L2,AU25L1,AU25L3 AN20,AN25L1,AN25L2,AN30L1,AN30L2,AN30L3,AN30L4 AN35L1,AN35L2,AN35L3,AN35L4,AN40L1,AN40L2,AN40L3,AN40L4 AN45L1,AN45L2,AN45L3,AN45L4,AS20,AS25,AC190,AC230,AP20,AP25,AP35 |
| Material | Specification |
| Stainless Steel |
SUS304 316 316L 310S 904 |
| Titanium and titanium-palladium alloy | TAi TAi-Pd |
| Hastelloy |
C276 D205 B2G |
| Nickel | Ni200 Ni201 |
| Molybdenum | 254 |
Applacations
Products are mainly suitable for ACCESSEN/GEA (Kelvion)/ APV/ Sondex/ Tranter/ Hisaka/ API/ Funke/ Vicarb/ Mueller/ SWEP/ Fischer/ AGC/ Thermalwave/ ITT/ LHE/ DHP, etc.
| Plate material | Suitable for fluids |
| Stainless steel (SUS304.316, etc.) | Purified water, river water, edible oil, mineral oil |
| Titanium and titanium palladium (Ti, Ti-Pd) | Sea water, salt water, salt compounds |
| 20Cr,18Ni,6Mo(254SMO) | Dilute sulfuric acid, dilute salt aqueous solution, inorganic aqueous solution |
| Nickel (Ni) | High temperature, high concentration caustic soda |
| HASTELLOY alloy (C276, D205, B2G) | Concentrated sulfuric acid, hydrochloric acid, phosphoric acid |
