Product Description

Customizable Heat Exchanger Plate for Various Flow Rates and Temperature Needs

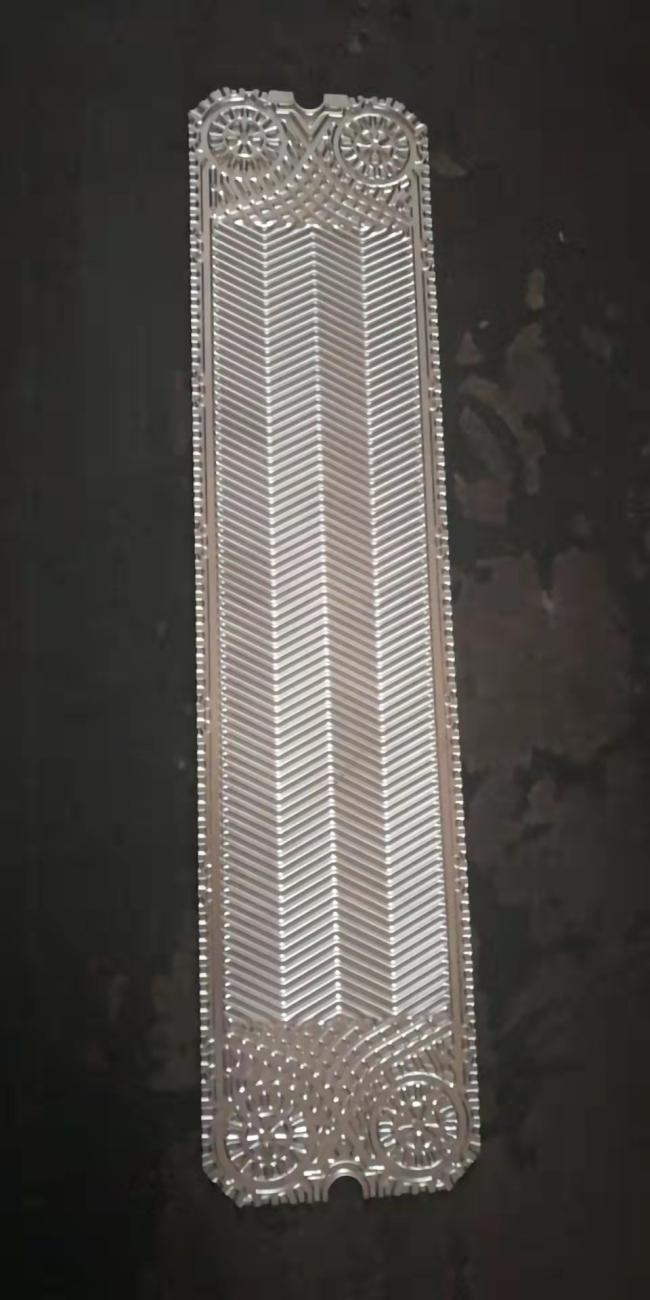

Heat Exchanger Plates

• Flexibility: The heat exchanger plate can accommodate variations in operating conditions, making it suitable for dynamic industrial processes.
• Cost-Effective Solution: Its versatility and adaptability reduce the need for multiple heat exchanger units, offering a cost-effective alternative.
• Enhanced Heat Transfer: Designed to maximize heat transfer efficiency, contributing to energy savings and process optimization.
• Reliability: Built to withstand harsh operational conditions, ensuring consistent performance and longevity.

Applications:

• HVAC systems
• Industrial process heating and cooling
• Refrigeration systems
• Waste heat recovery
• Chemical processing
• Oil and gas processing
• Power generation

The Versatile Heat Exchanger Plate is the ultimate solution for businesses seeking an adaptable, efficient, and reliable heat transfer component capable of meeting diverse thermal requirements.

Products are mainly suitable for ACCESSEN/GEA (Kelvion)/ APV/ Sondex/ Tranter/ Hisaka/ API/ Funke/ Vicarb/ Mueller/ SWEP/ Fischer/ AGC/ Thermalwave/ ITT/ LHE/ DHP, etc.

Applacations

Plate heat exchanger plate thickness configuration

• AISI 304 is usually 0.4 or 0.5 mm thickness
• AISI 316 is always 0.5 and 0.6 mm
• 254 SMO (high alloy) typically 0.6 mm
• Titanium plates are always 0.5 and 0.6 mm
• Some have thicker plates (for high pressure applications)
• Some PHEs have 0.4 mm (low pressure operation)
• Hastelloy C-276 (nickel alloy) typically 0.6 mm

Production Process:

• Raw material preparation: High-quality stainless steel plates are selected as raw materials due to their excellent corrosion resistance and thermal conductivity. The plate thickness is determined based on product specifications and design requirements.
• Cutting and leveling: The stainless steel plates are accurately cut using machine tools to meet the design requirements. After cutting, leveling treatment is performed to ensure a smooth and even surface.
• Stamping: The flattened plates undergo stamping using a hydraulic press to create specific herringbone patterns. The resulting plates have a high turbulence coefficient, promoting efficient heat transfer. Precise control is maintained during the stamping process to prevent plate deformation or damage.
• Surface treatment: The plates undergo surface treatment such as polishing, sandblasting, or coating to enhance corrosion resistance and heat transfer performance. The choice of treatment method depends on specific requirements.
• Assembly and inspection: The plates are assembled according to the design requirements, forming a detachable plate heat exchanger with rubber gasket seals or a fully welded plate heat exchanger through argon arc welding. Tight fitting and absence of gaps are ensured during assembly. A rigorous performance pressure test is conducted after assembly, and a factory report is issued to verify compliance with quality standards.
