Vicarb Heat Exchanger Plates V20 V28 V45 V60 Durable and for Pharmaceutical Manufacturing
Price:
50 - 500pieces $18-$27
MOQ:
10pcs
Delivery Time:
15-20 days
Brand:
Victory
Product Description
Product Description
Vicarb Heat Exchanger Plates V20 V28 V45 V60 Durable and for Pharmaceutical Manufacturing

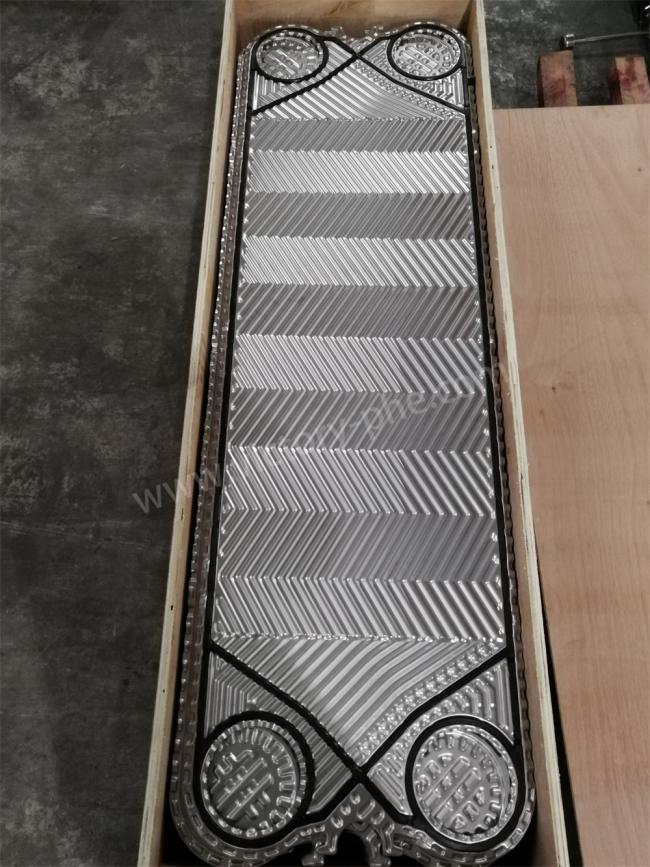

Heat Exchanger Plates
- Sterilization Processes: The V4, V8, and VU8 plates are ideal for the sterilization of equipment, vessels, and components in pharmaceutical manufacturing, ensuring the highest levels of sterility throughout the production process.
- Heat Exchange in Cleanroom Environments: These plates can be utilized for heat exchange processes within cleanroom environments critical for pharmaceutical production.
- Steam Heating and Sterilization Applications: They are suitable for critical steam heating and sterilization applications in pharmaceutical formulations and active pharmaceutical ingredient (API) manufacturing.
- Controlled Temperature Processes: Designed to handle controlled temperature processes for the sterilization of pharmaceutical products before packaging, ensuring product sterility and integrity.
- Heat Treatment for Pharmaceutical Compounds: The plates are well-suited for heat treatment processes to guarantee the sterility of pharmaceutical compounds and products.
-
In summary, the V4, V8, and VU8 Optimized Design Heat Exchanger Plates offer tailored solutions for sterilization in pharmaceutical production, providing efficient, reliable, and compliant heat exchange capabilities to ensure the highest levels of sterility essential for pharmaceutical manufacturing processes.
| Brand | Model |
|
|
V4,V8,VU8,V13,V20,V28,V45,V60 |
| Material | Specification |
| Stainless Steel |
SUS304 316 316L 310S 904 |
| Titanium and titanium-palladium alloy | TAi TAi-Pd |
| Hastelloy |
C276 D205 B2G |
| Nickel | Ni200 Ni201 |
| Molybdenum | 254 |
Products are mainly suitable for ACCESSEN/GEA (Kelvion)/ APV/ Sondex/ Tranter/ Hisaka/ API/ Funke/ Vicarb/ Mueller/ SWEP/ Fischer/ AGC/ Thermalwave/ ITT/ LHE/ DHP, etc.
Applacations
| Plate material | Suitable for fluids |
| Stainless steel (SUS304.316, etc.) | Purified water, river water, edible oil, mineral oil |
| Titanium and titanium palladium (Ti, Ti-Pd) | Sea water, salt water, salt compounds |
| 20Cr,18Ni,6Mo(254SMO) | Dilute sulfuric acid, dilute salt aqueous solution, inorganic aqueous solution |
| Nickel (Ni) | High temperature, high concentration caustic soda |
| HASTELLOY alloy (C276, D205, B2G) | Concentrated sulfuric acid, hydrochloric acid, phosphoric acid |
Plate heat exchanger plate thickness configuration
- AISI 304 is usually 0.4 or 0.5 mm thickness
- AISI 316 is always 0.5 and 0.6 mm
- 254 SMO (high alloy) typically 0.6 mm
- Titanium plates are always 0.5 and 0.6 mm
- Some have thicker plates (for high pressure applications)
- Some PHEs have 0.4 mm (low pressure operation)
- Hastelloy C-276 (nickel alloy) typically 0.6 mm
Production Process:
- Raw material preparation: High-quality stainless steel plates are selected as raw materials due to their excellent corrosion resistance and thermal conductivity. The plate thickness is determined based on product specifications and design requirements.
- Cutting and leveling: The stainless steel plates are accurately cut using machine tools to meet the design requirements. After cutting, leveling treatment is performed to ensure a smooth and even surface.
- Stamping: The flattened plates undergo stamping using a hydraulic press to create specific herringbone patterns. The resulting plates have a high turbulence coefficient, promoting efficient heat transfer. Precise control is maintained during the stamping process to prevent plate deformation or damage.
- Surface treatment: The plates undergo surface treatment such as polishing, sandblasting, or coating to enhance corrosion resistance and heat transfer performance. The choice of treatment method depends on specific requirements.
- Assembly and inspection: The plates are assembled according to the design requirements, forming a detachable plate heat exchanger with rubber gasket seals or a fully welded plate heat exchanger through argon arc welding. Tight fitting and absence of gaps are ensured during assembly. A rigorous performance pressure test is conducted after assembly, and a factory report is issued to verify compliance with quality standards.
![]()
![]()
