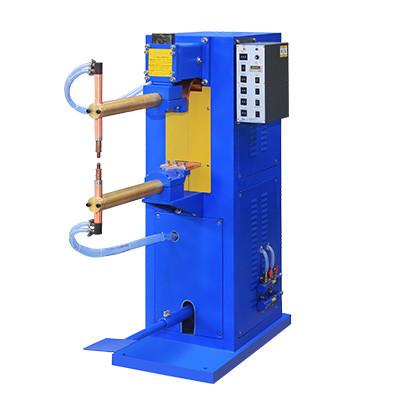

Accurate Pedal Foot Operated Spot Welding Machine Resistance 10KA
Pedal Type Resistance Spot Welding Machine 10KA Easy Operation
Detailed Description Of Pedal Type Resistance Spot Welding Machine
1. The lower electrode arm can be adjusted from up to down, from left to right, from front to back.
2. The power structure which is transmitted by reasonable pressurization to the leverage together with power is flexible, reliable conductivity and long service life.
3. Low production cost.
4. Easy operation.
Simple Structure with Durable Quality
Easy Operation for worker. Low machine cost
Plenty of machines in stock, fast delivery
We keep more than hundreds set of machines in stock.
We can deliver the machines to you within 1 week.
Features Of Pedal Type Resistance Spot Welding Machine
1. Pedallever control circuit. Main engin without electricity when do not help pedal. It can save electricity.
2. Using timing control. Even the work piece is still being pressed while welding, current can beautomatically cut off on time and reduce the human factor. Easier operation. The quality of welding spot is more stable.
3. Timing using electronic controller stepless regulation. Setting range from 0.02 to 2 seconds ( usually the required time of work piece is within 0.5 seconds) accurately repeat the selection.
Application And Sample Of Pedal Type Resistance Spot Welding Machine
Iron wire products, metal decorative lighting, kitchen utensils, automobile industries, small appliances, small hardware, etc
Technical parameter Of Pedal Type Resistance Spot Welding Machine
| Model | Input Voltage | Input Power | Output Current | Electrode Distance | Electrode Stroke |
| V | KW | KA | mm | mm | |
| WL-FT-16K | 380 | 16 | 10 | 100 | 30 |
| WL-FT-25K | 380 | 25 | 12 | 100 | 30 |
| WL-FT-35K | 380 | 35 | 14 | 100 | 30 |
| WL-FTA-50K | 380 | 50 | 18 | 100 | 30 |
| WL-FTB-50K | 380 | 50 | 18 | 100 | 30 |
| WL-FTC-50K | 380 | 50 | 18 | 100 | 30 |
Application Of Pedal Type Resistance Spot Welding Machine
Iron wire products, metal decorative lighting, kitchen utensils, automobile industries, small appliances, small hardware, etc

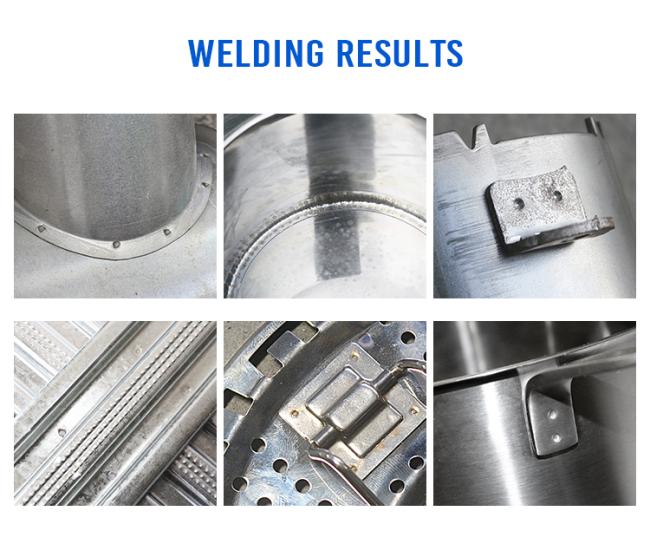

Sample Of Pedal Type Resistance Spot Welding Machine
