IBC Cage Base Frame Welding Machine For IBC 1000L Water Tank Stainless Steel Cage

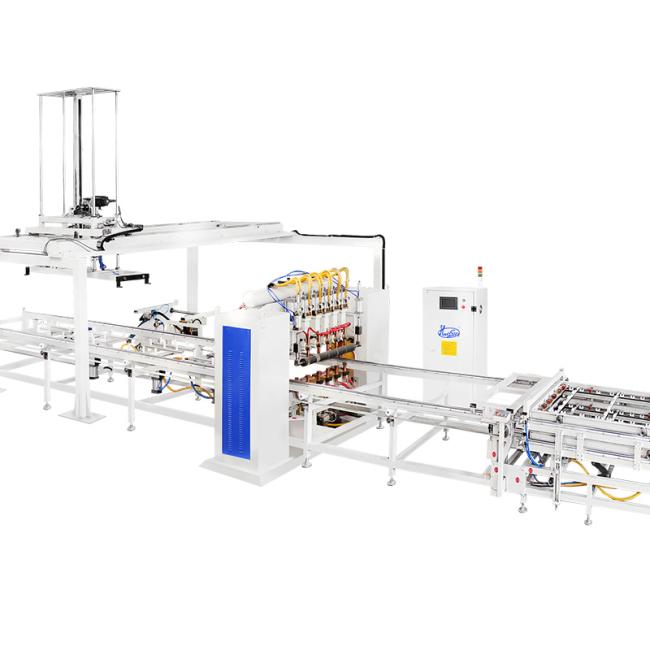

Hwashi IBC Cage Base Frame Welding Machine For IBC 1000L Water Tank Stainless Steel Cage
Description of Hwashi IBC Cage Base Frame Welding Machine For IBC 1000L Water Tank Stainles Steel Cage
Hwashi IBC Cage Base Frame Welding Machine For IBC 1000L Water Tank Stainless Steel Cage adopts horizontal structure and 7 welding heads for completing the welding of base frame. The operator only need to load and unload the product. The machine will do the welding automatically. We can add the automatic loading and unloading device for the base frame welding machine as per your requirement.
Features of Hwashi IBC Cage Base Frame Welding Machine For IBC 1000L Water Tank Stainless Steel Cage
| Gantry structure with the advantage of high rigidity and stable running | Medium frequency inverter power supply system with the features of electricity and energy saving |
Automatic stepping welding and automatic demolding device |
6 sets of welding head and 4 sets of power supply systems(The welding current of each single point could be adjusted independently in order to ensure the reliability of welding spot. |
Hole Making Efficiency and Quality
Hwashi IBC Cage Base Frame Welding Machine For IBC 1000L Water Tank Stainless Steel Cage is using hydraulic force. It will takes about 25-30sec to complete the complete process.
- Pressing heads with pressing mold
- Hydraulic station
- Punching head locating panel
- Left-right, forward-backward adjustable loacing panel can make the punching position in a wider using range.

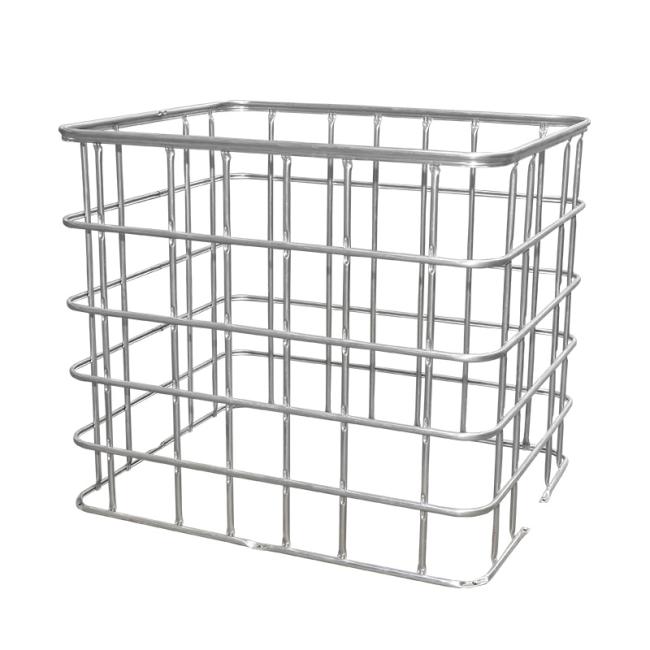

Samples of Hwashi IBC Cage Base Frame Welding Machine For IBC 1000L Water Tank Stainless Steel Cage
Parameters of Hwashi IBC Cage Base Frame Welding Machine For IBC 1000L Water Tank Stainless Steel Cage
| Items | Data |
|---|---|
| Electricity Requirement | Three-phase Four Wires 380V±10% |
| Electricity Requirement | 400KVA,air switch 600A |
| Control Method | PLC |
| Effective Welding Width | 1200mm |
| Effective Welding Length | 4000mm |
| Cooling Water Temperature | 15-25℃ |
| Required Operator Number | 2 people |

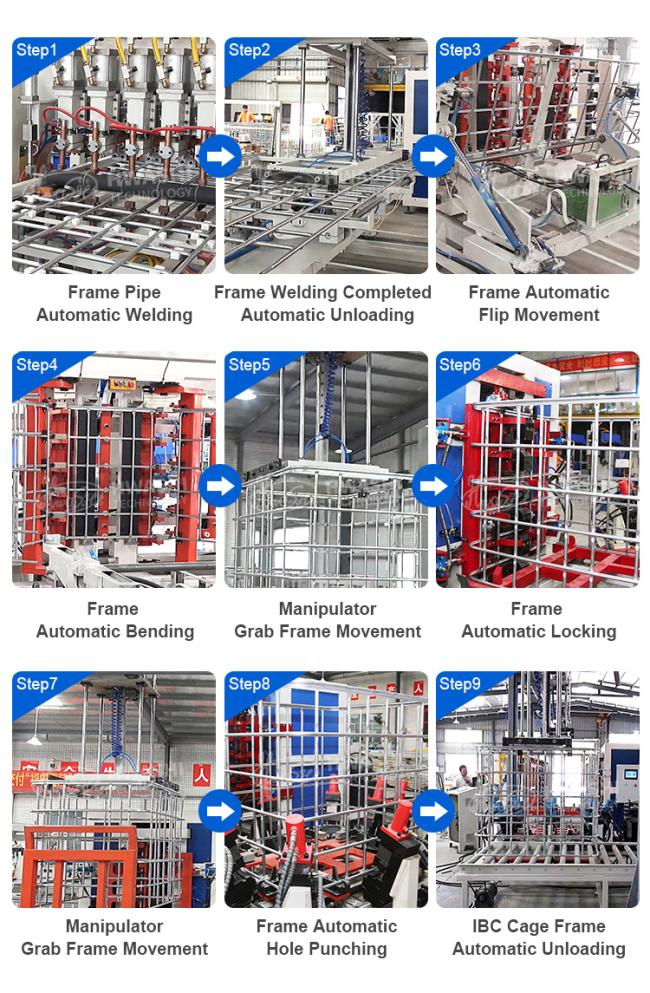

Running Process Of The IBC Cage Frame Automatic Production Line
Frame welding——bending——locking——hole punching——unloading——base frame welding——base frame loading——manual screw for base frame and outer frame
