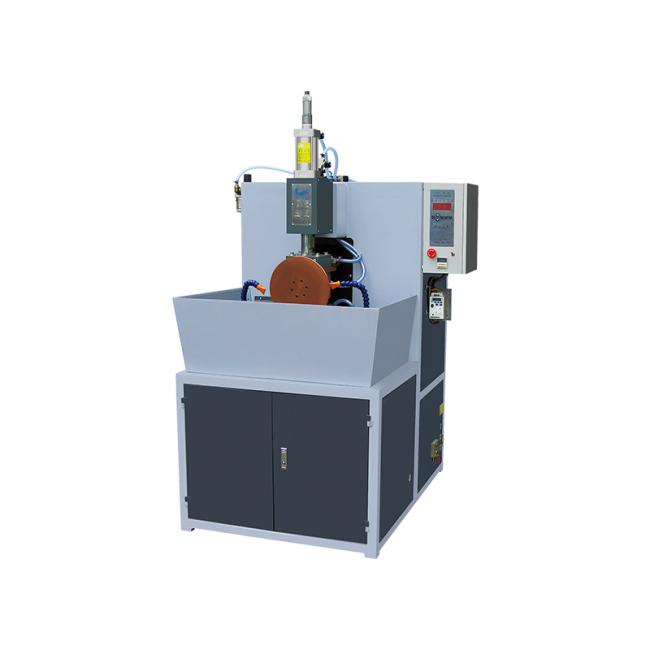

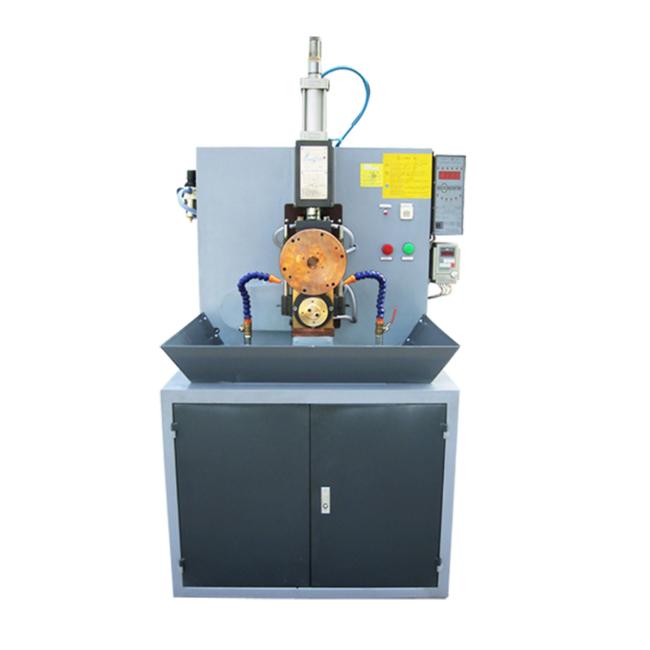

Resistance Seam Welding Machine Steel Wire Basket Seam Welder
Hwashi Steel Wire Basket Seam Welder , Resistance Rolling Welding Machine
Product Introduction:
The steel wire basket seam welding machine is specifically designed for welding steel wire baskets. It employs advanced welding technology to achieve efficient and precise welding operations. The equipment features the following characteristics:
Tailored for Steel Wire Baskets: This welding machine is specially designed for welding steel wire baskets, meeting the specific requirements of the steel wire basket manufacturing industry.
Seam Welding Technology: Utilizing seam welding technology, it can perform continuous seam welding on steel wire baskets, enhancing welding efficiency and quality.
High Production Capacity: With efficient production capacity, it can meet the demands of large-scale production, improving production efficiency.
Precision Welding: Equipped with advanced control systems and precision welding heads, it achieves high-precision control during the welding process, ensuring welding quality and stability.
Ease of Operation: It features an intuitive operating interface and simple operating procedures, making it easy to operate and maintain, reducing personnel training costs and operational risks.
Welding Method of The Seam Welding Machine
Adopt standardized welding electrode. Special electrode molds and welding methods can also be customized according to the product specification.
Features of The Seam Welding Machine
Flexibility: Customizable to meet specific customer requirements, it can accommodate different sizes and shapes of steel wire baskets.
Strong Stability: The equipment has high stability, enabling long-term stable operation and reducing failures and downtime during production.
Reliability: Manufactured with high-quality materials and components, it has a long service life and high reliability, reducing maintenance costs and downtime.
Energy Efficiency and Environmental Protection: Energy-saving power systems and environmentally friendly materials are used in the design and manufacturing process, meeting the requirements of sustainable development in modern industry.
Specification
| Model | WL-FS-75K | WL-FS-100 | WL-FS-125 | WL-FS-160 | WL-FS-200 | WL-FS-250 |
| Rated Capacity KVA | 75 | 100 | 125 | 160 | 200 | 250 |
| Voltage V | 380*2 | 380*2 | 380*2 | 380*2 | 380*2 | 380*2 |
| Duty Cycle Rate% | 50 | 50 | 50 | 50 | 50 | 50 |
| No Load Voltage V | 1.08-7.02 | 1.12-7.38 | 1.26-8 | 1.3-8.5 | 2.2-9.0 | 1.3-9.7 |
| Max. Welding Thickness mm | 1.2+1.2 | 1.5+1.5 | 1.8+1.8 | 2+2 | 2.5+2.5 | 2.5+3 |
| Upper Wheel Stroke mm | 20-80 | 20-80 | 30-100 | 30-100 | 30-100 | 30-100 |
| Welding Speed m/min | 0.6-4 | 0.5-3.2 | 0.5-2.8 | 0.5-1.5 | 0.5-1.2 | 0.5-1.2 |
| Max. Pressure KN | 6.3 | 6.3 | 8.6 | 8.6 | 8.6 | 8.6 |
| Compressed Air Mpa | 0.5 | 0.5 | 0.6 | 0.6 | 0.6 | 0.6 |
| Cooling Water Consumption L/h | 820 | 960 | 1080 | 1080 | 1080 | 1080 |
Application and samples
We can provide customized service for you. Our engineers will discuss the specific welding requirement with you and come out with the suitable technical proposal based on your samples or drawings.
Application Industry of The Seam Welding Machine
Suitable for the welding of sheet, barrel body, box and sealed thin-wall container with different material, such as carbon steel, stainless steel, titanium, nickel and other materials. For fuel tank of automobile, damper of motorcycle, detector of temperature controller, nickel strap of battery, oil heater, power capacitor, sieve iron basket, water pump manufacturing, tin making, coopery industry, etc.
