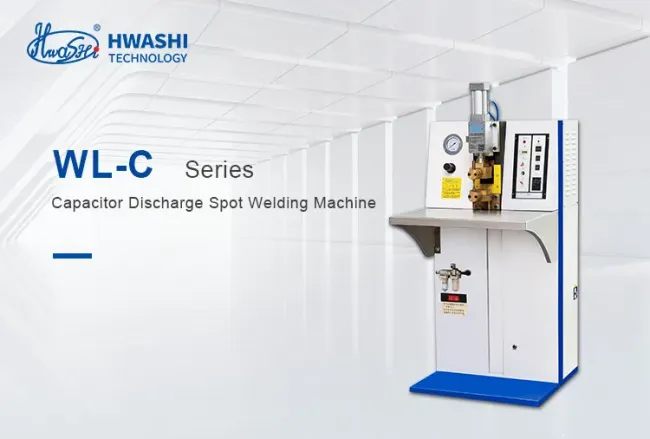

Battery Spot Welder Resistance Welding Machine Capacitive Energy Spot Welder Stainless Steel Spot Weld Machine Price
Price:
negotiation
MOQ:
1 set
Delivery Time:
7-30 working days after received your payment
Brand:
HWASHI
Product Description
220v battery spot welder resistance welding machine capacitive energy spot welder Stainless Steel spot weld machine price
Capacitor discharge spot welding machine is a kind of electrical energy storage spot welder, which is used to charge the capacitor after rectifier rectification of AC power, and then the stored electric energy is converted into a low electric voltage, and the energy is relatively concentrated and stable pulse current, then the metal is fused through the resistance heat generated at the contact point of the welding workpiece.
1.The requirements for the power grid are low and do not affect the power grid.
2.The welding process is short, the instantaneous current is high, and the heat affected zone is small.
3.The water cooling circulation system helps to effectively reduce the consumption of electrodes and transformers.
4.The welding surface oxidation and deformation is small, no black coating, and no grinding process is required after welding.
|
Model
|
WL-C-2K
|
|
Input Power (V/φ)
|
220/1
|
|
Rated Power (KVA)
|
2
|
|
Applicable Material
|
Stainless Steel, Carbon steel, Aluminum, Metal
|
|
Max Short Circuit Current (KA)
|
1
|
|
Electrode Force (KG)
|
100
|
|
Electrode Stroke (MM)
|
50
|
|
Dimension(L*W*H)
|
545mm*550mm*1250mm
|
|
Warranty
|
1 years
|
