High Voltage High Speed Motor A2FM5 Hydraulic Axial Piston Fixed Motors in Cast Iron
Price:
discussible
MOQ:
1 pcs
Delivery Time:
5days
Brand:
Bosch Rexroth
Product Description
High Voltage High Speed Motor A2FM5 Hydraulic Axial Piston Fixed Motor
Basic Info.
Model NO.
A2FM5
Certification
GS, RoHS, CE, ISO9001
Excitation Mode
Excited
Power Rating
4000W
Casing Protection
Open Type
Number of Poles
12
Speed
High Speed
Type
Plunger Type
Trademark
MKS
Transport Package
Wooden Box
Specification
cast iron
Origin
China
HS Code
8412291000
Product Description
Product
Technical data
High pressure motor for integration in mechanical gearboxes
Size 28 … 355
Nominal pressure up to 400 bar
Maximum pressure up 450 bar
Open and closed circuits
High pressure motor for integration in mechanical gearboxes
Open and closed circuits
Features
Space-saving construction due to recessed mounting flange
Easy to install, simply slide into the mechanical gearbox
High power density
Very high total efficiency
High starting efficiency
Optional with integrated pressure relief valve
Optional with mounted addifitonal valve: counterbalance valve (BVD/BVE), flushing and boost-pressure valve

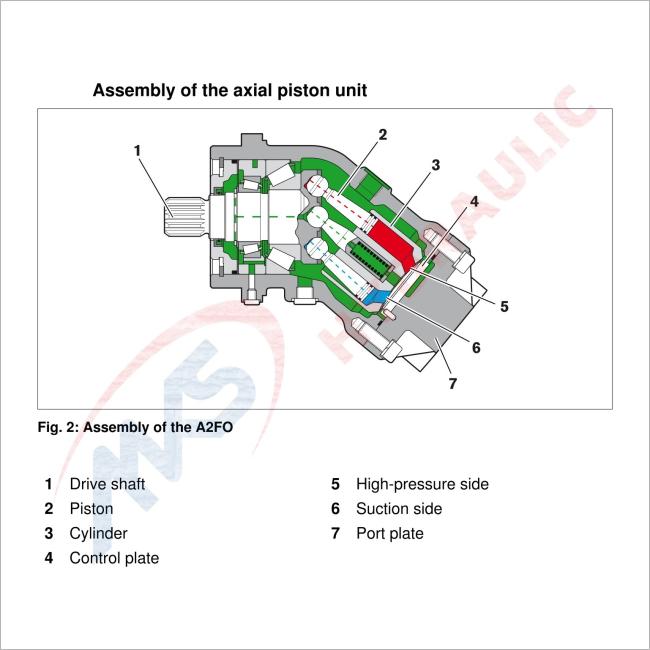

Bent-axis design
Factory

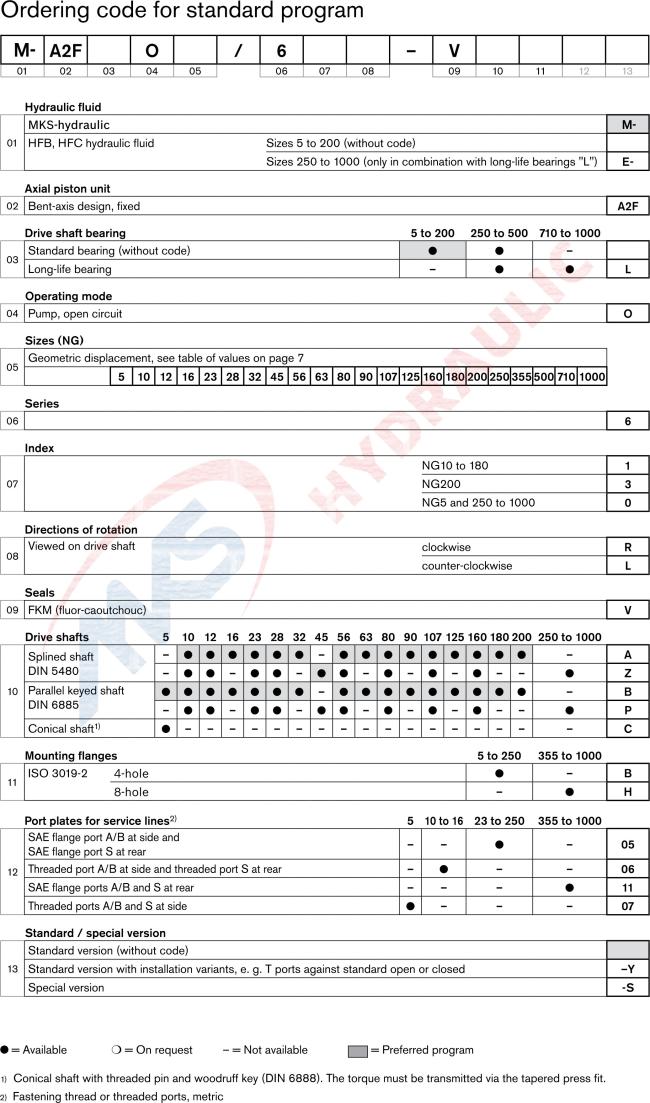

Type
R909441419 A2FM5/60W-TPV03S R902208507 A2FM5/60W-VBB030 R902250989 A2FM5/60W-VBB030 R902241927 A2FM5/60W-VCB030
R909442579 A2FM5/60W-TPV66S R902269550 A2FM5/60W-VBB030 R902231045 A2FM5/60W-VBB030 R902250809 A2FM5/60W-VCB030
R902215441 A2FM5/60W-VBB030 R902222048 A2FM5/60W-VCB030 R902253618 A2FM5/60W-VBB030 R902222398 A2FM5/60W-VCB030
R902233986 A2FM5/60W-VCB030-Y R902217689 A2FM5/60W-VCB030-Y R902268596 A2FM5/60W-VBB030
