V Type Hydraulic Piston Pump Eaton Vickers Pvxs250 Hydraulic Open Circuit Pump

Price Negotiable

Price: discussible

MOQ: 1 pcs

Delivery Time: 5days

Brand: Eaton Vickers

Product Description

Axial Plunger Pump Structure V Type Eaton Vickers Pvxs250 Hydraulic Open Circuit Pumps

Basic Info.

Model NO.

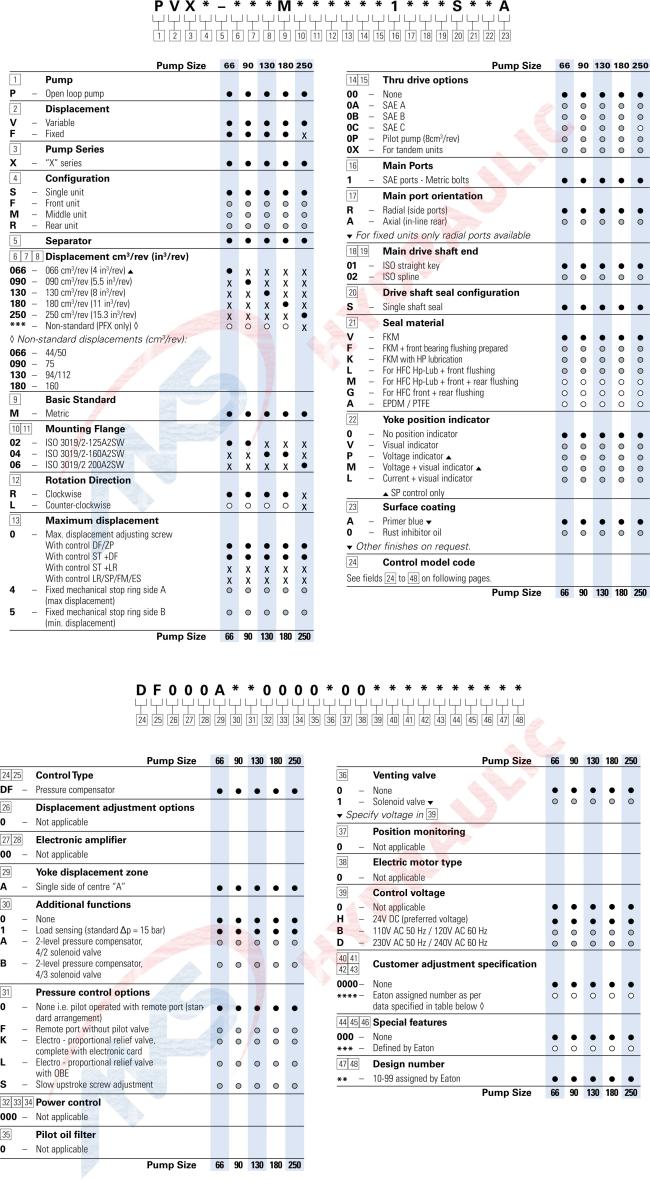

PVXS-250-M-R-LR-0024-018 Hydraulic-Piston-Pump

After-sales Service

Free Warranty

Warranty

Free Warranty

Structure

Axial Plunger Pump

Cylinder Number

Single Cylinder

Drive Mode

Mechanically Driven Pump

Pump Shaft Position

Horizontal

Type

V Type

Power

Electric

Straight Shaft Swashplate Piston Type

Pressureoil

Radial Plunger Pump Type

Valve with Flow

Trademark

MKS

Transport Package

Wooden Box

Specification

cast iron

Origin

China

HS Code

8413503190

Product Description

Introduction

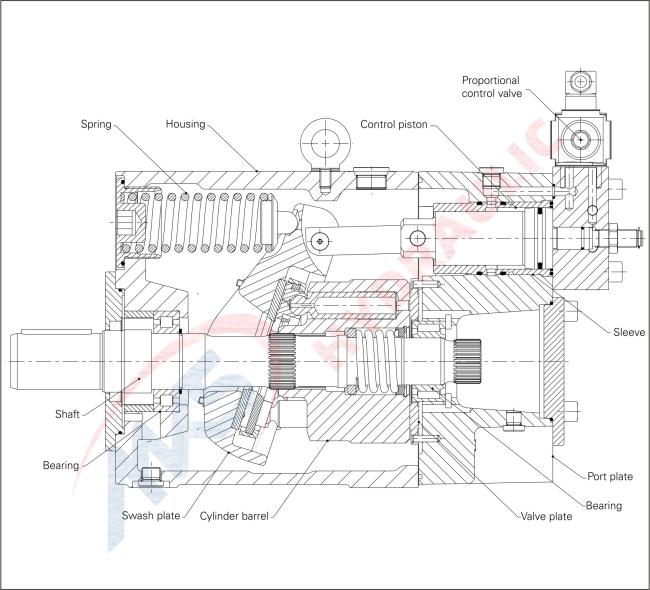

• Axial piston pumps with swashplate design for reliable operation and long life.
• Pressure up to 420 bar. Rated speed up to 1800 min-1. Higher speeds possible.
• Oversize shafts and bearings.
• Rotating and pressure loaded parts are pressure balanced.
• Integrated pilot pump, filter and pressure relief valves available.
• "Building block" design gives these pumps a wide range of application.
• Fast response times.

MODEL		66			90	130	180	250
Design				Swashplate - Axial piston pump
Type of mounting				Flange or foot-mounted. tandem is foot mounted only
Pipe connection SAE/Flange		B	psi	1 1/2" = 3000 2" = 3000 2 1/2" = 3000			2 1/2" = 3000	3 1/2" = 500
		A		1" = 6000 1" = 6000 1" = 6000			1 1/4" = 6000	1 1/4" = 6000
Direction of rotation				Clockwise when viewing shaft end of pump Counterclockwise available on request
Speed range		nmin	min^-1	150
		nmax		1800
Installation position				Optional, see mounting information
Ambient temperature range		min	°C	-20
		max		50
Weight		m	kg	55	75	106	114	212
Mass of inertia		J	kg m²	0.016	0.016	0.045	0.045	0.146
HYDRAULIC CHARACTERISTICS
Nominal pressure (100% duty cycle)		pN	bar	350
Input pressure		p1min p1max	bar bar	0.85 abs 50
Maximum pressure to DIN 24312		p2max	bar	420
Hydraulic fluid				Hydraulic oil to DIN 51524 part 2. Refer to section Application Data-Fluid Recommendations
Hydraulic fluid temperature range		min max	°C	-25 (on start up) 90
Viscosity range for continuous operation		min	cSt	10
		max	cSt	75
Maximum permissible start viscosity		max	cSt	1000
Filtering		ISO 4406		18/15/13
Maximum geometric displacement	n= 1500 min^-1 n= 1800 min^-1	Vg	cm³	66	90	130	180	250
Maximum geom.	n= 1500 min^-1	Qg	L/min	99	135	195	270	375
pump flow	n= 1800 min^-1			118	162	234	324	450
Case pressure pv max bar max. 0,5 bar over p1. pmax = 4 bar abs.
DRIVE
Maximum driving torque - single unit (p_{2 max.}, -r= 100%)		M1 Single	Nm	440	600	868	1202	1671
Maximum power consumption - single unit P1 Single (p_{2 max.}, -r= 100%; n= 1800 min^-1)			kW	69	94	136	189	265
Maximum driving torque limited to splined shaft only - comb. unit		M1 Comb.	Nm	2x440	2x600	2x868	2x1202	2x1671
