Bosch Rexroth Variable Plug-in Motor A6VE Series 65 agricultural machinery, ships, etc.

Characteristics
▶▶ Variable plug-in motor with axial tapered piston rotary
group of bent-axis design, for hydrostatic drives in open
and closed circuits
▶▶ For use preferably in mobile applications
▶▶ The wide control range enables the variable motor to
satisfy the requirement for high speed and high torque.
▶▶ The displacement can be continuously changed from
Vg max to Vg min = 0.
▶▶ The output speed is dependent on the flow of the pump
and the displacement of the motor.
▶▶ The output torque increases with the pressure
differential between the high and low pressure sides
and with increasing displacement.
▶▶ Wide control range with hydrostatic gearboxes
▶▶ Wide selection of control devices
▶▶ Cost savings through elimination of manual gearboxes
and possibility of using smaller pumps
▶▶ Compact, robust motor with long service life
▶▶ Easy to install, simple to plug into the mechanical
gearbox (no configuration specifications to be observed)
▶▶ High power density
▶▶ Good starting efficiency

For more detailed parameters of A6VE and other models, please contact our sales staf

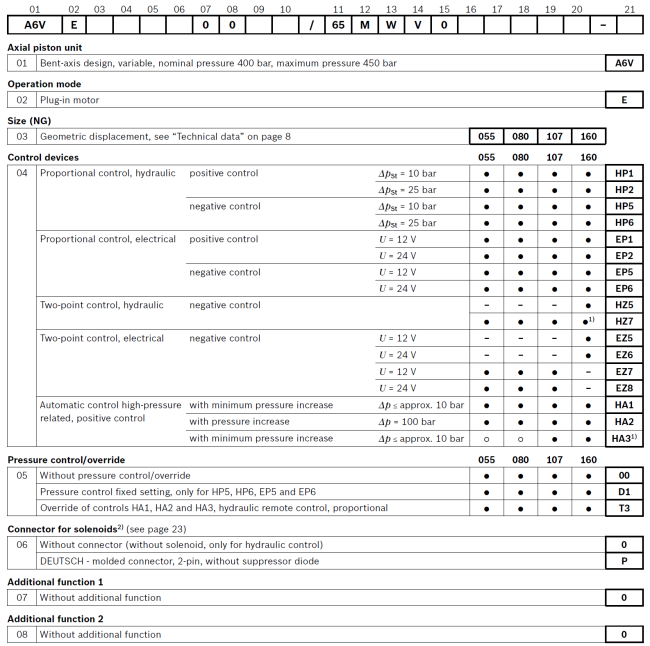

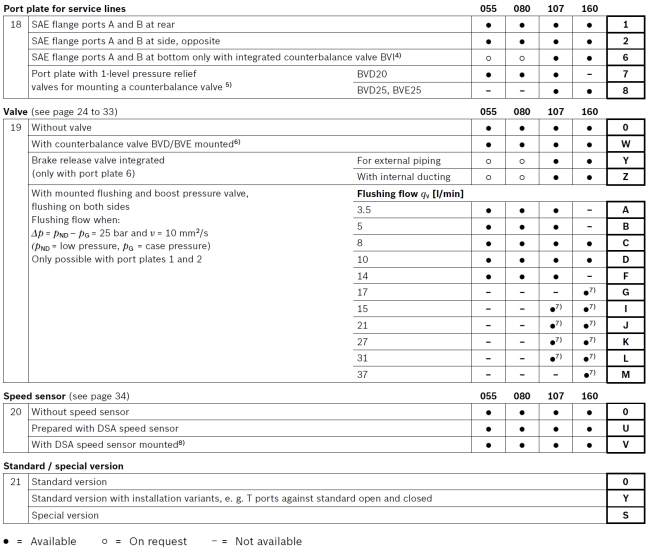

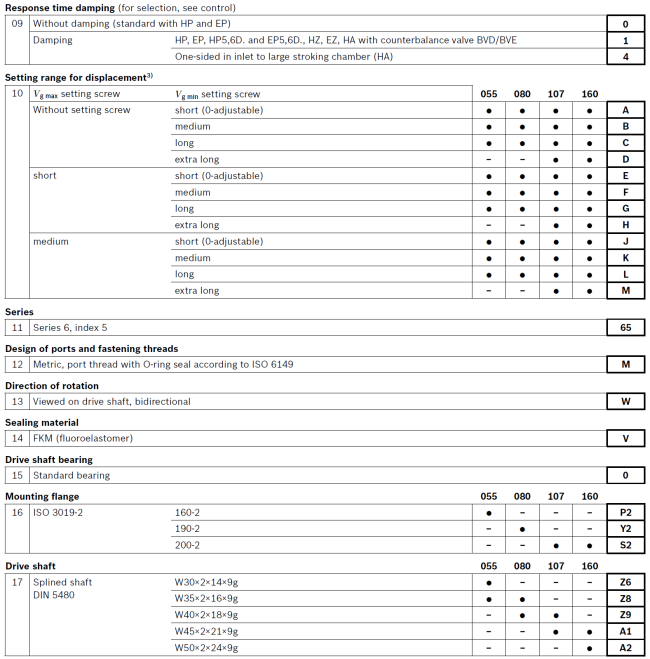

Type code

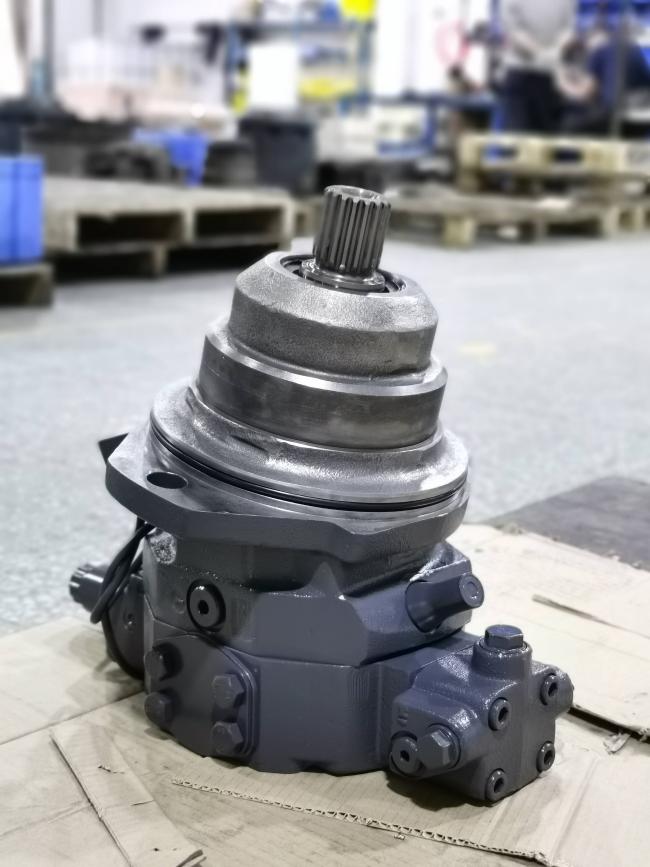

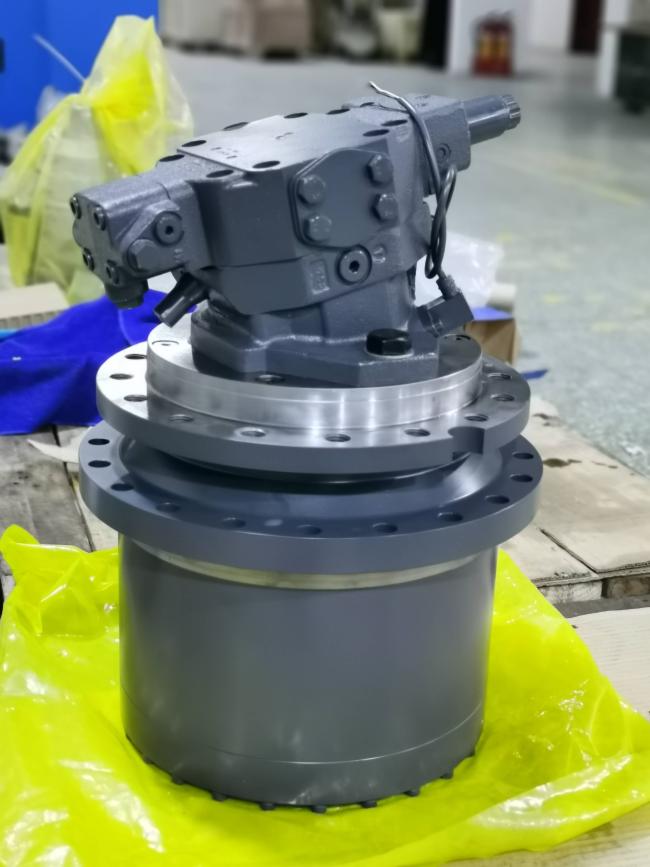

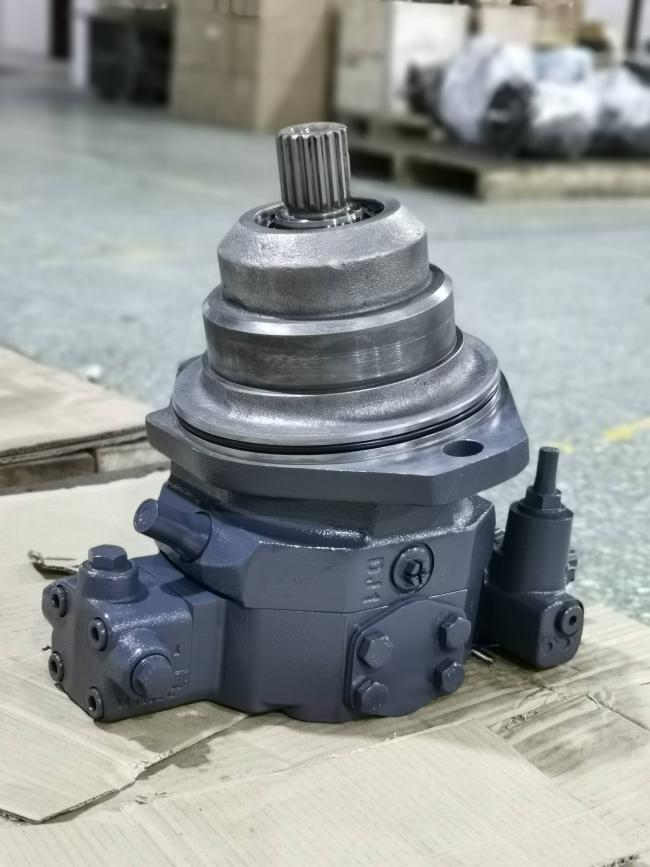

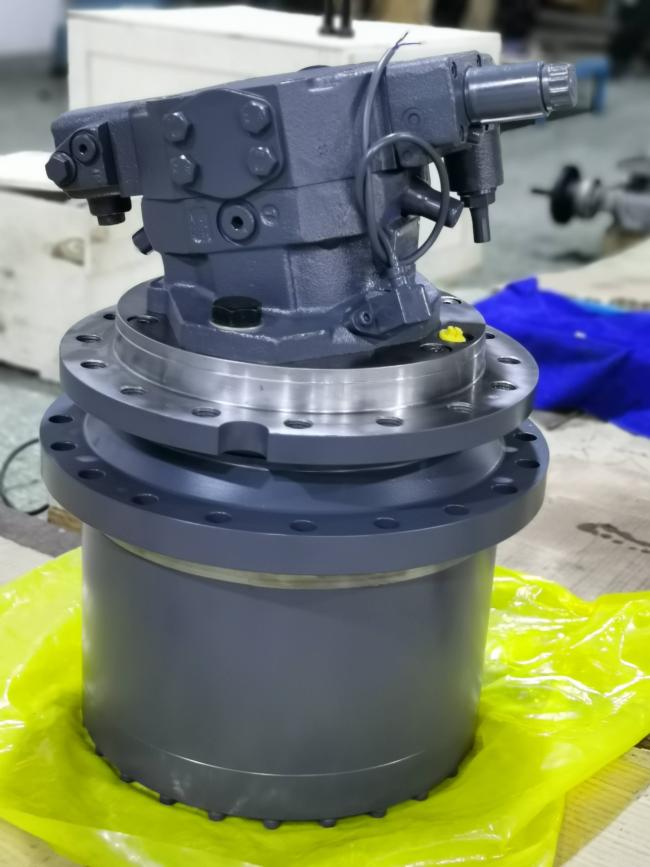

Finished product display
