Fixed displacement plug-in motor A2FE

Features
– Fixed displacement plug-in motor with axially tapered plunger rotor in helical design for hydrostatic transmission in open and closed circuits
– Integration in the mechanical gearbox due to the recessed mounting flange in the center of the housing (very space-saving design)
– Output speed depends on the pump flow and the motor displacement
– Output torque increases with the differential pressure between the high-pressure side and the low-pressure side.
– Small dimensions
– High overall efficiency
– Complete unit, ready to be assembled and tested
– Easy to install, just plug into the mechanical gearbox
– No configuration specifications required for installation

Hydraulic oils
Before you start project planning, please refer to our technical data sheets RC 90220
(mineral oils), RC 90221 (environmentally friendly hydraulic oils), RC 90222 (HFD hydraulic oils) and RC 90223 (HFA, HFB, HFC hydraulic oils) for detailed information on hydraulic oil selection and application conditions.
The plug-in motor A2FE is not suitable for use with HFA hydraulic oils. When using HFB,
HFC, HFD or environmentally friendly hydraulic oils, the technical parameters or other
seal restrictions must be observed.

Note
The case drain temperature (influenced by pressure and speed) may be higher than the circuit or tank temperature. However, the temperature of any part of the component must not exceed 115 °C. The temperature differences specified below should be taken into account when determining the viscosity of the hydraulic oil at the bearing.
If the above conditions cannot be met due to extreme operating parameters, we recommend the use of flushing and filling valves

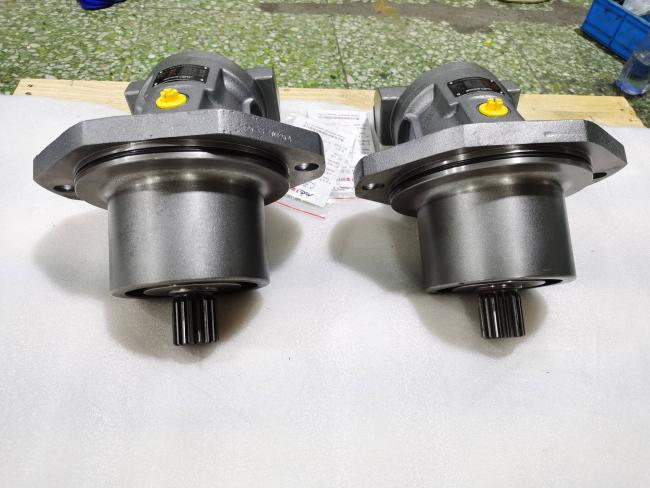

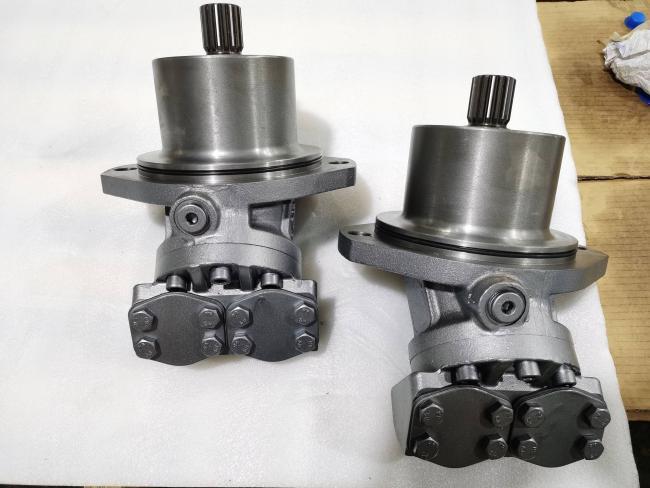

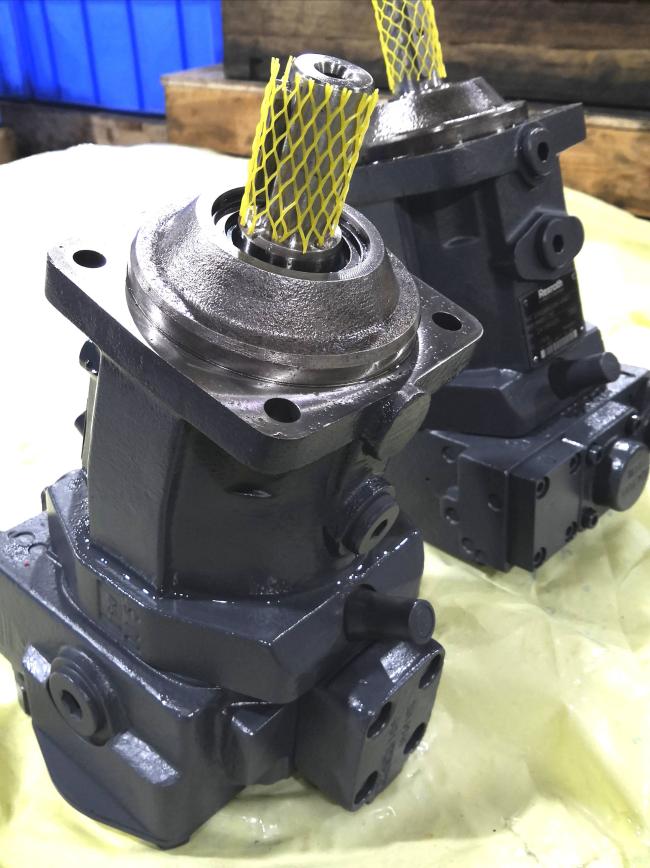

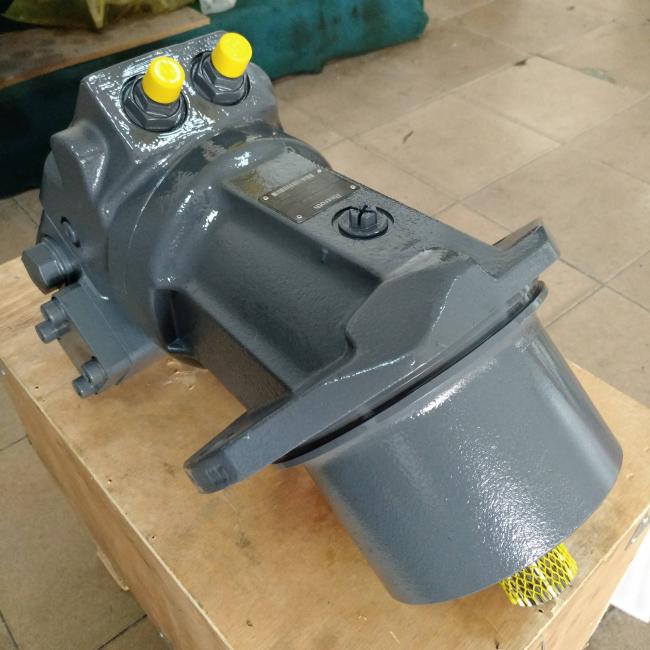

Real photos
