Bosch Rexroth Axial piston fixed motor A2FM series 6x All-purpose high pressure motor

Features
▶ Large variety of available nominal sizes allows exact
adjustment to the application
▶ High power density
▶ Very high total efficiency
▶ High starting efficiency
▶ Working ports SAE flange or thread
▶ Optional with integrated pressure relief valve
▶ Optional with mounted addifitonal valve: counterbalance
valve (BVD/BVE), flushing and boost-pressure
valve
▶ Bent-axis design

Selection of hydraulic fluid
Bosch Rexroth evaluates hydraulic fluids on the basis of
the Fluid Rating according to the technical data sheet
90235.
Hydraulic fluids with positive evaluation in the Fluid
Rating are provided in the following technical data sheet:
▶ 90245: Bosch Rexroth Fluid Rating List for Rexroth
hydraulic components (pumps and motors)
The hydraulic fluid should be selected so that the operating
viscosity in the operating temperature range is within
the optimum range (νopt; see selection diagram).

General instructions
▶ The values given are maximum values and do not apply
to continuous operation.
▶ The axial force in direction −Fax is to be avoided as the
service life of the bearing is reduced.
▶ Special requirements apply in the case of belt drives.

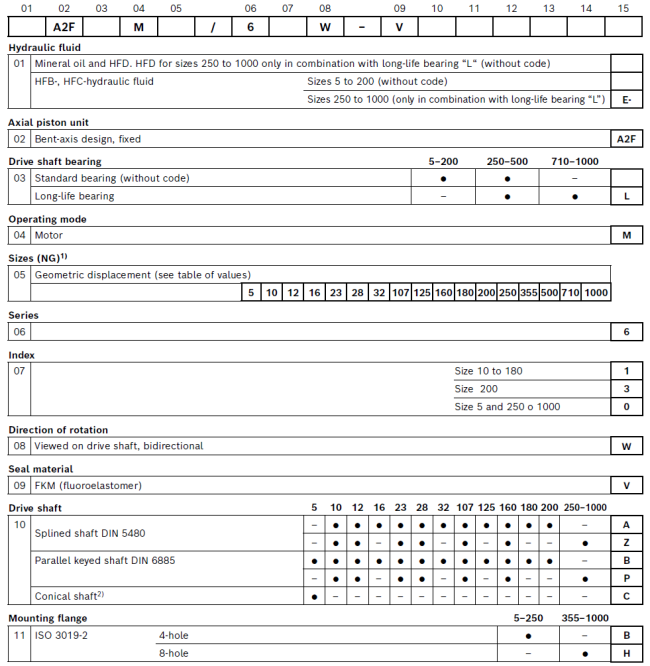

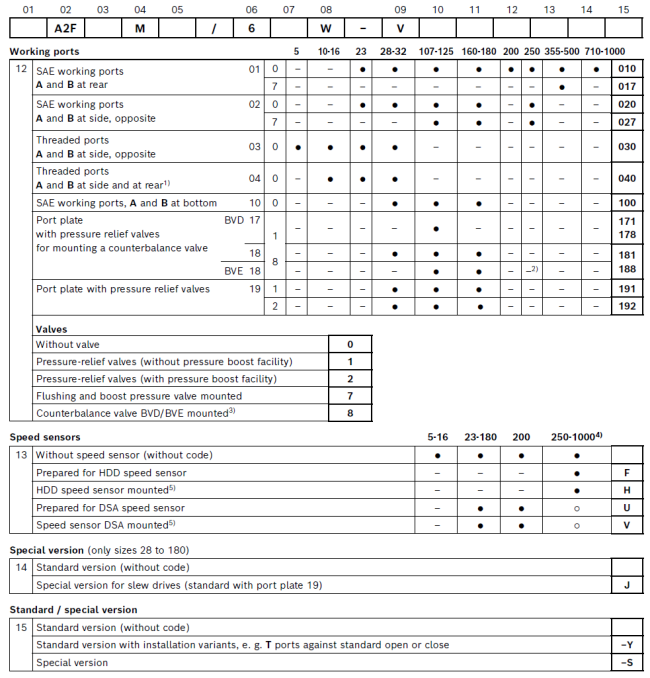

Type codes

Please choose the product that suits you according to the data in the table

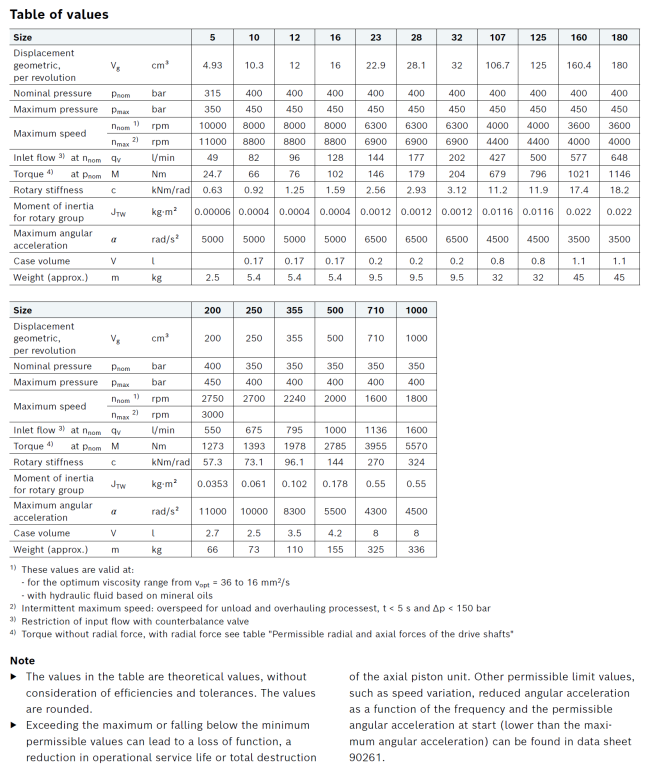

Technical data

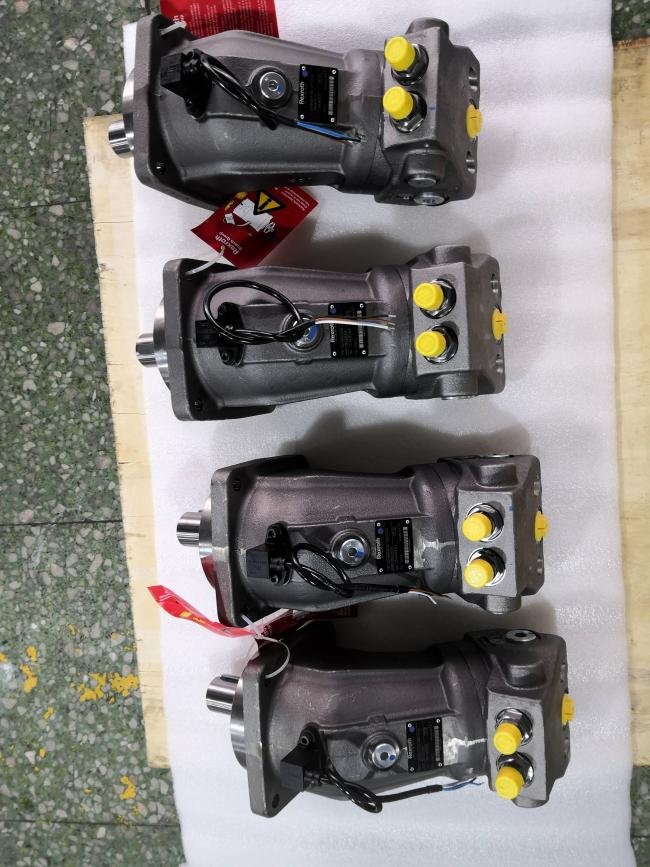

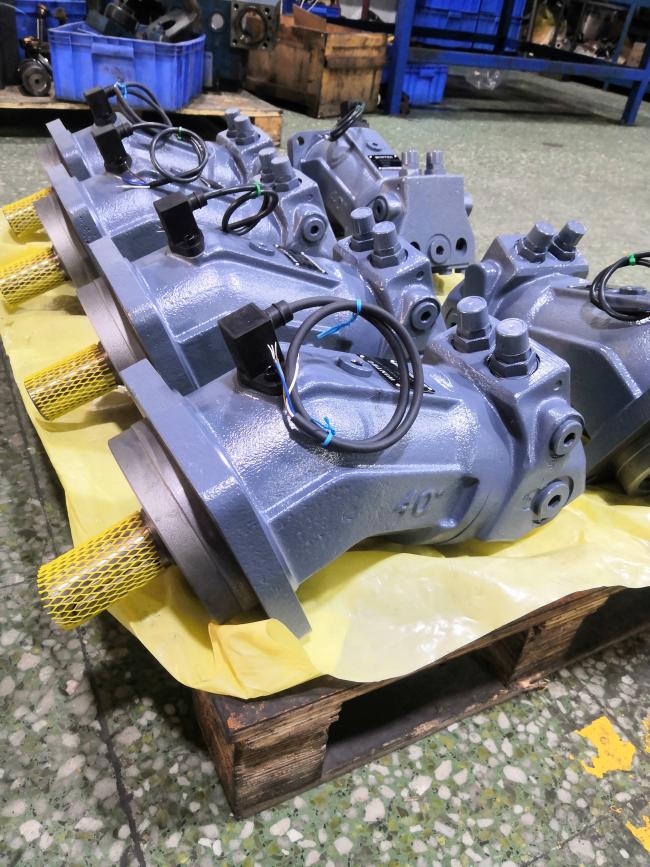

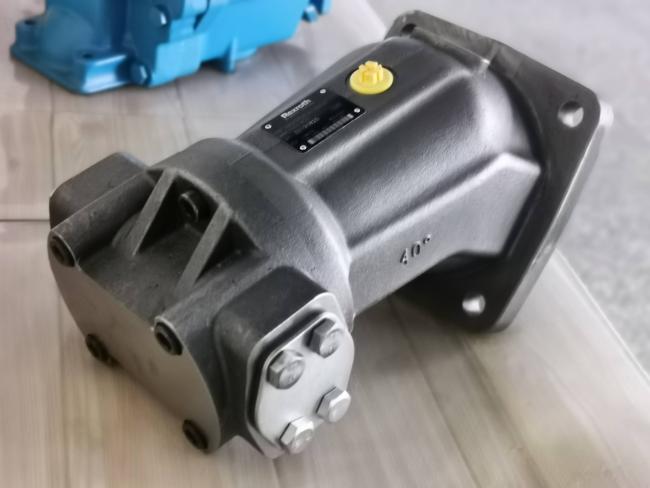

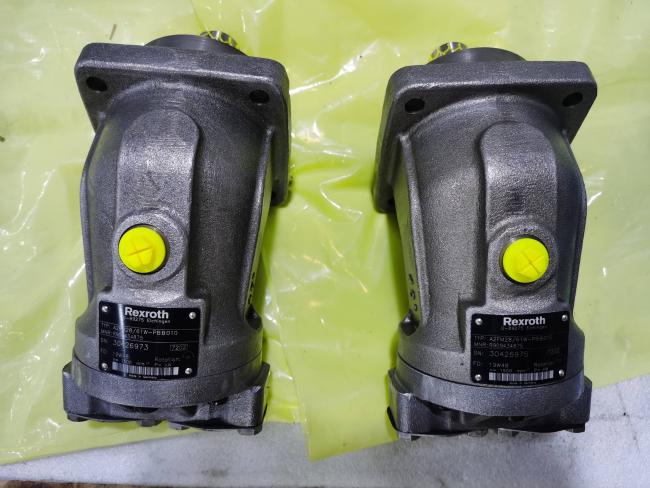

Real pictures
