BSW 400W 3 In 1 Moving Head Stage Light CMY CTO Wash Stage Light For DJ
Price:
Negotiable
MOQ:
1 Sets
Delivery Time:
7-15days
Brand:
Bright lighting
Product Description
BSW 400W LED Three-In-One Moving Head Light CMY+CTO Wash Stage Light For DJ
Specifications:
| Voltage | AC100-240V 50/60Hz |
| Max power: | 500 W |
| Light source: | 400W high brightness white LED |
| LED lifetime: | Average 50000 hours |
| Dimmer: | 0-100% linear dimmer |
| Strobe: | 0-25HZ/S with multi strobe effects |
| Zoom range: | 3-45 degree |
| Pan: | 540°+ 16bit fine |
| Tilt: | 270°+ 16bit fine |
| Channel: | 25 DMX Channel with RDM |
| Color wheel: | 8 colors+open |
| CMY: | CMY infinite color mixture |
| CTO: | Linear CTO |

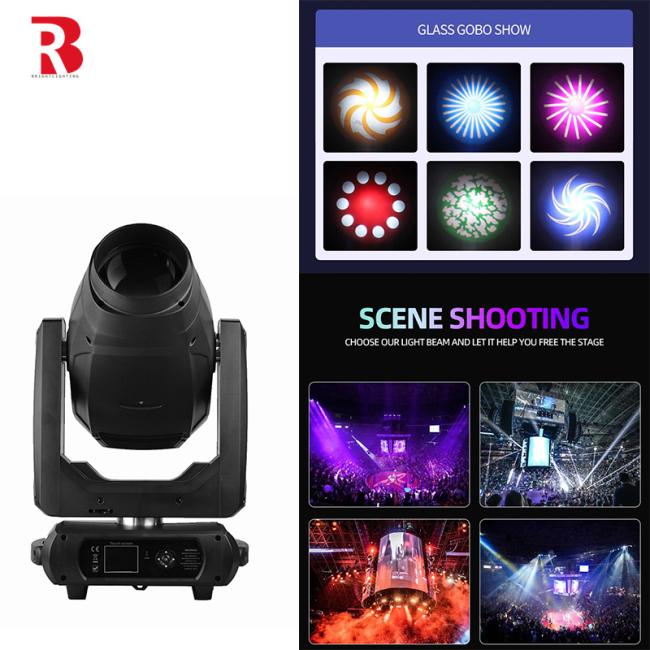

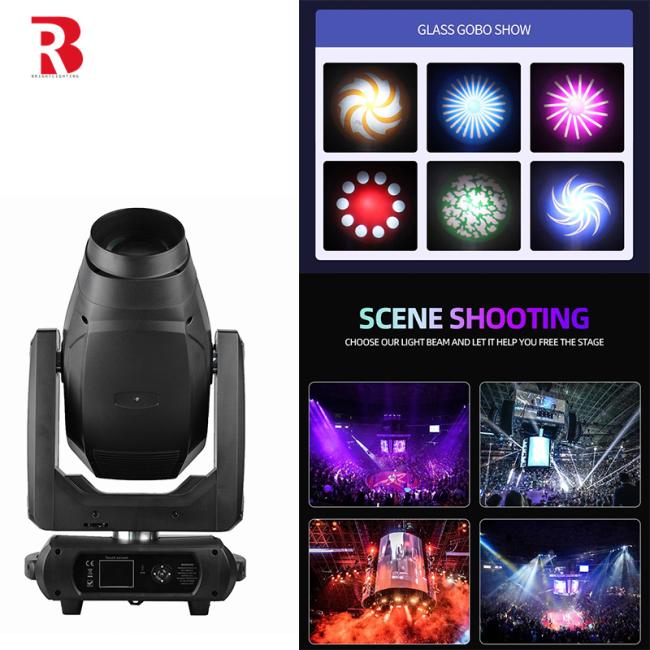

| Static gobo wheel: | 10 gobos+open with shake effect and bi-direction rotation |
| Rotation gobo wheel: | 8 gobos+open with shake effect and bi-direction rotation |
| Frost: | With frost to make soft wash effect |
| Prism: | 3 facet prism with bi-direction rotation |
| Focus: | Electric focus |
| Display: | With 2.8 inch LCD display |
| N.W: | 21.3KG |
| Fixture dimension: | 365*290*665 mm |
Additional details:
Working principle:
1:Light source: Moving head lights usually use high-brightness metal halide bulbs or LEDs as light sources. When electric current passes through a light bulb or LED, an intense light is produced.
2:Reflection system: The light is focused into a cone-shaped beam through a carefully designed reflection system for projection of lighting effects.
3:PTZ control: The moving head light has a built-in motor and PTZ structure, which can rotate and tilt in horizontal and vertical directions. The motor drives the pan/tilt for precise position adjustment.
1:Light source: Moving head lights usually use high-brightness metal halide bulbs or LEDs as light sources. When electric current passes through a light bulb or LED, an intense light is produced.
2:Reflection system: The light is focused into a cone-shaped beam through a carefully designed reflection system for projection of lighting effects.
3:PTZ control: The moving head light has a built-in motor and PTZ structure, which can rotate and tilt in horizontal and vertical directions. The motor drives the pan/tilt for precise position adjustment.
Working principle details:
1:After receiving the control signal, the control system adjusts the speed and direction of the motor according to the instructions, so that the gimbal can complete specific rotation and tilt actions.
2:Built-in sensors and encoders constantly monitor the position of the gimbal, ensuring precise positioning while avoiding collisions and exceeding the rotatable range.
3:By outputting different PWM signals from the control system, the brightness of the bulb or LED can be precisely controlled to achieve colorful lighting effects.
1:After receiving the control signal, the control system adjusts the speed and direction of the motor according to the instructions, so that the gimbal can complete specific rotation and tilt actions.
2:Built-in sensors and encoders constantly monitor the position of the gimbal, ensuring precise positioning while avoiding collisions and exceeding the rotatable range.
3:By outputting different PWM signals from the control system, the brightness of the bulb or LED can be precisely controlled to achieve colorful lighting effects.
Application:
1:Stage plays and theater performances: These lights can add vivid visual effects to storylines and atmosphere changes on stage through precise control and movement capabilities.

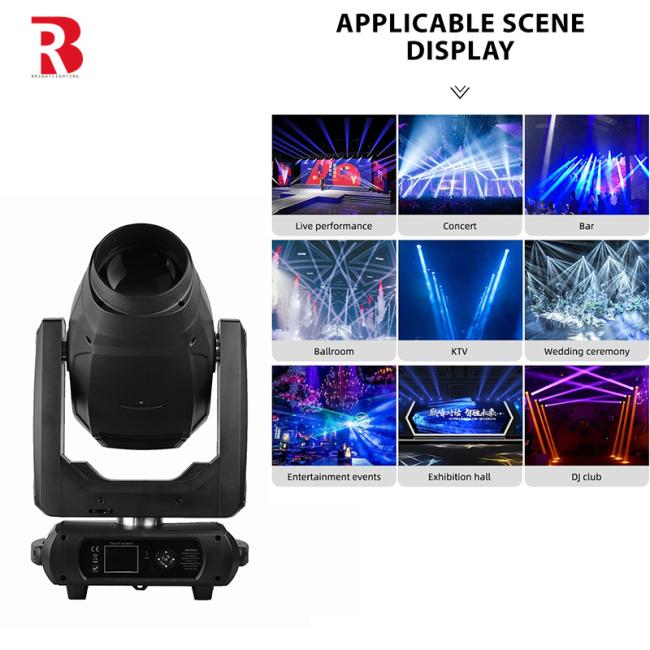

2:Clubs and nightclubs: In entertainment venues, MOVING HEAD STAGE LIGHT is often used to match the music rhythm to create impressive light shows and visual effects, enhancing the atmosphere and joy of the scene.
Service:
Provide after-sales service
