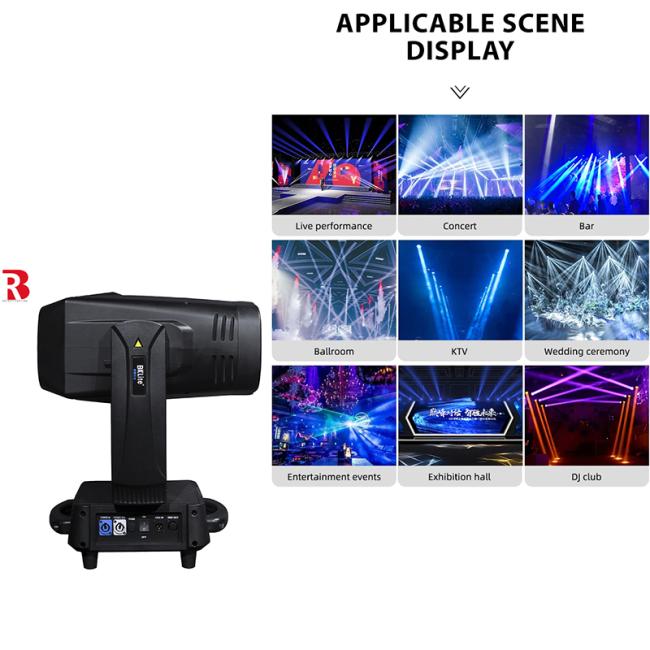

Electric Focus Beam BSW LED Moving Head Zoom 550W 6-38 Degree
Price:
Negotiable
MOQ:
1 Sets
Delivery Time:
7-15days
Brand:
Bright lighting
Product Description
Stage Light 400W LED BSW Framing Stage Light For DJ Disco Party Clubs
Specifications:
| Voltage: | AC100-240V 50/60Hz |
| Max power: | 550W |
| Light source: | 400W high brightness white LED LED |
| Dimmer: | 0-100% linear dimmer |
| lifetime: | 20000 hours |
| Strobe: | 0-25HZ/S with multi strobe effects Zoom |
| range: | 6-38 degree |
| Pan: | 540°+ 16bit fine Tilt: 270°+ 16bit fine |
| Channel: | 26 DMX Channel with RDM |
| Framing: | 8 facet & 4 blades framing shutters modules |
| Color wheel: | 7 colors+open |
| Rotation gobo wheel: | 7 gobos+open with shake effect and bi-direction rotation |
| Frost: | With frost to make soft wash effect |
| Prism: | 3 facet prism with bi-direction rotation |
| Iris: | 5%-100% Iris |
| Focus: | Electric focus |
| Display: | With 2.8 inch touch display |
| Fixture dimension: | 396*290*694 mm |
| N.W: | 25.6KG |
Additional details:
How to operate:
Parameters and trajectories can be adjusted through a dedicated control panel or software interface, and lighting can also be controlled through DMX control, automatic programs or music triggering.
Parameters and trajectories can be adjusted through a dedicated control panel or software interface, and lighting can also be controlled through DMX control, automatic programs or music triggering.
Precautions:
1:Safe use: Avoid looking directly at strong light to prevent eye damage.
2:Maintenance: Regularly clean the surface of the lamp and the radiator to ensure normal heat dissipation and stable operation.
3:Waterproof and dustproof: Choose appropriate protective measures according to the use environment to keep the equipment dry and clean.
4:Electrical safety: Connect the power supply strictly in accordance with electrical standards and ensure that the equipment is well grounded and insulated.
Technical principle:
LED drive circuit: Including regulated power supply, constant current driver, etc., to ensure that the LED works stably and provides the required current and voltage.
Optical system: It consists of lenses, reflectors, etc., which can shape and focus the light emitted by the LED to form the required beam effect.
Positioning system: Uses position sensors and encoders to detect the position of the pan/tilt in real time and provide accurate feedback signals to ensure the precise positioning of the lamp body.
LED drive circuit: Including regulated power supply, constant current driver, etc., to ensure that the LED works stably and provides the required current and voltage.
Optical system: It consists of lenses, reflectors, etc., which can shape and focus the light emitted by the LED to form the required beam effect.
Positioning system: Uses position sensors and encoders to detect the position of the pan/tilt in real time and provide accurate feedback signals to ensure the precise positioning of the lamp body.
Application:
1:Film shooting: In film and television production, 400W LED BSW Framing can be used for stage lighting settings, special scene lighting, etc. Through its precise imaging and flexible modeling capabilities, it can provide rich and colorful lighting effects for film and television works.
2:TV programs: Used for stage lighting design of live TV broadcasts, variety shows, etc., through its multiple lighting effect modes and adjustable focus functions, it can provide professional and fashionable lighting effects for the program site.
Service:
Provide after-sales service
display:
