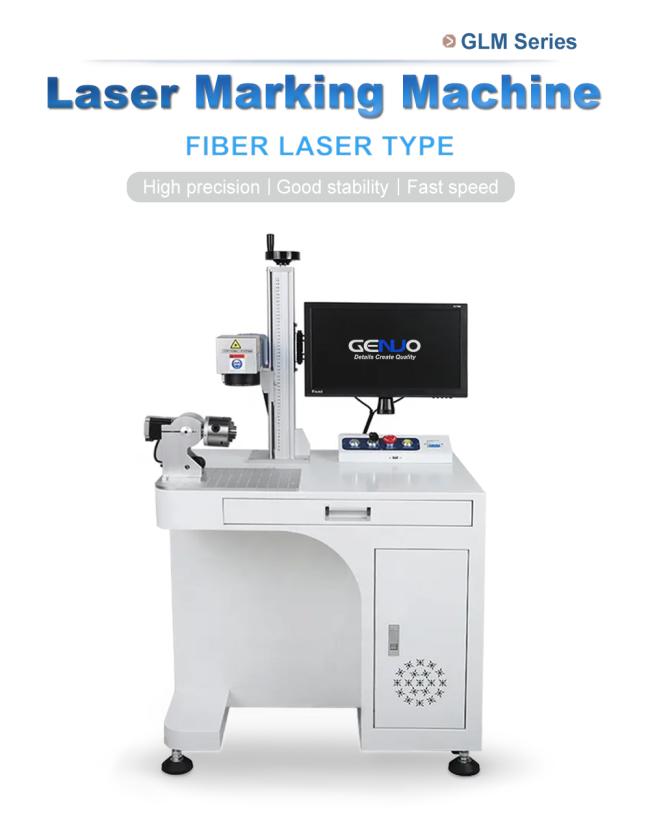

20W 30W 50W 100W Fiber Laser Marking Machine For Sheet Metal

Price Negotiable
Price: negotiable
MOQ: 1
Delivery Time: 90 days
Brand: genuo
Product Description





Genuo fiber laser marking machine, small spot size, high beam quality, large lens, in addition to faster speed, better accuracy, high stability, suitable for deep engraving or etching, is the ideal choice for batch marking of small parts.
Laser marking machine is a device that uses a laser beam to create permanent marks on a variety of materials. The process involves directing a high-power laser beam to the surface of a material, which causes the material to melt, vaporize, or discolor, and the machine also allows for automated and high-speed processing, often using lasers that use oscillators, scanning mirrors, and focusing lenses.
Today, the laser marking machine has been more improved, more general laser marking technology, not only accurate, environmentally friendly, but also more cost-effective.Fiber laser marking machines are among the most powerful laser marking machines available today, and these solid-state lasers range in power levels from 20 watts to 100 watts, making them ideal for marking metal materials.

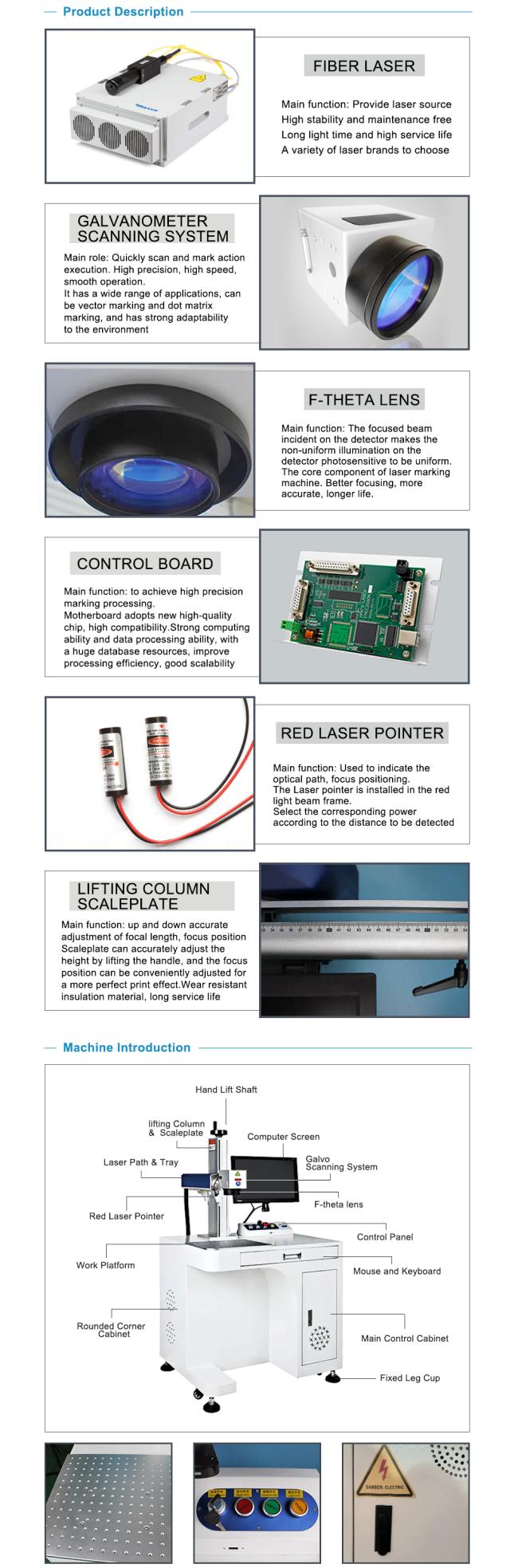

→ Product Configuration:





Standard Equipment:


< Raycus/Max laser source


< Shengketai/Sino-Galvo galvanometer


< JCZ laser marking control card, EzCard software


< High performance computer host and LCD display


< Wooden case packing



Feature:



< Control card with rotating chuck function


< Electric height adjustment


< Two-dimensional table and built-in rotation


< Brand laptop


< Customizable countertop size





Work Platform

Oversized workbench
with hole positioning

Control Panel

Humanized control switch,
autonomous control

Main Control Cabinet

Safe and convenient,
no maintenance








- Technical Specifications -



Fiber Laser Marking Machine
Model GLM-20W GLM-30W GLM-50W GLM-100W
Marking Area 110X 110mm(4.3X43in) Optional
150X 150mm(5.9X59in)
175X 175mm (6.9x6.9in)
Maximum Material Thickness 300mm(11.8in)(at)110x 110mm
250mm(9 Bin)(at)150 X 150mm
206mm(8.1in)(at)175X 175mm
Laser Type RAYCUS/IPG/JPT Optional
Repetition Rate (Frequency) 20-80kHZ(at)RAYCUS
1-400kHZ(at)JPT
1.6-1000kHZ(at)IPG
Output power adjustment range 10%-100%
Marking Speed ≤7m/s(275. 6in/s)
