BWG10 4mm Galvanised Wire Weaving Z40-60g 20kg/Roll
For Wire Mesh Weaving Z40-60g Hot Dipped Galvanized Wire BWG8 - BWG22
Hot Dipped Galvanized Wire Product Description
Galvanized Iron Wire is designed to prevent rusting and shiny silver in color. It is solid,durable and extremely versatile, it is widely used by landscapers, craft makers, building and constructions,ribbon manufacturers, jewelers and contractors.Its aversion to rust makes it extremely useful around the shipyard,in the backyard, etc.
Galvanized wire is divided into hot dipped galvanized wire and cold galvanized wire (electro galvanized wire). Galvanized wire has good toughness and flexibility, the maximum amount of zinc can reach 350 g /sqm. With zinc coating thickness, corrosion resistance and other characteristics.
Hot Dipped Galvanized Wire Application
Hot dipped galvanized wire has good toughness and elasticity, thick galvanized layer, strong corrosion resistance.It widely used in various fields such as construction, handicrafts, wire mesh, highway guardrails, product packaging and daily civilian use.
Hot Dipped Galvanized Wire Advantage
1. Durability: In suburban environments, the standard anti-rust thickness of hot-dip galvanizing can be maintained for more than 30 years without repair; in urban or offshore areas, standard galvanized anti-rust coating can be maintained for 15 years without repair;
2. Good reliability: The galvanized layer is combined with the metallurgy of the steel and becomes part of the surface of the steel, making the coating reliable;
3. Strong coating toughness: The galvanized layer of galvanized wire forms a special metallographic structure and can withstand mechanical damage during transportation and use.
Hot Dipped Galvanized Wire Theory
1. Q195 low carbon steel wire hot rolled round wire rod
2. Drawing wire machine
3. High temperature annealing, pickling and rust removal
4. Galvanized
5.Inspection
6. In rolls
7.Package
Hot Dipped Galvanized Wire Parameter:
| Product Name | Hot Dipped Galvanized Wire |
| Material | Low carbon steel Q195 |
| Diameter | BWG5-BWG24 |
| Zinc Rate | 30-360g/m2 |
| Tensile Strength | 30kg-70kg/mm2,,350-550/mm2 |
| Elongation Rate | 10%-25% |
| Weight/Coil | 0.1kg-1000kgs/coil |
| Packing |
1.Plastic inside and hessian outside ; 3.As your request. |
Hot Dipped Galvanized Wire Specification:
| Wire Gauge Size | SWG(mm) | BWG(mm) | metric(mm) |
| 8 | 4.06 | 4.19 | 4.00 |
| 9 | 3.66 | 3.76 | - |
| 10 | 3.25 | 3.40 | 3.50 |
| 11 | 2.95 | 3.05 | 3.00 |
| 12 | 2.64 | 2.77 | 2.80 |
| 13 | 2.34 | 2.41 | 2.50 |
| 14 | 2.03 | 2.11 | - |
| 15 | 1.83 | 1.83 | 1.80 |
| 16 | 1.63 | 1.65 | 1.65 |
| 17 | 1.42 | 1.47 | 1.40 |
| 18 | 1.22 | 1.25 | 1.20 |
| 19 | 1.02 | 1.07 | 1.00 |
| 20 | 0.91 | 0.89 | 0.90 |
| 21 | 0.81 | 0.813 | 0.80 |
| 22 | 0.71 | 0.711 | 0.70 |

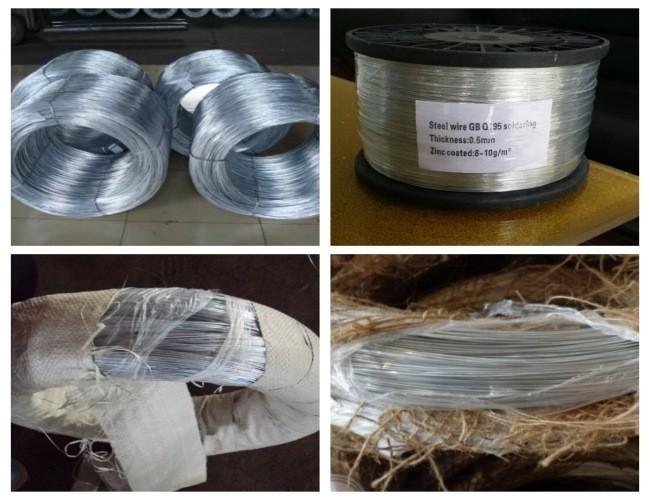

Hot Dipped Galvanized Wire Detail Pictures:
