Galvanized Steel Barbed Concertina Wire Coil BTO-22 450MM OEM
Galvanized Steel BTO-22 450MM Razor Barbed Concertina Wire For Protection
Concertina Razor Wire has continuous spirals which are fasten two razor wire loops together at various intervals with clips. Concertina cross type razor wire enjoys good appearance, practical use and can ensure stronger protection.With beautiful and sharp blades and strong core wire, razor wire has the features of secure fencing, easy installation, age resistance and other properties. It’s widely used in military field, prisons, detention houses, government buildings and other national security facilities.The weaving methods are one main wire, one high quality razor barbed wire; one main wire, twin high quality razor barbed wire; and twin main wire, twin high quality razor barbed wire.
Razor Barbed Concertina Wire Specification:

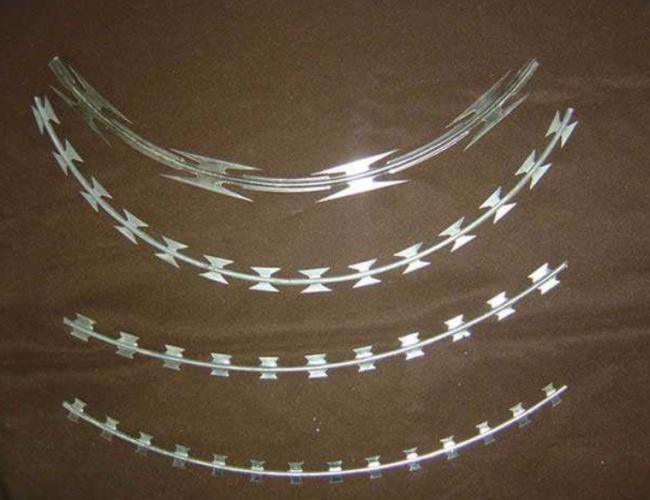

Blade: Steel plate by one-time punching moulding or stainless steel plate by one-time punching moulding
Wire: Hot dipped galvanized metal wire,hot dipped galvanized steel wire or stainless steel wire
Size: BTO-22, BTO-15, BTO-12, CBT-65,CBT-60
Type: Hot dipped galvanzied, Stainless Steel, PVC Coated
Packing: Weaving bag , carton, as customer asking.
| Model | Thickness | Wire Diameter | Length | Width | Spacing |
| BTO-10 | 0.5±0.05mm | 2.5±0.1mm | 12±1mm | 13mm | 26mm |
| BTO-12 | 0.5±0.05mm | 2.5±0.1mm | 12±1mm | 15mm | 26mm |
| BTO-18 | 0.5±0.05mm | 2.5±0.1mm | 18±1mm | 15mm | 33mm |
| BTO-22 | 0.5±0.05mm | 2.5±0.1mm | 22±1mm | 15mm | 34mm |
| BTO-28 | 0.5±0.05mm | 2.5±0.1mm | 28±1mm | 15mm | 34mm |
| BTO-30 | 0.5±0.05mm | 2.5±0.1mm | 30±1mm | 18mm | 34mm |
| CBT-60 | 0.6±0.05mm | 2.5±0.1mm | 60±1mm | 32mm | 96mm |
| CBT-65 | 0.6±0.05mm | 2.5±0.1mm | 65±1mm | 21mm | 100mm |
| Outside Diameter | No.of Loops | Standard Length per Coil | Type | Notes |
| 450 mm | 33 | 8m | CBT-65 | Single coil |
| 500 mm | 41 | 10m | CBT-65 | Single coil |
| 700 mm | 41 | 10m | CBT-65 | Single coil |
| 960 mm | 53 | 13m | CBT-65 | Single coil |
| 500 mm | 102 | 16m | BTO-10.15.22 | Cross type |
| 600 mm | 86 | 14m | BTO-10.15.22 | Cross type |
| 700 mm | 72 | 12m | BTO-10.15.22 | Cross type |
| 800 mm | 64 | 10m | BTO-10.15.22 | Cross type |
| 960 mm | 52 | 9m | BTO-10.15.22 | Cross type |
Razor Barbed Concertina Wire Characteristics:
With beautiful and sharp blades and strong core wire,razor wire has the features of good deterrent effects,nice appearance,easy installation,economical and practical and other properties.
Razor Barbed Concertina Wire Application:

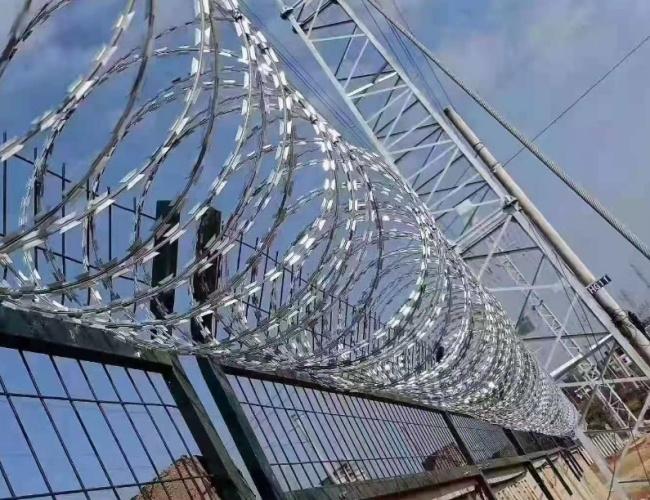

Razor barbed wire is widely used in apartment house,organization units,prisons,frontier fence,military fields and other sites requiring severe fencing and security.
Razor Barbed Concertina Wire Classification:
Razor wire can be classified into concertina coils,straight type razor wire,crossed type and flat type according to the installation models.

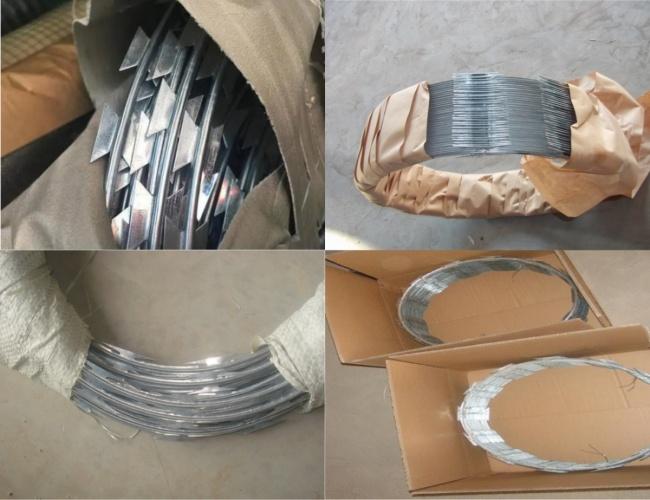

Razor Barbed Concertina Wire Packing:
