Antifinger Galvalume Sheet Steel Coils Metal SGCH Grade
Antifinger Galvalume Sheet Steel Coils Metal SGCH Grade

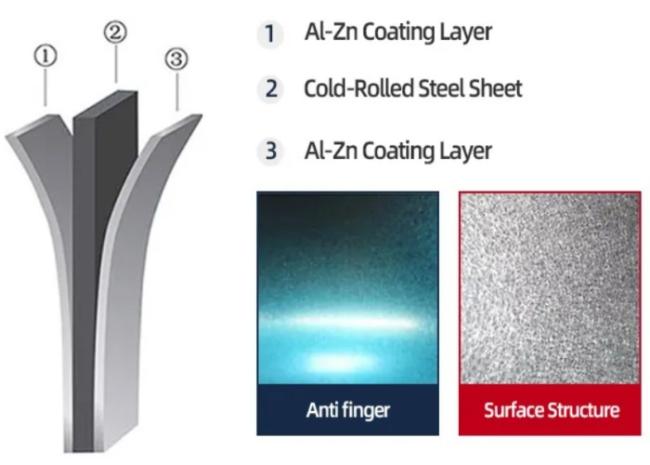

Galvalume steel coils is also called Aluminum-Zinc Alloy Coated Steel,aluminized zinc steel(aluzinc steel),SGLC,The galvalume metal is composed of 55% aluminium, 43.4% zinc and 1.6% silicon solidified at 600 ~C. Its whole structure consists of aluminium-iron-silicon-zinc, forming a compact quaternary crystal alloy.The surface of the galvalume steel sheet is characterized by smooth, flat and gorgeous stars, and its base color is silver white. The special coating structure makes it have excellent corrosion resistance.
Galvalume Steel Coils Details:
| Technical Standard | EN10147, EN10142, DIN 17162, JIS G3302, ASTM A653 |
| Steel Grade | Dx51D, Dx52D, Dx53D, DX54D, S220GD, S250GD, S280GD, S350GD, S350GD, S550GD; SGCC, SGHC, SGCH, SGH340, SGH400, SGH440, SGH490, SGH540, SGCD1, SGCD2, SGCD3, SGC340, SGC340 , SGC490, SGC570; SQ CR22 (230), SQ CR22 (255), SQ CR40 (275), SQ CR50 (340), SQ CR80(550), CQ, FS, DDS, EDDS, SQ CR33 (230), SQ CR37 (255), SQCR40 (275), SQ CR50 (340), |
| Thickness | 0.12-6.00mm,or customer's requirement |
| Width | 600mm-1500mm, according to customer's requirement |
| Type of Coating | Hot Dipped Galvanized Steel(HDGI) |
| Zinc Coating | 10-275g/m2 |
| Surface Treatment | Passivation(C), Oiling(O), Lacquer sealing(L), Phosphating(P), Untreated(U) |
| Surface Structure | Normal spangle coating(NS), minimized spangle coating(MS), spangle-free(FS) |
| Quality | Approved by SGS,ISO |
| ID | 508mm/610mm |
| Coil Weight | 3-20 metric ton per coil |
| Package | Water proof paper is inner packing,galvanized steel or coated steel sheet is outer packing , side guard plate,then wrapped by seven steel belt.or according to customer's requirement |
| Export market | Europe, Africa, Central Asia, Southeast Asia, Middle East, South America, North America, etc |
Galvalume Steel Coils Features:
- Corrosion resistance:When zinc is abraded, aluminum forms a dense layer of alumina that prevents further corrosion of the corrosive material inside.
- Heat resistance:Aluminum zinc alloy steel has good heat resistance and can withstand high temperatures of more than 300 degrees Celsius.
- Thermal reflexes:The heat reflectivity of Al Zn steel plate is very high, which is two times that of galvanized steel sheet.
- Economical efficiency:Since the density of 55% AL-Zn is smaller than the density of Zn, the aluminum-zinc-plated steel sheet is more than 3% larger than the area of the plated steel sheet when the weight is the same and the thickness of the gold-plated layer is the same.
Galvalume Steel Coils Package:
Waterproof paper + polyethylene rush inhibitor, the antirust paper , the ring of defends on inside and outside, steel belt, and the guard plate. We can also pack according to your request details.
Galvalume Steel Coils Appliances:
- Building & Construction: Roofing; Terrace;Window Frame;
- Door: Rolling-up Door;Shutter;Mobile House;
- Interior Decorations:Wall; Door Frame;Steel Structure; Screen; Ceiling;Elevator;Household
- Appliances: Fridge;Washing Machine; Microwave Oven; Air-Conditioner; DuplicatingMachine, etc;
- Transportation: Auto Panel; Interior
