Galvanized Zinc Corrugated Roofing Sheet G550 For Construction Z40 Wave Metal Sheet
Galvanized Zinc Corrugated Roofing Sheet
Galvanized Corrugated Sheet is produced by galvanized coil.The Type indlue decking sheet,wave roofing,antique tile and so on.widely used in warehouse,factory,exhibition center.it can be used both for wall and roof.
Galvanized Zinc Coated Corrugated Steel Sheet Roofing has the excellent decorative properties of traditional clay tiles and has the excellent performance of modern metal tiles. They are light, strong, and durable. It is the current mainstream roofing material. Galvanized metal tiles are suitable for roofing works of pitched roofs of various styles and structures (wood structure, steel structure, concrete structure), the flat-slope transformation of existing buildings, the renovation of old roofs, and the partial decoration of buildings.
Galvanized Steel Roofing Sheet is to prevent corrosion on the surface of the steel sheet and prolong its service life. The surface is a steel sheet with a layer of metallic zinc. T This kind of galvanized steel sheet is called galvanized steel sheet
The Details introduction of Zinc Coated Galvanized Corrugated Steel Roofing Sheet
.
| Product Name | Zinc Coated Galvanized Corrugated Sheet/Galvanized Corrugated Plate |
| Surface Structure | Galvanized big spangle,regular spangle,minimum spangle, zero spangle |
| Type of coating process | Front: double coated&double drying; Back: double coated&double drying;single coated&double drying; |
| Zinc Layer | 40~275g/m2 |
| Thickness | 0.13~1.0mm |
| Width |
750-1250mm(before corrugation) |
| Length | according to customer's requirement. |
| Material | SGCC / DX51D+Z DC51D+Z DX52D+Z DC52D+Z S220GD-S550GD+Z / Q195 / Q345 / Q235 |
| Standard | GB AISI DIN EN JIS ASTM |
| Certificate | ISO9001,BV |
| Coatting Type |
Galvanized, Galvalume, Prepainted coating(PE, SMP, HDP, PVDF) |
| Coating Thickness |
Z40-275; AZ30-AZ150; Top: 15 to 25 um (5 um + 12- 20 um) back: 7 +/- 2 um |
| Process | Hot dipped galvanized |
| Special Use | High-strength Steel Plate |
| Hardness | Soft hard(HRB60),medium hard(HRB60-85),full hard(HRB85-95) |
| Processing Service | Bending, Welding, Decoiling, Cutting, Punching |
| Characteristics | Weather proof;heating insulation;fireproof;anti-rust;sound insulation;long life span:more than 15 years. |
| Application |
Suitable for industrial and civil buildings, warehouses, special buildings, large span steel structure house roof, wall and interior and external wall decoration, etc. |
| Product description | It has the characteristics of light weight, high strength, rich color and lustre, convenient construction, earthquake resistance,fire prevention, rain proof, long life, free of maintenance and so on, and has been widely promoted and applied. |
| Advantages |
1.low foundation cost |
| Package | Water proof paper is inner packing,galvanized steel or coated steel sheet is outer packing, side guard plate,then wrapped by seven steel belt.or according to customer's requirement. |

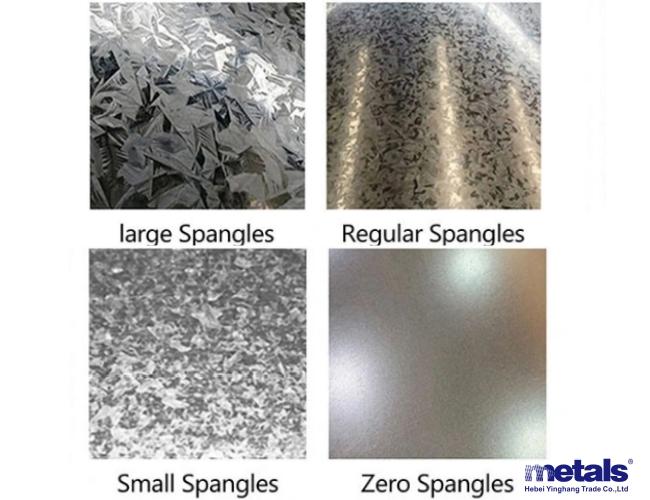

The Available Galvanized Surface Spangle for Corrugated Roofing Sheet

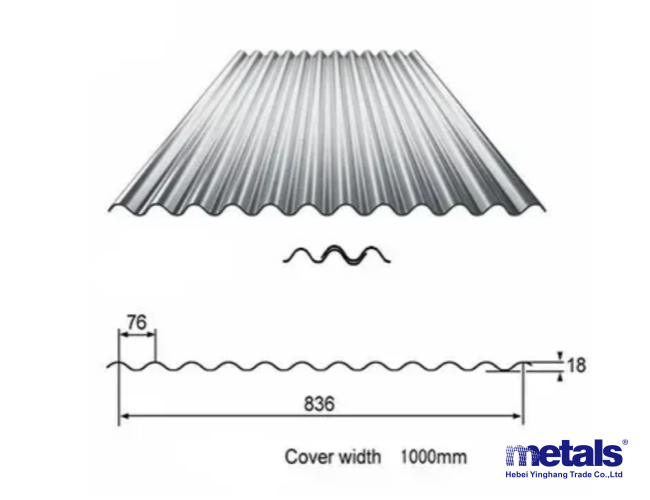

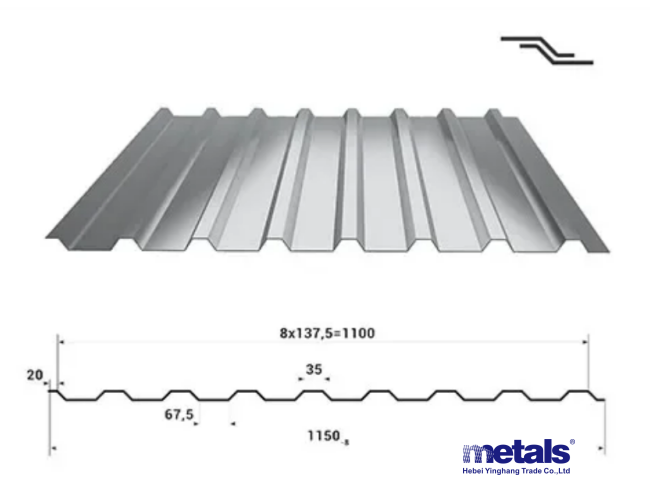

Wave Type of Galvanized Corrugated Roofing Sheet Reference
