Industrial Control Systems 5000V 3050mm Blue Insulation Anti-Interference Cable Wire Harness

5000V 3050mm blue Insulation, anti-interference bipolar cable assembly wire harness

1.Product description

  5000V 3050mm blue Insulation, anti-interference bipolar cable assembly harness composed of wires of two polarities (positive and negative) suitable for transmitting power or signals. With a rated voltage of 5000V, it can operate in high-voltage environments, such as high-voltage power transmission, industrial control systems, and high-voltage equipment. Insulation impedance is 5MΩ, conduction impedance is 3Ω, the materials used are in line with ROHS environmental protection requirements.​

  Feel free to contact with us, if you ever needed to consider your wire harness solution.

2.Product information

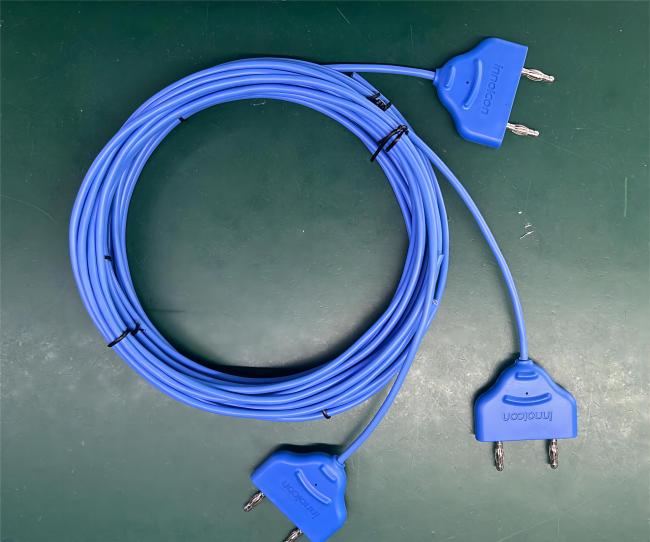

3. Picture of real products

4. Application area

I: High voltage power transmission: In the field of high voltage power transmission, the cable wire harness can used to connect transmission lines, substations, and power distribution equipment, among others. It carries high-voltage power signals to ensure stable and reliable transmission and supply of high-voltage power.

II: Industrial control systems: The anti-interference characteristics of the cable wire harness make it very suitable for industrial control systems. These systems include automated production lines, robot controls, PLC systems, and others. The cable wire harness can provide reliable signal transmission and ensure accurate control and coordinated operation of industrial equipment.

III: High voltage devices: This cable wire harness plays a key role in connecting and powering devices that require large voltages. This includes power transformers, power capacitors, power transmission equipment, and others. Wiring harnesses provide safe electrical isolation and stable signal transmission in high voltage environments.

5. Features

I: Bipolar cable assembly: The cable wire harness contains bipolar cable assembly, that is, wires with two polarities (positive and negative). This design is suitable for the transmission of power or signals, such as DC power or control signals.

II: High voltage class: The cable wire harness has a rated voltage of 5000V and is suitable for high voltage applications. It can safely and reliably carry high voltage power signals.

III: Blue insulation: The cable wire harness is insulated with blue insulation material. The blue insulation design helps to differentiate from other wiring harnesses during installation, maintenance and identification, providing convenience and identification.
