UL2464 16AWG 300V Fork Terminal New Energy Battery Test Equipment Wiring Harness

UL2464 16AWG 300V fork terminal new energy battery test equipment wiring harness

1. Product description

  UL2464 16AWG 300V fork terminal new energy battery test equipment wiring harness has a multi-core structure, including multiple wires and insulation together, suitable for connecting multiple circuits or transmitting multiple signals. The UL2464 16AWG wire has a rated voltage of 300V and is suitable for high voltage circuits in new energy battery test equipment. The design of the harness should take into account bending and distortion during use, so it is necessary to have sufficient bending radius to avoid damage to the harness and signal distortion. In addition, the harness should have good durability and be able to withstand long use and frequent plugging and unplugging operations.

  Feel free to contact with us, if you ever needed to consider your wire harness solution.

2. Product information

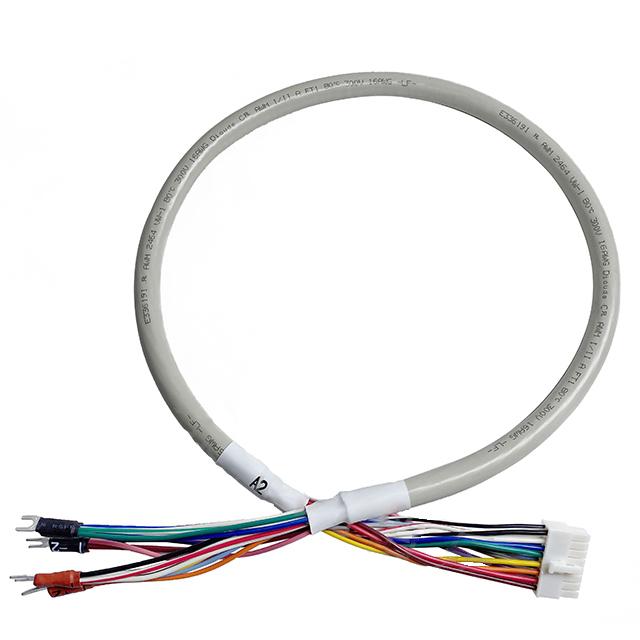

3. Picture of real products

4. Application area

I: Battery testing equipment: New energy battery testing equipment is used to evaluate and test the performance, capacity, cycle life and other parameters of batteries. The UL2464 16AWG 300V harness can be used to connect circuits between the test device and the battery module to transmit power, control signals and data, etc.

II: Electric vehicle testing equipment: The development and testing of electric vehicles requires the use of various testing equipment, such as battery management system testers, electric drive system testers, etc. These devices typically require high voltage, high current circuit connections, and the UL2464 16AWG 300V harness meets these requirements.

III: Energy storage system test equipment: Energy storage system test equipment is used to evaluate and test the performance and efficiency of energy storage systems, such as solar battery packs, wind energy storage systems, etc. The UL2464 16AWG 300V harness can be used to connect circuits between the test equipment and the energy storage system to transmit power and signals.

5. Features

I: Fork terminal connectors: The battery wire harness is equipped with a fork terminal connector, which has a fork shaped metal plug that can be connected to the corresponding socket. The fork terminal connector is designed for easy and fast plug and unplug connection, suitable for installation and maintenance of test equipment.

II: Multi-core structure: The battery wire harness adopts UL2464 standard and has multi-core structure, including multiple wires and insulated together. This design is suitable for connecting multiple circuits or transmitting multiple signals.

III: Durability and anti-interference: The battery wire harness is made of high quality insulation materials, which has good wear resistance, chemical resistance and durability. In addition, the harness may have shielding layers to suppress the influence of external electromagnetic interference on the signal.
