6 Core Electronic Wiring Harness Anti Interference Confirm The Keypad Connection FFC

6 Core Electronic Wiring Harness Anti Interference Confirm The Keypad Connection FFC

1. Product description

  6 core electronic wiring harness anti interference confirm the keypad connection FFC contains 6 wires to meet the signal and power transmission

requirements for keyboard connection. These wires are commonly used for the input and output of keyboard keys and for communication with

other devices.

  The electronic wire harness is designed with planar flexible cable (FFC), which is thin, soft, flexible and foldable. This design makes wiring

harness installation and wiring more flexible and convenient.

  Feel free to contact with us, if you ever needed to consider your wire harness solution.

2. Product information

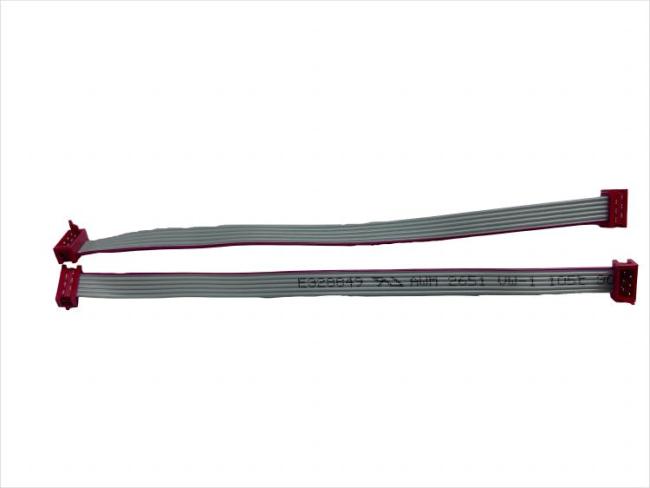

3. Picture of real products

4. Application area

I: Computer and laptop: Electronic wiring harness is used to connect the keyboard to the computer or laptop host. It ensures stable signal transmission and enables users to input commands and data efficiently.

II: Embedded systems: In embedded systems, the keyboard connection harness is used to connect the keyboard to embedded devices, such as embedded computers, single-board computers, intelligent terminals, etc. It provides reliable data input and control functions.

III: Telecommunication equipment: In telecommunication equipment, the keyboard connection harness is used to connect the keyboard with communication equipment, switches, routers, etc. It provides a stable input interface for operations personnel to configure and manage.

5. Feature

I: FFC design: Using planar flexible cable (FFC) design, the electronic wiring harness has the characteristics of thin, soft, flexible and folding, which is convenient for installation and wiring.

II: Anti-interference performance: The electronic wiring harness has excellent anti-interference ability, which can reduce the influence of external electromagnetic interference on the signal and provide reliable signal transmission quality.

III: Efficient transmission: The electronic wiring harness uses quality wires and design to achieve efficient signal transmission and ensure fast and accurate data transmission.
