UL3871 Certified XLPE Material 1X 6AWG 125℃ 3000V High Voltage Tinned Copper Wire

XLPE material 1 X 6AWG 125℃ 3000V high voltage tinned copper wire UL3871

1. Product description

  XLPE material 1 X 6AWG 125℃ 3000V high voltage tinned copper wire UL3871 tinned copper wire is used. The tin plating treatment provides better conductivity and corrosion resistance while reducing the effects of oxidation and corrosion, increasing the life and reliability of the wires. This cable is capable of withstanding temperatures up to 125°C at continuous operating temperatures. This makes it suitable for high-temperature environments, such as applications in thermal industries and high-temperature equipment. XLPE is a high quality insulating material with good electrical properties and heat resistance. It is able to withstand voltage and current in high temperature environments and provides reliable electrical insulation.

  Feel free to contact with us, if you ever needed to consider your wire harness solution.

2. Product information

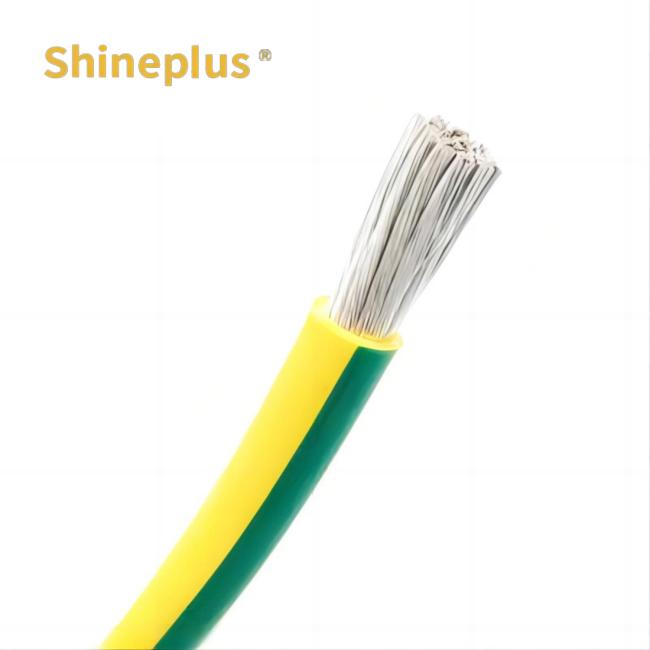

3. Picture of real products

4. Application area

I: These cables are suitable for flexible use under moderate mechanical stress and can be moved freely in dry, wet and damp rooms (but not in the open air) without tensile stress or forced movement. Suitable for use as measuring and control cables in tool machines.

II: High temperature applications: As the cable is able to withstand temperatures up to 125 ° C, it is useful in applications where resistance to high temperature environments is required. For example, it can be used in high-temperature processes, petrochemical equipment, metallurgical equipment, and thermal industries.

5. Feature

I: High voltage rating: The rated voltage of the cable is up to 3000V, which greatly exceeds the conventional 600V voltage rating. This enables the cable to reliably meet the needs of electric vehicle high-voltage battery systems and other high-voltage power systems.

II: High mechanical strength: The cable is designed with multi-strand tin copper core, which has excellent mechanical properties such as tensile resistance and bending resistance. The cables maintain good electrical characteristics even in complex

III: Flame retardant performance: The cable uses XLPE as insulation material, XLPE insulation material has excellent flame retardant performance, can effectively inhibit the spread of fire, improve the passive safety of the whole vehicle. At the same time, it also meets the requirements of relevant electric vehicle industry standards.
