RG316 Silver-Plated RF Connector FAKRA Male To N Type Female HD Camera Video Automotive Wiring Harness

RG316 silver-plated RF connector FAKRA male head to N type female head HD camera video connector automotive wire harness

1. Product description

  RG316 silver-plated RF connector FAKRA male head to N type female head HD camera video connector automotive wire harness the cable adopts RG316 standard, which is a commonly used RF connection cable. It has good radio frequency characteristics, joints and wires are silver plated to enhance electrical conductivity and corrosion resistance, providing more stable and reliable signal transmission. The cable is used for HD camera video transmission. It is capable of transmitting high-resolution video signals, providing clear, delicate image quality, suitable for on-board cameras and other vision applications.

  Feel free to contact with us, if you ever needed to consider your wire harness solution.

2. Product information

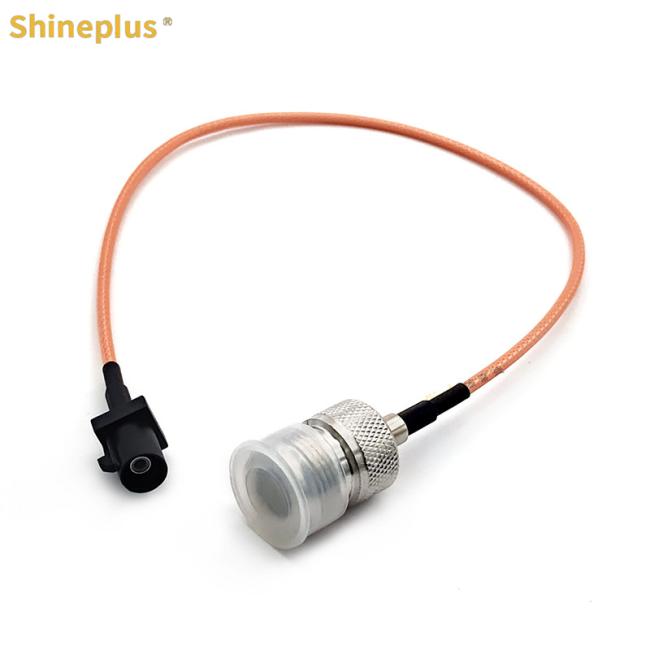

3. Picture of real products

4. Application area

I: Car reverse camera system: This connection cable can be used to connect the car reverse camera system. It connects high-definition video signals transmitted by cameras to the vehicle's display screen, helping drivers get a clear image when reversing and improving driving safety.

II: Automotive surround view system: Connecting wires can be used to connect the automotive surround view system, also known as panoramic camera system. By transmitting video signals from each camera to the vehicle's main display screen, the driver can obtain an all-round view to assist driving and parking operations.

III: Lane monitoring system: Connecting wires can be used to connect to a lane monitoring system that uses cameras to monitor the vehicle's movement on the road. The cable connects the video signal transmitted by the camera to the vehicle's information display, providing functions such as lane departure warning.

IV: On-board monitoring systems: The cable can also be used in on-board monitoring systems, such as security monitoring systems in taxis, buses or logistics vehicles. It transmits video signals from internal or external cameras to the vehicle's monitoring equipment to monitor the situation inside the vehicle or record the driving process.

5. Feature

I: Hd transmission: The automotive wiring harness uses RG316 coaxial cable, with FAKRA male terminal and N-type female head, reliable support 1080p/4K HD video signal transmission.

II: Low signal loss: The conductor of the automotive wire harness is made of silver-plated copper and matched impedance design, which can control the signal loss within 0.5dB/m to ensure clear image transmission.

III: High temperature and pressure resistance: The outer layer of the cable of the automobile wire harness is made of heat-resistant PVC material, which can withstand continuous working temperature up to 105°C, and is suitable for scenarios near high heat sources such as batteries and electronic controls.

IV: Safety certification: The automotive wiring harness has passed UL, IATF 16949 and other industry authority certifications to ensure product quality and safety performance, providing reliable solutions for advanced driving assistance systems such as autonomous driving and ADAS.
