UL20276 2*20PIN double row plastic shell signal converter board signal electronic wiring harness

UL20276 2*20PIN double row plastic shell signal converter board signal electronic wiring harness

1. Product description

  UL20276 2*20PIN double row plastic shell signal converter board signal electronic wiring harness double row plastic shell design, each row has 20 pins, a total of 40 pins; Pin spacing precision design, spacing is 2.54mm, easy to connect with various interface boards or modules. The wire is made of tin-plated oxygen free copper, which has excellent electrical conductivity. The outer layer is PVC insulation layer to provide insulation protection. The working voltage that the harness can withstand is generally below 30V, and the working current can reach about 2A, which meets the requirements of most signal transmission applications. And can work stably in the temperature range of -40°C to +105°C, suitable for all kinds of harsh environmental conditions.

2. Product information

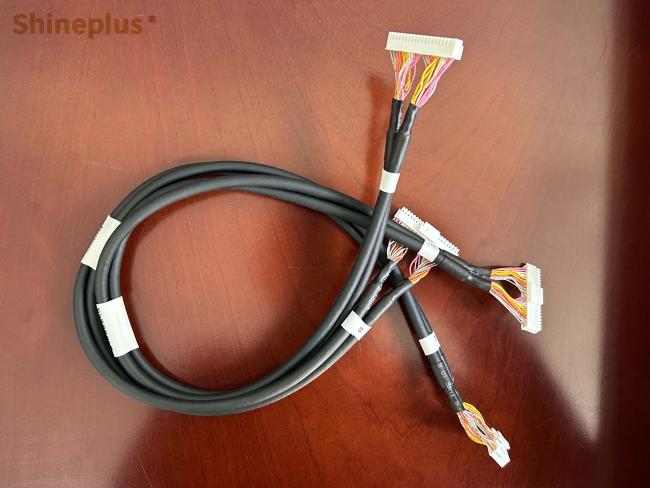

3. Picture of real products

4. Features

I: Signal transmission.

II: Using standardized manufacturing process, stable and reliable quality, long service life, high cost performance.

III: Optional with EMI/RFI shielding layer, anti-electromagnetic interference ability.

5. Product application

I: Industrial automation device.

II: Test and measurement equipment.

III: Transport and communication facilities.

IV: Energy and power equipment.
