Customized Mineral Fire Protection Cable BTLY 0.6 1KV 5*16 Aerial Insulated Radiation Proof Soft Cable

Customized mineral fireproof cable BTLY 0.6 1KV 5*16 overhead insulated flexible cable

1.Product description


  BTLY cable is a cable with a soft multi-strand construction designed to make laying easier. This mineral fireproof cable is rated at 0.6KV 1kV and is suitable for general power transmission and distribution systems. Its conductor cross-section is 16km2 with 5 cores, making it suitable for a wide range of application scenarios.The BTLY cable has an insulation voltage of 4kV, which ensures the cable's stable operation in high-voltage environments. In addition, the mineral fireproof cable has passed the GB/T 5468-2017 combustion test, indicating that it has good combustion performance. It also meets the fire resistance requirements of the GB 12666.1-2008 standard, ensuring stability in fire situations.

  Feel free to contact with us, if you ever needed to consider your wire harness solution.

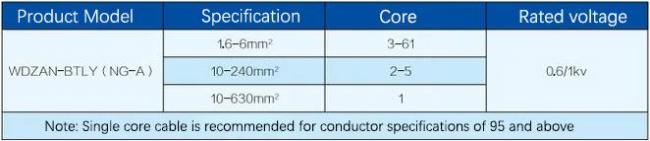

2.Product information

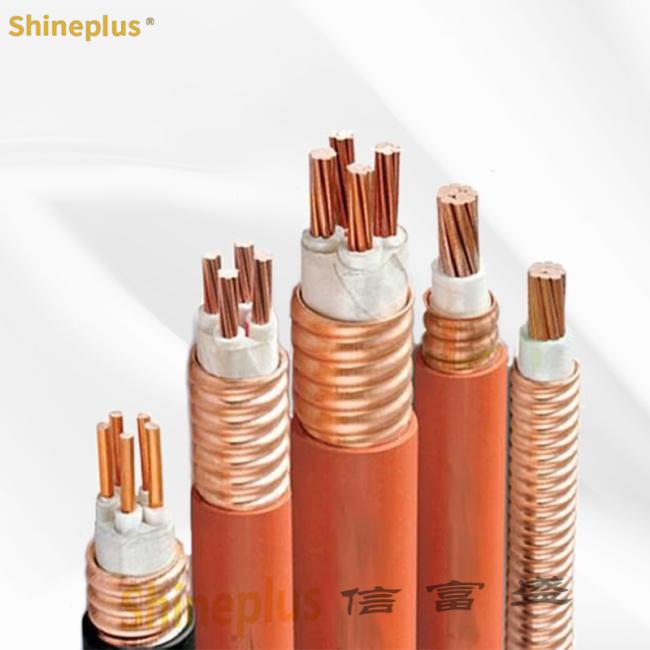

3. Picture of of product



4. Application area
The BTLY cable can be used for power systems for important buildings and underground works,electrical equipment in factories, ports and other industrial sites,railways, subways and other transport infrastructure use electricity,power plant, substation and other power system engineering and electricity for military engineering and national defense facilities.

5. Feature

I: Antiseptic insulation: The metal sheath of BTLY insulated (flexible) mineral insulated refractory cable has this corrosion resistance. For most devices, no additional protective measures are required. Even where the metal sheath of the cable is prone to chemical corrosion or industrial pollution, the cable is still safe with the protection of plastic outer sheath.

II: High temperature resistance: Short time or extraordinary period, the mineral fire cable can be close to the melting point of copper 1083℃ work.

III: Radiation protection, long life: The inorganic materials used in BTLY cable are radiation resistant, can ensure the stability of the cable, long life and durability, can be applied to nuclear power and other fields.
