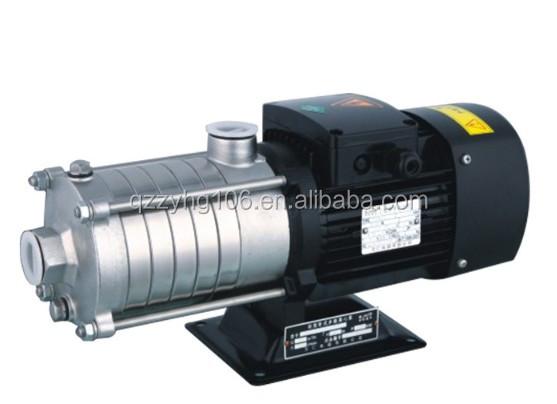

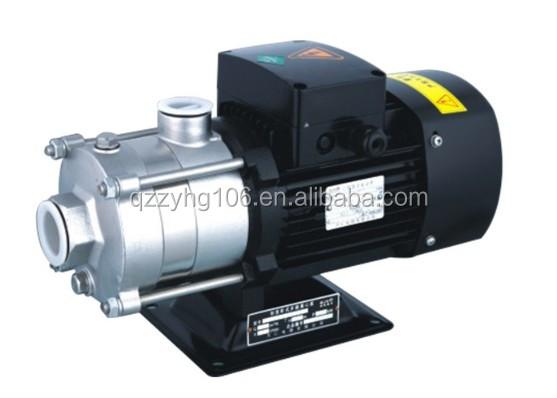

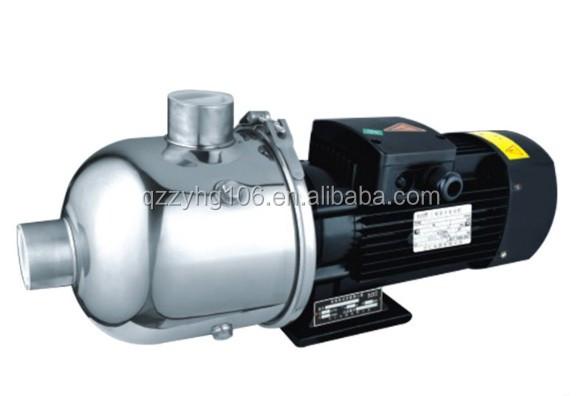

Chl Industrial Horizontal Multistage Centrifugal Pump Booster Electric Water Pump SS304

CHL smoothly horizontal multistage centrifugal garden water pump

The product is suitable for liquids with low viscosity, neutrality, non-explosive properties and no solid particulate fibers. The liquid to be transported cannot be chemically corrosive to the pump material. (Oil or oil-based liquids can be delivered with a special type of pump);

  The circulation of the air conditioning system;

  cooling system;

  Water treatment (purification of water);

  Industrial cleaning system;

  Transport, circulation and lifting of liquids;

  Hot and cold water;

  Food, beverage, agriculture and other ingredient systems;

  Scope of application:

  Medium temperature: normal temperature type -15 ° C ~ +70 ° C; hot water type -15 ° C ~ +110 ° C;

Flow range: 0.5 ~ 28M3 / h;

  Maximum pressure: 10bar;

  Medium pH range: pH 5 ~ 9;

  Maximum ambient temperature: +40 ° C;

Motor:

* Full -enclosed air cooled type motor 2-pole
*Protection class: IP55
*Insulation class: F
*Standard voltage, 50Hz: 1x220-240V
                             3x220-240V/380-415V
*Standard voltage, 60Hz: 1x220-240V
                             3-220-240V/380-415V
*Single phase motor(max): 2.4kw
