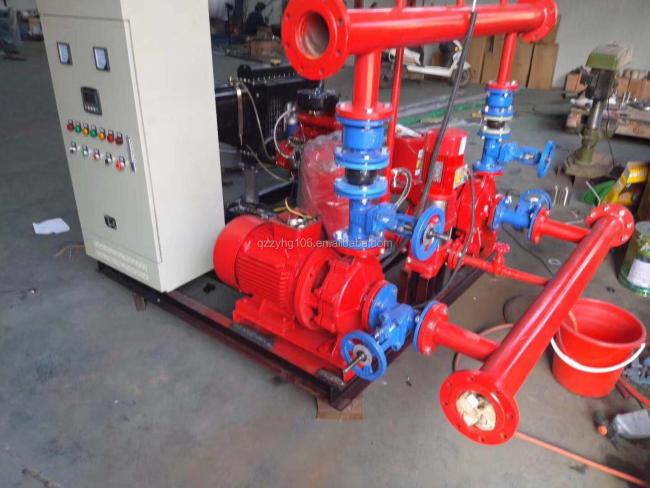

Fire fighting water pump diesel fire pump Horizontal Single Stage Electric Drive Fire Pump
Price:
$10,000.00/pieces 1-4 pieces
MOQ:
Negotiable
Delivery Time:
Negotiable
Brand:
ZY
Product Description
Product name :
Fire fighting water pump diesel fire pump Engine Centrifugal Water Pump
Consist of main end suction pump driven by electrical motor,stand by end suction diesel pump driven by diesel engine&vertical jockey(maintenance)pump that all are assembled with discharge line accessories,as well as connected with skid mounted control panel.
For example:
| Fire Fighting Equipment Model | ZY200-120 | ZY350-120 | ZY500-120 |
| Color | Fire Fighting Red Color | ||
| Chasis | Steel Base with 8hours integrated fuel tank for Diesel Engine | ||
| Diesel Engine Model | YD480D | YD480D | YD4100D |
| HP | 38 | 38 | 73 |
| Working RPM | 3000 RPM | 3000 RPM | 3000 RPM |
| Main Water Pump Model | XA40/26 | XA50/26 | XA65/26 |
| Main Water Pump Inlet | 2.5" | 2.5" | 3" |
| Main Water Pump Outlet | 1.5" | 2" | 2.5" |
| Main Water Pump Seal | Mechanical Seal | Mechanical Seal | Mechanical Seal |
| Main Water Pump Flow | 200 GPM | 350 GPM | 500 GPM |
| Main Water Pump Pressure | 120 PSI | 120 PSI | 120 PSI |
| Coupling type | Flexible (No clutch) | Flexible (No clutch) | Flexible (No clutch) |
| Jockey Pump model | Vertical Multistage Pump with electric motor | ||
| Jockey Pump Flow | 8 GPM | 8 GPM | 20 GPM |
| Jockey Pump Pressure | 120 PSI | 120 PSI | 120 PSI |
| Jockey Pump Seal | Mechanical Seal | Mechanical Seal | Mechanical Seal |
| Jockey Pump Frequency | 60 HZ | 60 HZ | 60 HZ |
| Jockey Pump Voltage | 110/220V | 110/220V | 440V |
| Jockey Pump Phases | 1 Phase | 1 Phase | 3 Phase |
| Jockey Pump PSI activation point | 90 PSI | 90 PSI | 90 PSI |
| Main Diesel Pump PSI activation point | 60 PSI | 60 PSI | 60 PSI |
Packing:
