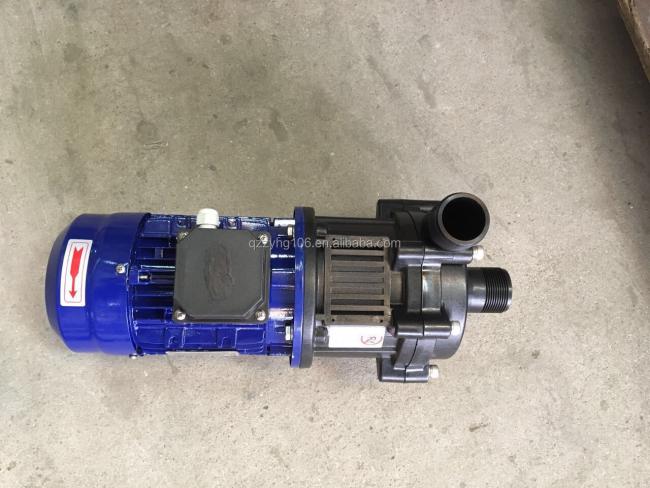

MPH Magnetic drive pump liquid centrifugal pump Centrifugal Chemical Water Pump
Magnetic drive pump liquid centrifugal pump Centrifugal Chemical Water Pump MPH
Introduction:
• use magnetic drive, no shaft seal design, pump body fully sealed.
• use FRPP and PVDF material injection molding, suitable for most chemical acid base liquid delivery.
• impeller and magnet integrated injection molding, in high-speed operation and high temperature is not easy to damage.
• this series of pumps because of its innovative design of resistance to idling, the magnetic pump running without water for a long time without damage, improve product durability. Pump bearings are made of silicon carbide, ceramic and titanium materials, which can meet the needs of different workplaces
DATA:
| Working Principle: | Centrifugal |
| Main applications: | Chemical Industry, Pharmacy, Acid Cleaning, Farm Chemicals,waste water treatment,etc. |
| Driver: | Electric |
| Max.permissible fluid temperature | 200°C(392°F) |
| Type of connection: | Flange, Thread, Quick coupled |
| Installation position: | Horizontal. |
| Casing parts material: | PTFE linning |
| Shaft seal type: | Mechanical seal |
| Maximum drive rating: | 37KW |
| Maximum caliber: | 125/100mm (5"/4") |
| Maximum flow: | 120m3/h |
| Maximum discharge-side pressure | 76m |
Packing:
