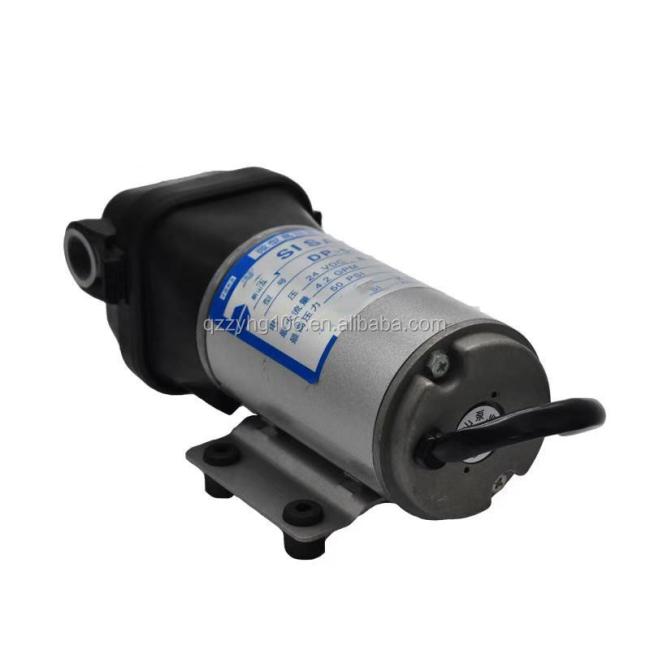

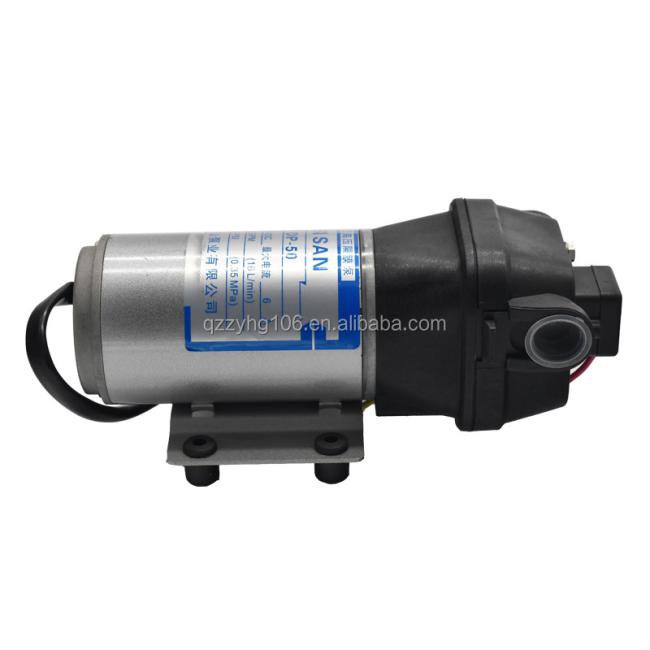

DP-35 high pressure diaphragm water pump
DP-35 high pressure diaphragm water pump
Introduction:
1. DP high pressure booster water pump small diaphragm water pump12V 24V DC water pump
is applied to convey water and low corrosion chemical, medium temperature can reach 60 °C(140°F).
2. Max. pressure is 150psi and Max. flow rate is 16L/min.
3. It is low noise, high pressure, excellent self-priming 5 m(16.4ft) and easy dismantling.
4. Works with 12V or 24V. Safe low voltage, ensures personal safety. AC220V can be customized
5. Widely used in household water booster and car wash, sea water desalination for ship, also for water purification system, filter, spray equipment, general industrial equipment, chemical metering, hygienic, pollution control, printing.
DATA:
| Model | Voltage | Power (W) | Current(A) | Max Pressure (PSI) | Max Flow (L/Min) | Max Suction (M) | weight(KGS) |
| DP-35 | 24V | 40 | 4.8 | 35 | 12.0 | 5 | 2.8 |
| 12V | 40 | 7.0 | 35 | 9.5 | 5 | 2.8 | |
| DP-50 | 24V | 65 | 6.0 | 50 | 16.0 | 5 | 2.8 |
| 12V | 65 | 12.0 | 50 | 16.0 | 5 | 2.8 | |
| DP-60 | 24V | 40 | 3.0 | 60 | 5.0 | 5 | 2.8 |
| 12V | 40 | 6.0 | 60 | 5.0 | 5 | 2.8 | |
| DP-100 | 24V | 10 | 1.1 | 100 | 1.2 | 5 | 2.8 |
| 12V | 10 | 2.2 | 100 | 1.2 | 5 | 2.8 | |
| DP-125 | 24V | 10 | 1.0 | 125 | 1.0 | 5 | 2.8 |
| 12V | 10 | 2.0 | 125 | 1.0 | 5 | 2.8 | |
| DP-130 | 24V | 15 | 1.2 | 130 | 1.7 | 5 | 2.8 |
| 12V | 15 | 2.2 | 130 | 1.7 | 5 | 2.8 | |
| DP-150 | 24V | 40 | 4.0 | 150 | 5.3 | 5 | 2.8 |
| 12V | 40 | 8.0 | 150 | 5.3 | 5 | 2.8 |

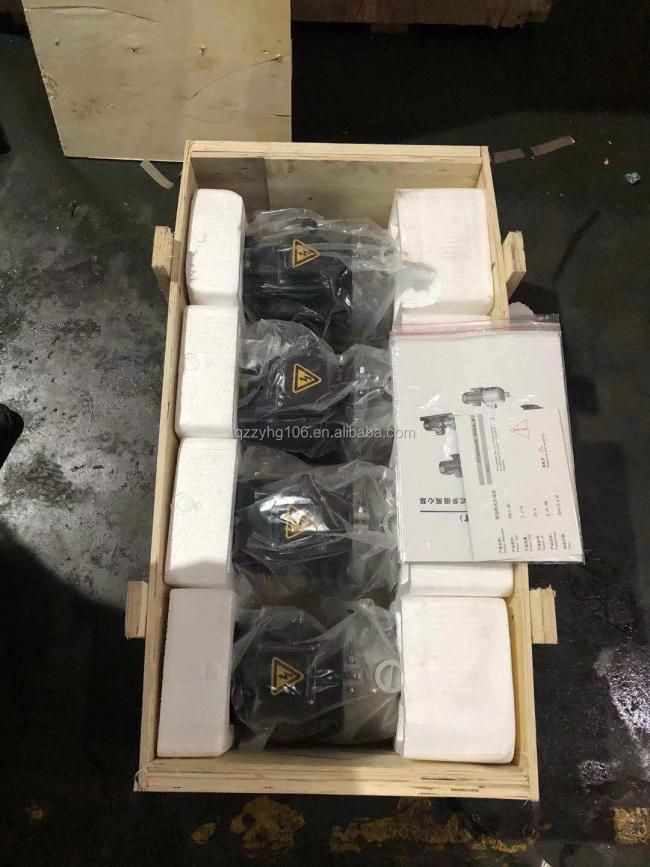

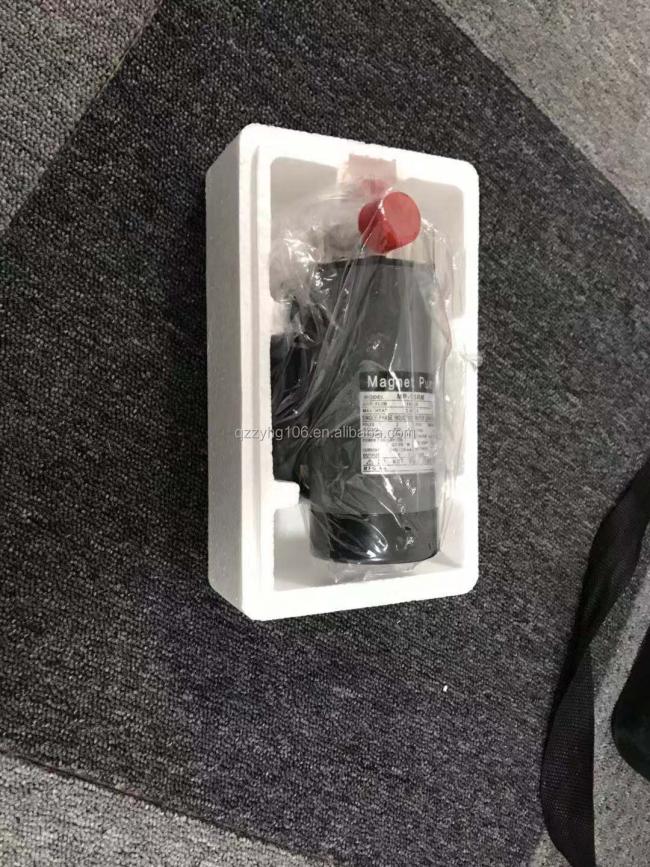

Packing:
